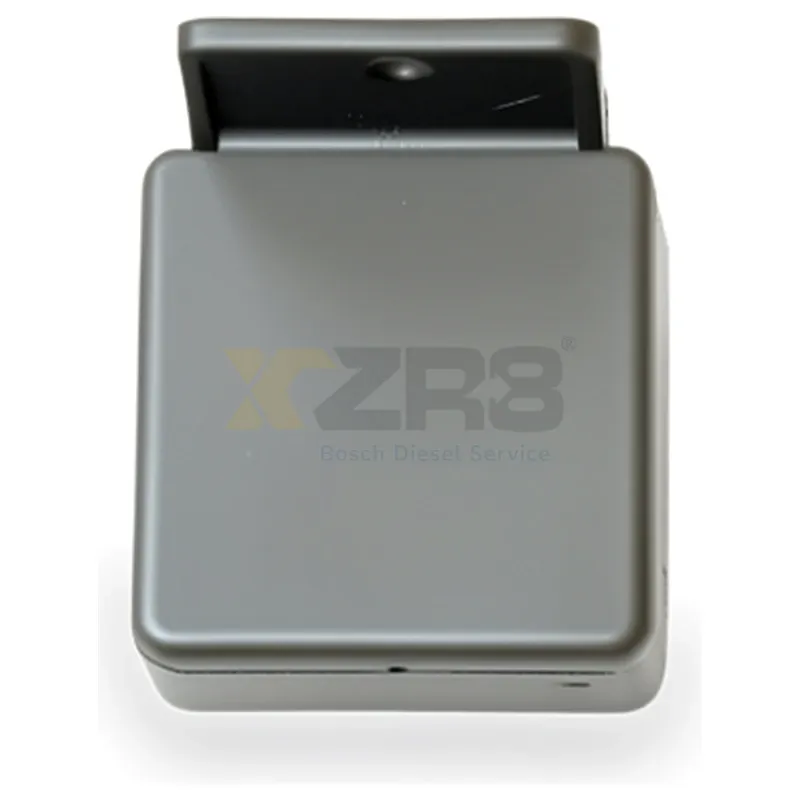

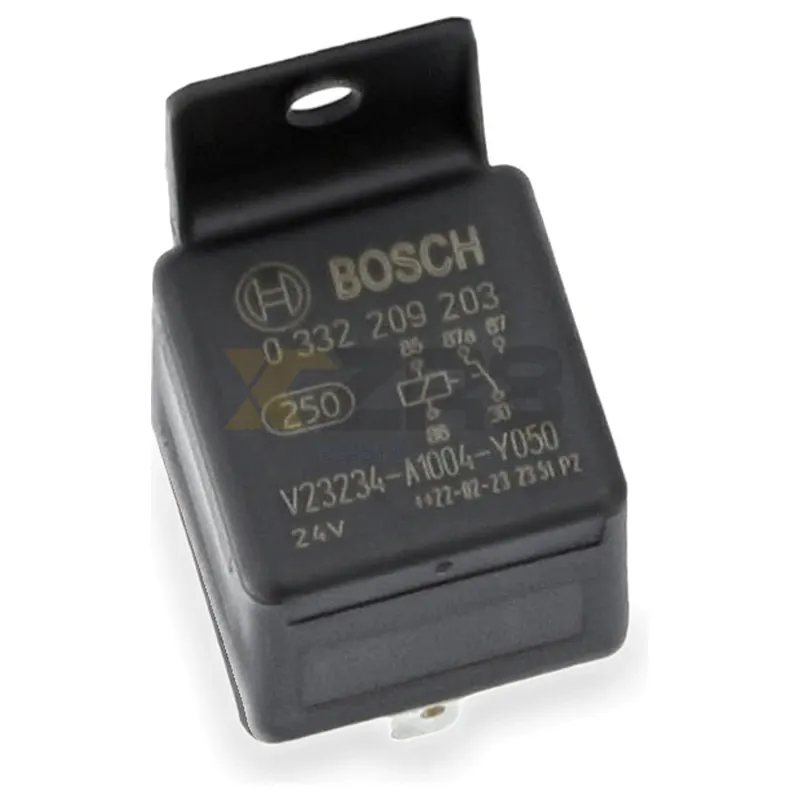

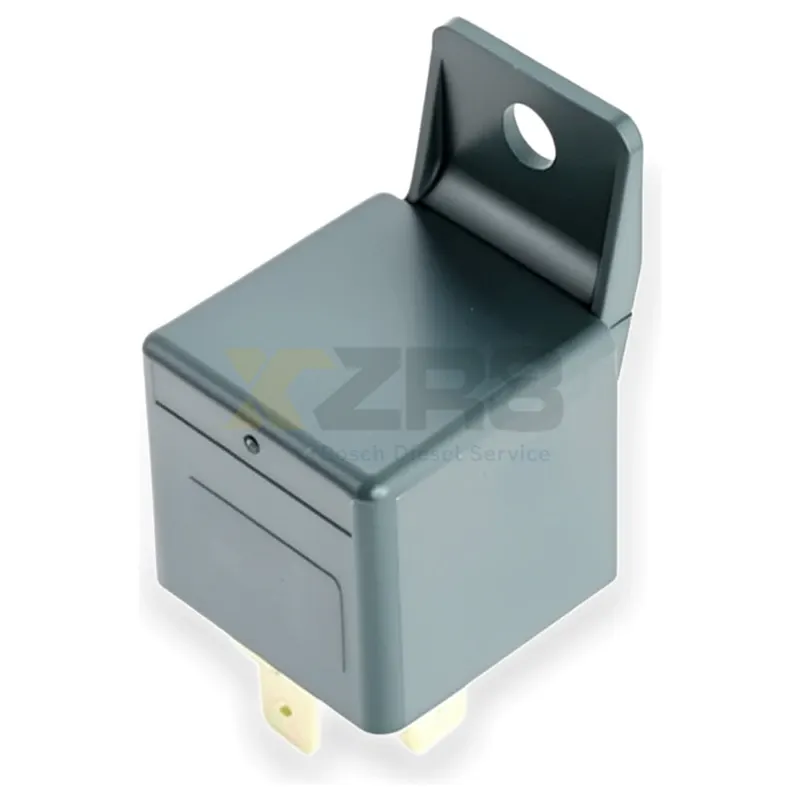

Bosch 0332209203 Mini Relay 24V SPDT
Express Free Shipping
3-Year Factory Warranty
90-Day Hassle-Free Returns
24/7 Dedicated Support
| Coil Voltage | 24V DC |
| Contact Configuration | SPDT (Changeover), 5-Pin |
| contact_rating_no | 20A at 24V DC |
| contact_rating_nc | 10A at 24V DC |

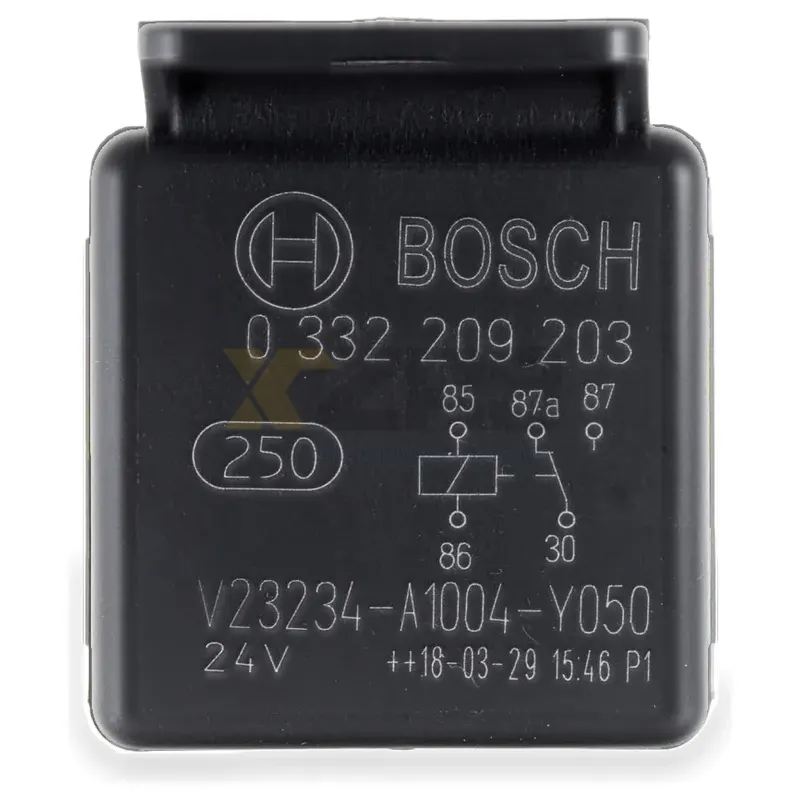

| terminal_layout | ISO Mini, Terminals 30, 85, 86, 87, 87A |
| coil_suppression | Integrated Freewheeling Diode |
| Operating Temperature | -40°C to 85°C |
| Ingress Protection | IP5K4 |
| Mounting Type | Fixed Bracket |
| Contact Material | Silver Alloy |
| Relay Type | Mini ISO High Current |
Manufacturer No.
0332209203V23234-A1004-Y050V23234-A1004-X050
OEM Part No.
000542251900154510051431781207783775613152011815902471298EE
Interchange No.
4RD003520-0910986332203BCH-0332209203RBS0332209203
Fitment Vehicles
Mercedes-Benz 709 (1986-1996)Mercedes-Benz 609Scania P-G-R-T SeriesVolvo TrucksHeavy Duty Commercial Vehicles 24V Systems
Electrical And Electronic Systems - Industrial Encyclopedia
Genuine Bosch 0332209203 24V DC 5-pin SPDT mini ISO relay with diode suppression, rated 20A NO/10A NC, operating temperature -40°C to 85°C, IP5K4 protection, for heavy-duty truck electrical systems.
