What are the technical specifications of 034g7902-danfoss-electronic-expansion-valve-ets24c?

Key technical specifications of Danfoss 034G7902 ETS 24C Electronic Expansion Valve: valve_type: Electric Expansion Valve (Stepper Motor); series: ETS Colibri; model: ETS 24C; inlet_connection: Solder ODF 22mm (7/8"); outlet_connection: Solder ODF 22mm (7/8"); flow_direction: Bi-flow.

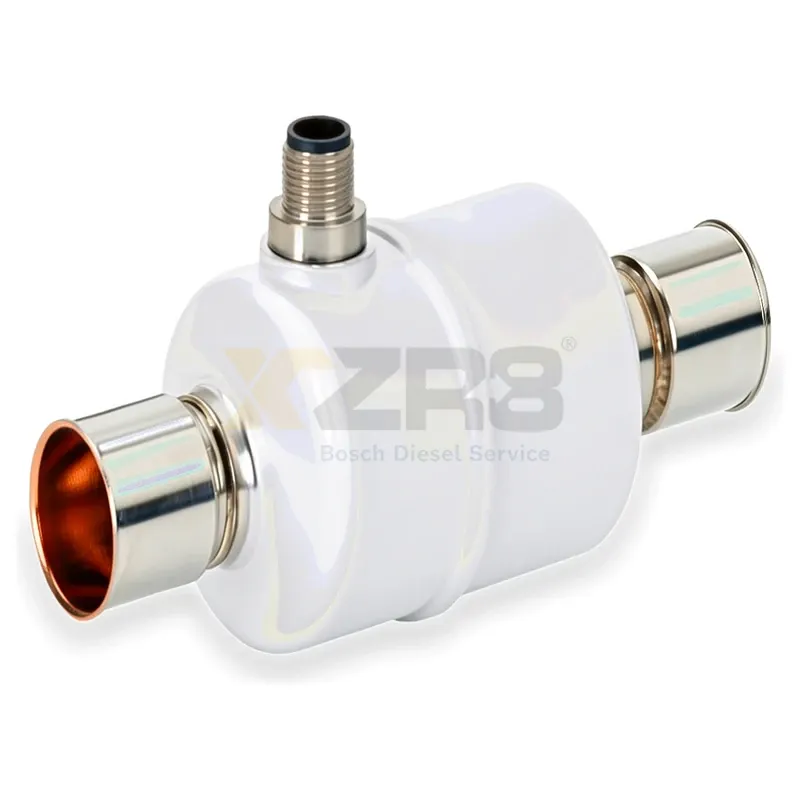

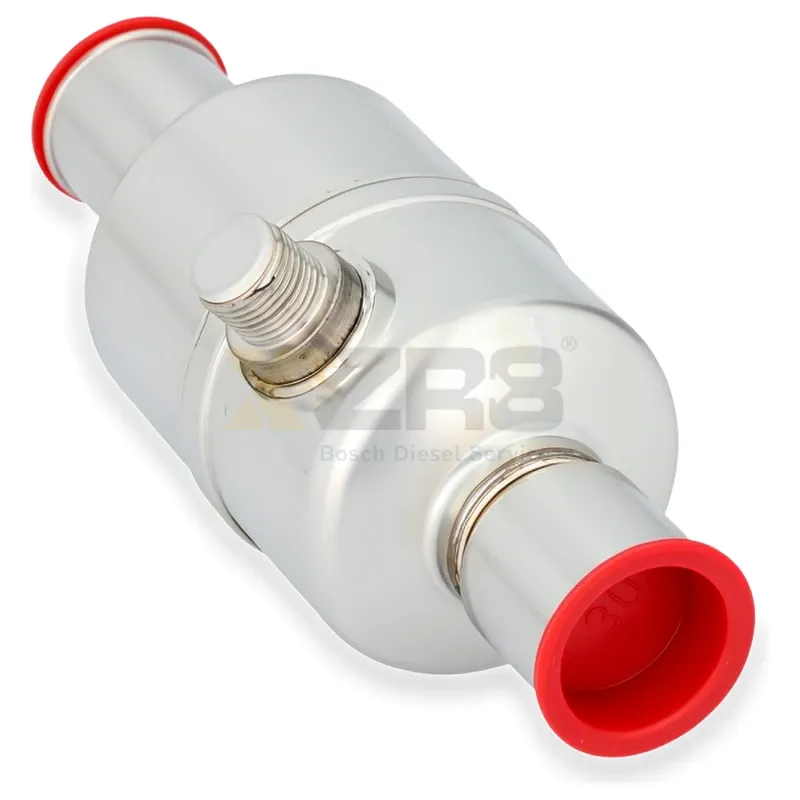

Danfoss 034G7902 ETS 24C Electronic Expansion Valve - Image 1

1 / 2

Danfoss 034G7902 ETS 24C Electronic Expansion Valve

Q: What are the OEM and cross-reference part numbers for 034G7902?

The OEM and interchange cross-reference numbers for Danfoss 034G7902 ETS 24C Electronic Expansion Valve include: 034G7912, 034G7900, 034G7901, 034G7502.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Valve Type	Electric Expansion Valve (Stepper Motor)
Series	ETS Colibri
Model	ETS 24C
Inlet Connection	Solder ODF 22mm (7/8")
Outlet Connection	Solder ODF 22mm (7/8")
Flow Direction	Bi-flow
Body Geometry	Straightway
Max Operating Temperature	95°C (203°F)
Max Working Pressure	50 bar (725 psi)
Compatible Oil Pressure Range	AB, MO, PAG, POE, PAO, PVE, Oil-free
Controller Compatibility	Danfoss EKE 1A, EKE 1B, EKE 1C, MCX 061V, MCX 152V
Weight	0.392 kg
Country of Origin	Denmark

Manufacturer No.

034G7902

Interchange No.

034G7912034G7900034G7901034G7502

Cooling System - Industrial Encyclopedia

OEM specification 24V stepper motor electronic expansion valve with 7/8" ODF connections, bi-flow capacity, compatible with multiple refrigerants and oils for commercial refrigeration.
