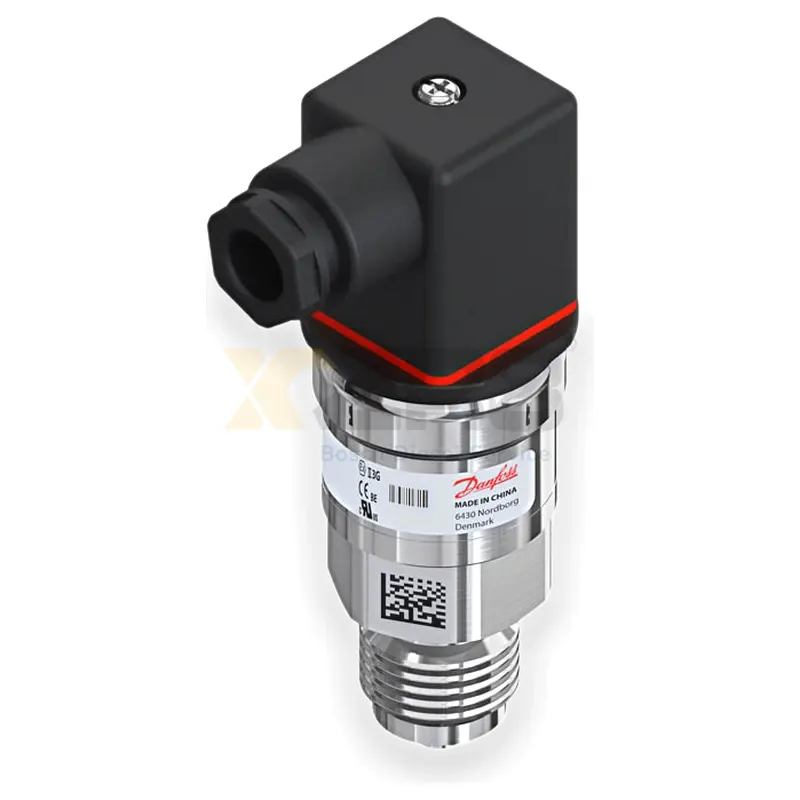

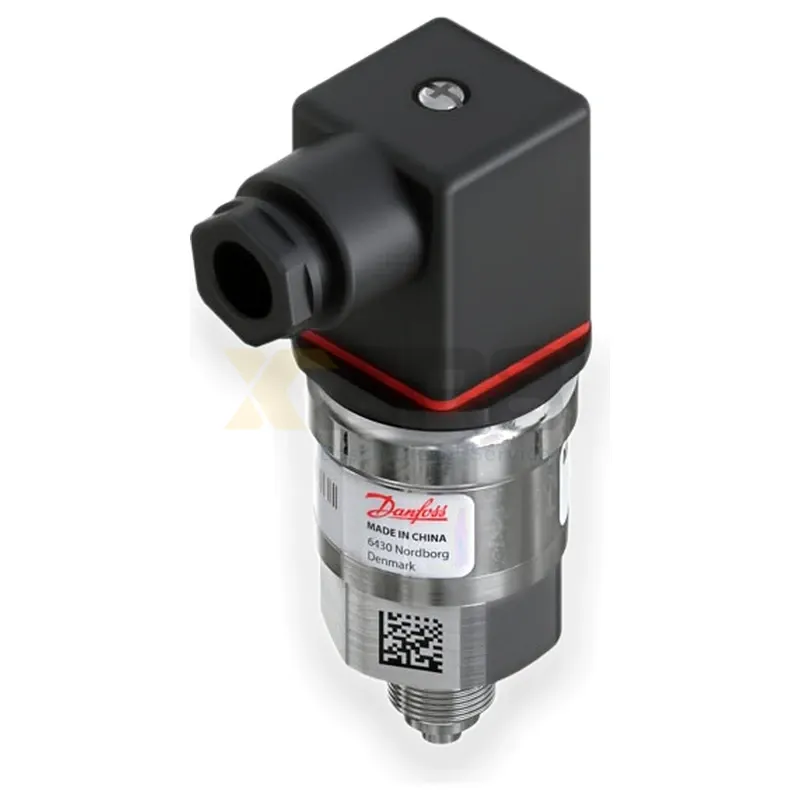

Danfoss 060G1367 Pressure Transmitter MBS 3100
Express Free Shipping
3-Year Factory Warranty
90-Day Hassle-Free Returns
24/7 Dedicated Support
| Pressure Range | 0-4 bar (0-58 psi) |
| Pressure Reference | Gauge (relative) |
| Output Signal | 4-20 mA |
| Supply Voltage | 10-32 VDC |
| Pressure Connection | G 1/4 (EN 837) |
| Electrical Connection | Angular connector Pg11 (EN 175301-803-A) |
| Temperature Range | -40°C to 85°C |
| Enclosure Code | IP65 |
| Vibration Resistance Performance | High, marine approved |
| EMI ESD Protection | High degree |
| Marine Approvals | LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS |
| Processing Specification | MBS 3300-1611-A6AB04-0 |
Manufacturer No.
060G1367MBS 3100-1611-6AB04MBS 3300-1611-A6AB04-0
Interchange No.
MBS3100060G1367MBS 3100 060G1367
Electrical And Electronic Systems - Industrial Encyclopedia
OEM Danfoss MBS 3100 pressure transmitter 0-4 bar 4-20mA output G1/4 connection IP65 rated for marine and industrial pressure monitoring systems.
