Which engines does part 06e103547ad-audi-crankcase-vent-valve fit?

Audi 06E103547AD Crankcase Vent Valve Assembly fits the following engines: Audi 3.0 TFSI V6 (EA837), Volkswagen 3.0 TFSI V6 (EA837).

What are the OEM and cross-reference part numbers for 06E103547AD?

The OEM and interchange cross-reference numbers for Audi 06E103547AD Crankcase Vent Valve Assembly include: 06E103547AD, 06E103547AF, 06E103547N, LOS179, V104065, CB0046, 06E103547P, 06E103547E, 06E103547L, 06E103547T.

What are the technical specifications of 06e103547ad-audi-crankcase-vent-valve?

Key technical specifications of Audi 06E103547AD Crankcase Vent Valve Assembly: part_name: Crankcase Ventilation Oil Separator with PCV Valve; engine_family: EA837 3.0 TFSI V6; regulation_set_point: 30-50 mbar; housing_material: PA66-GF30 (Glass-Fiber Reinforced Polyamide); operating_temperature_range: -40 to 140 °C; connection_type: Quick-connect hose fittings (3 ports).

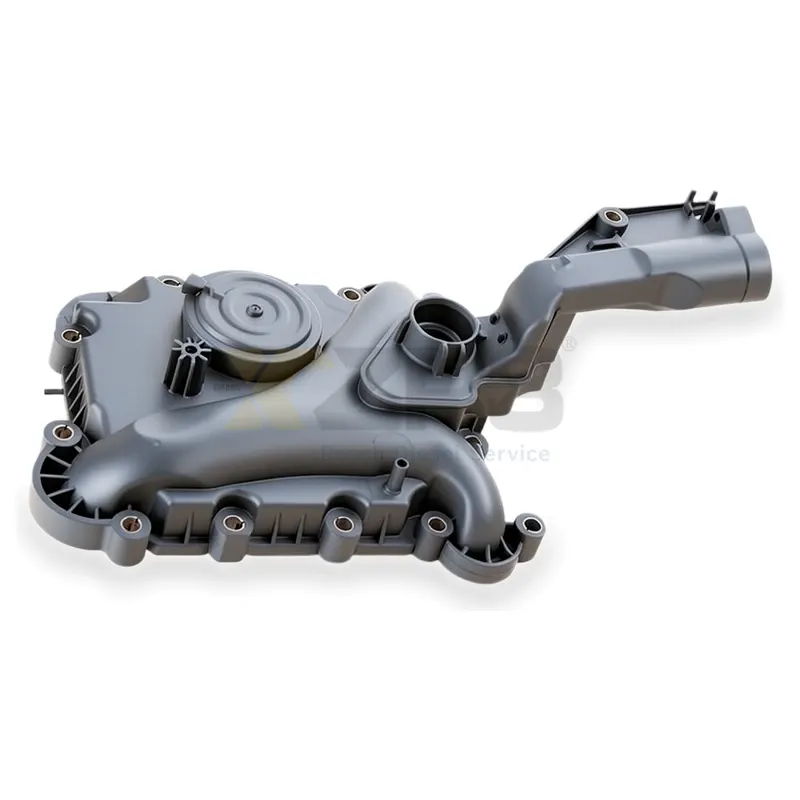

Audi 06E103547AD Crankcase Vent Valve Assembly - Image 1

1 / 2

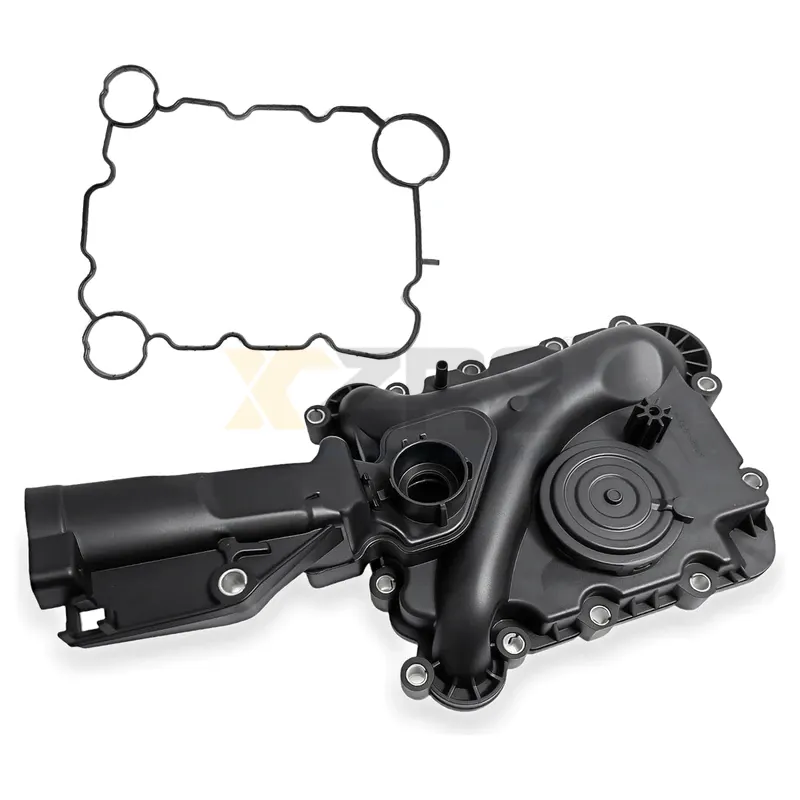

Audi 06E103547AD Crankcase Vent Valve Assembly

Q: Which equipment and machinery is 06e103547ad-audi-crankcase-vent-valve compatible with?

Audi 06E103547AD Crankcase Vent Valve Assembly (06e103547ad-audi-crankcase-vent-valve) is compatible with: Audi A4 (B8) 2008-2016, Audi A5 (8T) 2008-2017, Audi A6 (C7) 2011-2018, Audi A7 (4G) 2011-2018, Audi A8 (4H) 2010-2017, Audi Q5 (8R) 2012-2017, Audi Q7 (4M) 2015-2019, Audi S4 (B8) 2010-2016, Audi S5 (8T) 2010-2017, Audi S6 (C7) 2012-2018.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Part Name	Crankcase Ventilation Oil Separator with PCV Valve
Engine Family	EA837 3.0 TFSI V6
Regulation Set Point	30-50 mbar
Housing Material	PA66-GF30 (Glass-Fiber Reinforced Polyamide)
Operating Temperature Range	-40 to 140 °C
Connection Type	Quick-connect hose fittings (3 ports)
Diaphragm Material	Fluorocarbon Rubber (FKM)
Superseded Parts	06E103547N, 06E103547AF, 06E103547AE

Manufacturer No.

06E103547AD06E103547AF06E103547N06E103547AE06E103547AH06E103547AK

OEM Part No.

06E103547AD06E103547AF06E103547N

Engine Part No.

Audi 3.0 TFSI V6 (EA837)Volkswagen 3.0 TFSI V6 (EA837)

Interchange No.

LOS179V104065CB004606E103547P06E103547E06E103547L06E103547T

Fitment Vehicles

Audi A4 (B8) 2008-2016Audi A5 (8T) 2008-2017Audi A6 (C7) 2011-2018Audi A7 (4G) 2011-2018Audi A8 (4H) 2010-2017Audi Q5 (8R) 2012-2017Audi Q7 (4M) 2015-2019Audi S4 (B8) 2010-2016Audi S5 (8T) 2010-2017Audi S6 (C7) 2012-2018Audi S8 (4H) 2012-2017

Engine System - Industrial Encyclopedia

Genuine OEM crankcase ventilation oil separator with integrated PCV valve for Audi 3.0L TFSI V6 engines. Direct replacement for part numbers 06E103547AF and 06E103547N.
