| Rated Voltage | 12V |
| Rated Power | 1.4 kW |
| Starter Type | Direct Drive (DD) |
| Series | SD300 |
| Pinion Teeth Count | 9 |
| Pinion Outer Diameter | 25.4 mm |
| Rotation Direction | Clockwise (CW) |
| Mounting Flange Diameter | 68 mm |
| Mounting Hole Diameter | 10 mm (unthreaded) |
| Drive End Housing Boss Thread | 1/2-13 UNC |
| Lester Number | SM3838 |
| Motor Type | 10MT |
Manufacturer No.
104553001045530110455305104553061045530810455309104553101045531110455312104553141045531510455316SD300
OEM Part No.
10455300104968711988711199823419984521998467199858019985911107237110724211072471107248110725911072601107301110730211073061107320110733611073701107374110739111073991107400110749611075961108283110836111083631108365110836611083671108375110838011083911108439110847711084791894139
Engine Part No.
GM 5.7L V8GM 5.0L V8GM 4.1L V6GM 3.8L V6
Interchange No.
SM3838SR526NSR526X3838N1102161107781110842711084281108429DFJ021024
Fitment Vehicles
Chevrolet Corvette 1984-1987Chevrolet Camaro 1984-1987Cadillac DeVille 1980-1985Pontiac Firebird 1982-1987GMC Truck 1982-1987Buick Regal 1982-1987Jeep Grand Wagoneer 1984-1986
Engine System - Industrial Encyclopedia

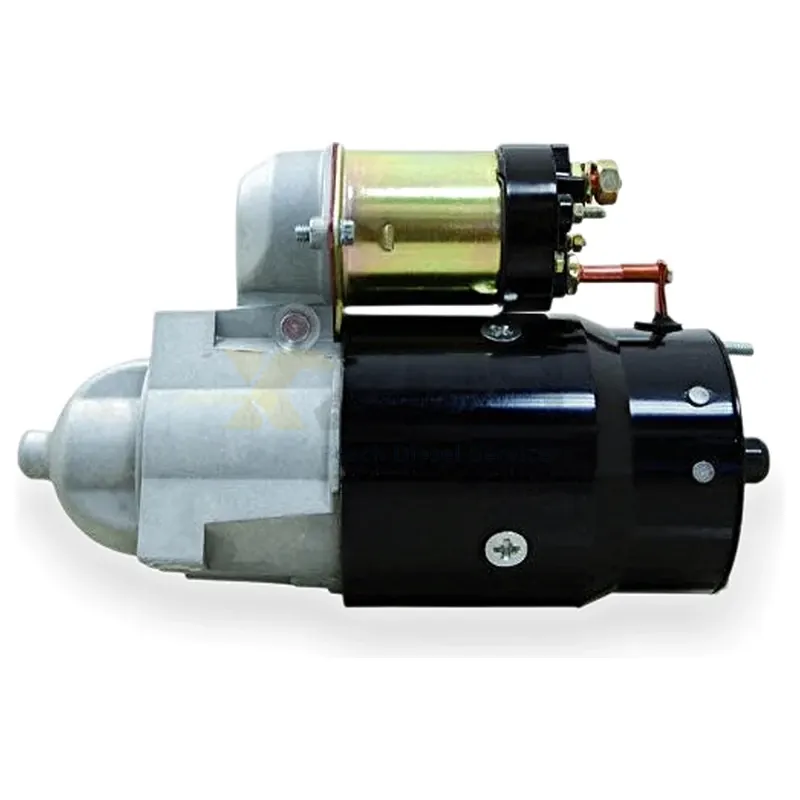

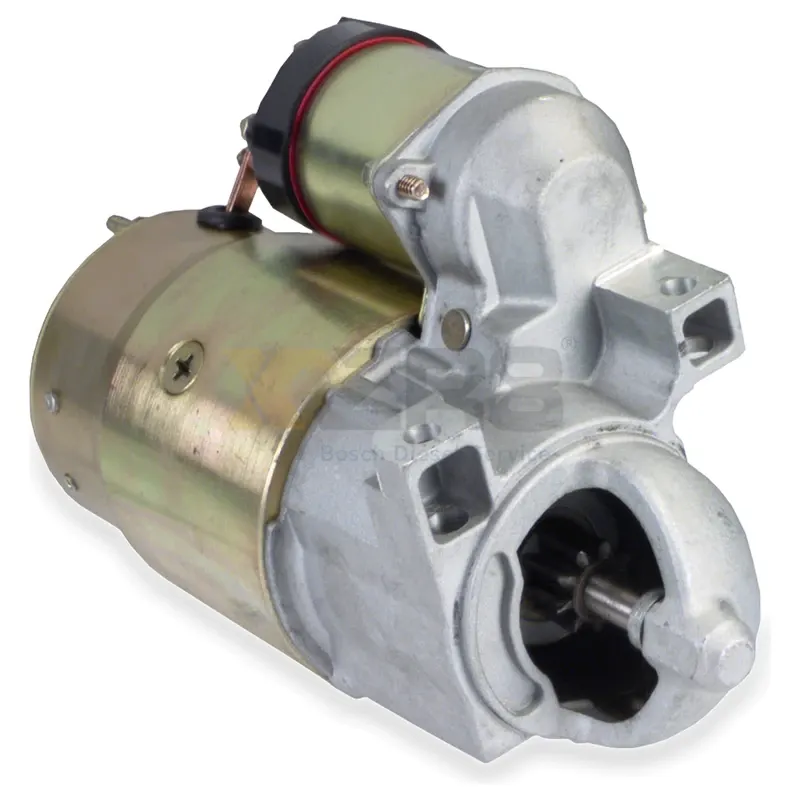

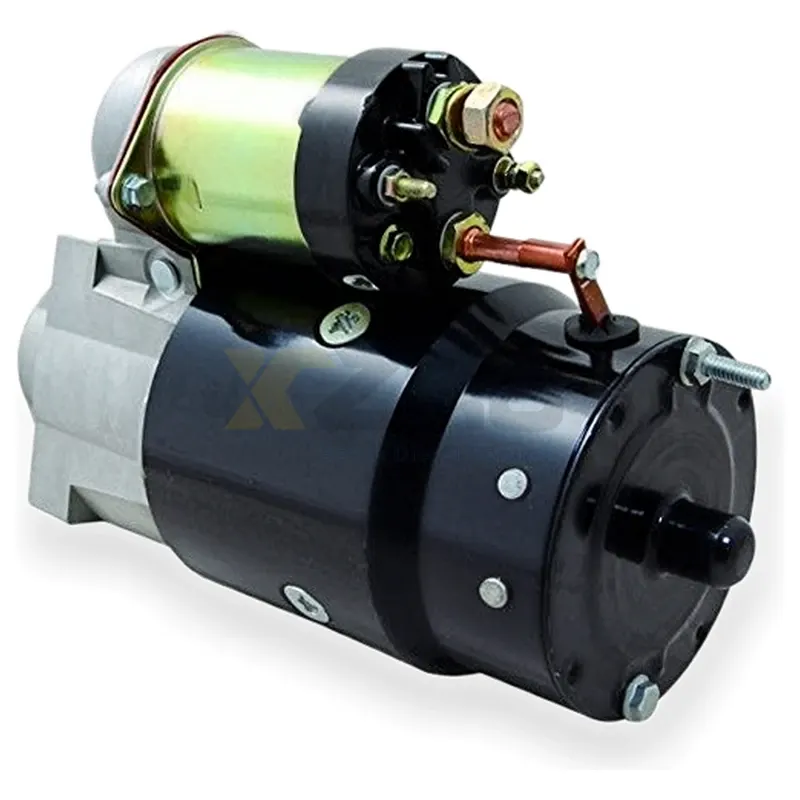

OEM replacement 12V 1.4kW direct drive starter motor SD300 series for General Motors V8 applications, 9-tooth pinion clockwise rotation.
