What are the technical specifications of 11177353-danfoss-electrohydraulic-actuator-pvea32?

Key technical specifications of Danfoss 11177353 Electrohydraulic Actuator PVEA32: rated_voltage: 11-32 VDC; connector_type: 1x4 AMP (4-pin); ip_protection_grade: IP66; fault_recovery: Passive; input_frequency: Ratiometric Voltage; compatible_valve_series: PVG32, PVG100 Series 7.

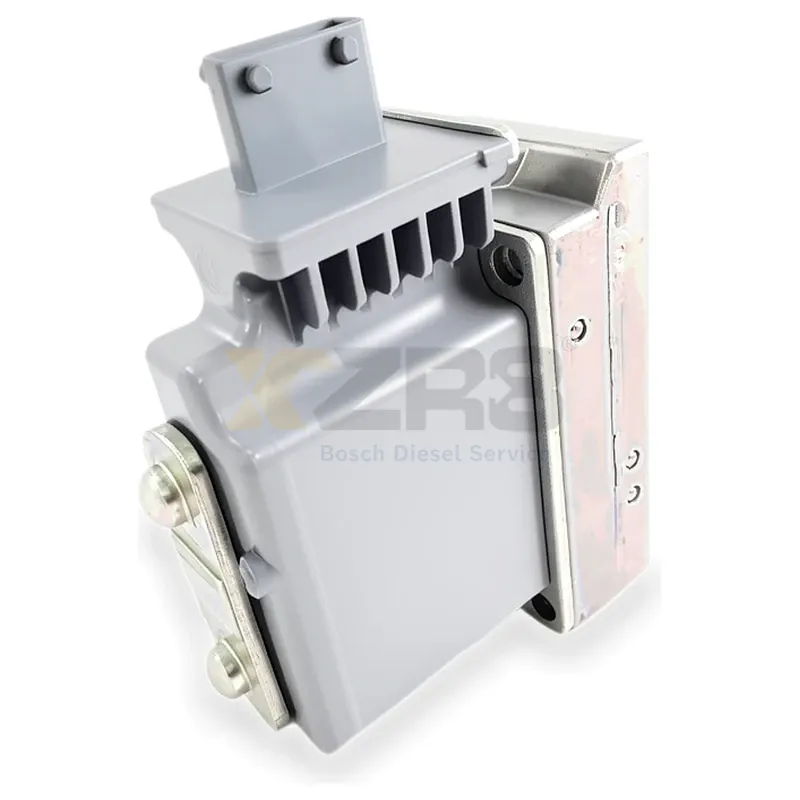

Danfoss 11177353 Electrohydraulic Actuator PVEA32 - Image 1

1 / 2

Danfoss 11177353 Electrohydraulic Actuator PVEA32

Q: What are the OEM and cross-reference part numbers for 11177353?

The OEM and interchange cross-reference numbers for Danfoss 11177353 Electrohydraulic Actuator PVEA32 include: 157B4735, 157B4911, 157B4775, 157B4912, 157B4915.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Rated Voltage	11-32 VDC
Connector Type	1x4 AMP (4-pin)
IP Protection Rating	IP66
Fault Recovery	Passive
Input Frequency	Ratiometric Voltage
compatible_valve_series	PVG32, PVG100 Series 7
Actuator Type	PVEA Proportional Standard
Position	No
Rotation Direction	No

Manufacturer No.

11177353PVEA32-ACTUATOR--S7-1x4AMP-H-PAS

Interchange No.

157B4735157B4911157B4775157B4912157B4915

Hydraulic Systems - Industrial Encyclopedia

OEM Danfoss 11177353 PVEA32 Series 7 electrohydraulic actuator, 11-32 VDC, AMP connector, IP66, passive fault monitoring for PVG32/PVG100 proportional valves.
