Which equipment and machinery is 1257840-genie-motor-controller-24v-360a compatible with?

Genie 1257840 DC Motor Controller 24V 360A (1257840-genie-motor-controller-24v-360a) is compatible with: Genie GS-1530, Genie GS-1532, Genie GS-1930, Genie GS-1932, Genie GS-2032, Genie GS-2046, Genie GS-2632, Genie GS-2646, Genie GS-3232, Genie GS-3246.

What are the OEM and cross-reference part numbers for 1257840?

The OEM and interchange cross-reference numbers for Genie 1257840 DC Motor Controller 24V 360A include: 1257840, 1257840GT, 823408, 823408GT, 1257840GN, 1257840GTGN, 823408GN, 823408GTGN, 1263633, 1263634, 96769GT.

What are the technical specifications of 1257840-genie-motor-controller-24v-360a?

Key technical specifications of Genie 1257840 DC Motor Controller 24V 360A: rated_voltage: 24V DC; current_rating: 360A; operating_frequency: 15.6 kHz; isolation_voltage_ac: 500 VAC; constant_open_contact_current: 70 mA; programmer_power: 130 mA.

Genie 1257840 DC Motor Controller 24V 360A - Image 1

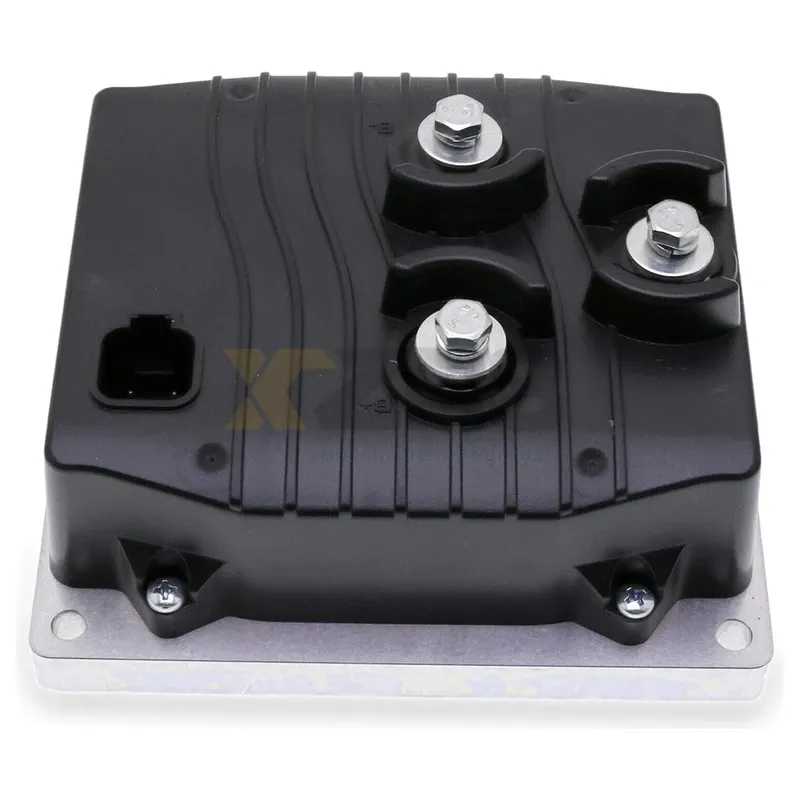

Genie 1257840 DC Motor Controller 24V 360A - Image 2

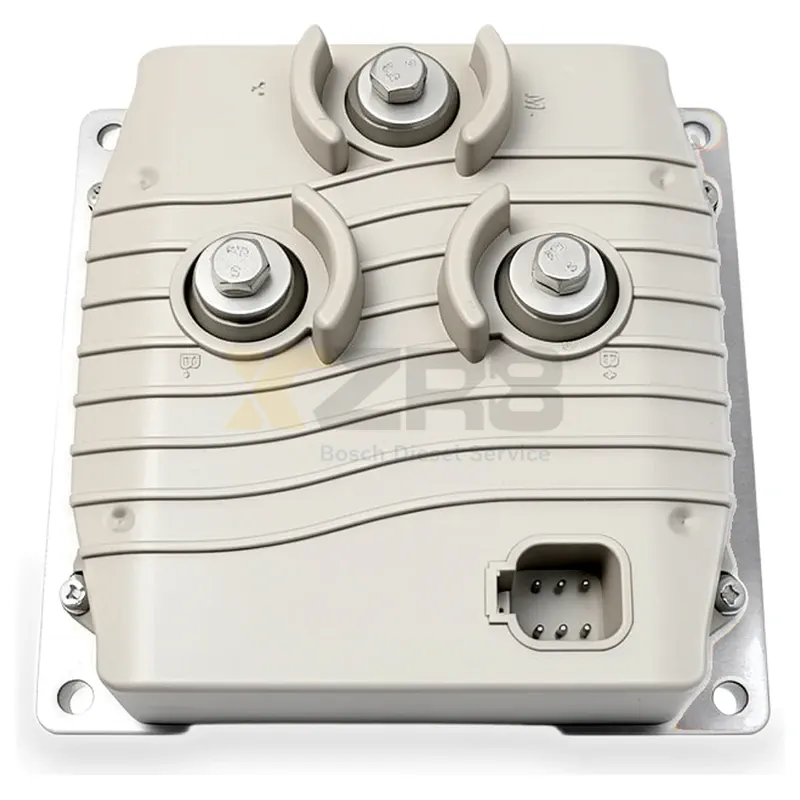

Genie 1257840 DC Motor Controller 24V 360A - Image 3

1 / 4

Genie 1257840 DC Motor Controller 24V 360A

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Rated Voltage	24V DC
Current Rating	360A
Operating Frequency	15.6 kHz
AC Isolation Voltage	500 VAC
Constant Open Contact Current	70 mA
Programmer Power	130 mA
Control Type	DC Motor Speed/Torque Control
Certification Type	CE, ISO 9001, UL, ROHS, CCC
Dimensions LxWxH	150mm x 150mm x 80mm
Weight	1.16 kg

Manufacturer No.

12578401257840GT

OEM Part No.

12578401257840GT823408823408GT

Interchange No.

1257840GN1257840GTGN823408GN823408GT823408GTGN1263633126363496769GT

Fitment Vehicles

Genie GS-1530Genie GS-1532Genie GS-1930Genie GS-1932Genie GS-2032Genie GS-2046Genie GS-2632Genie GS-2646Genie GS-3232Genie GS-3246Genie GS-4047Genie GR12Genie TZ34-20Genie TZ50-30Genie GS-3390Genie GS-4390Genie Z45Genie Z30

Electrical And Electronic Systems - Industrial Encyclopedia

OEM 24V 360A DC motor controller for Genie GS series scissor lifts, manages high-current drive motor operation with PWM control and thermal protection.
