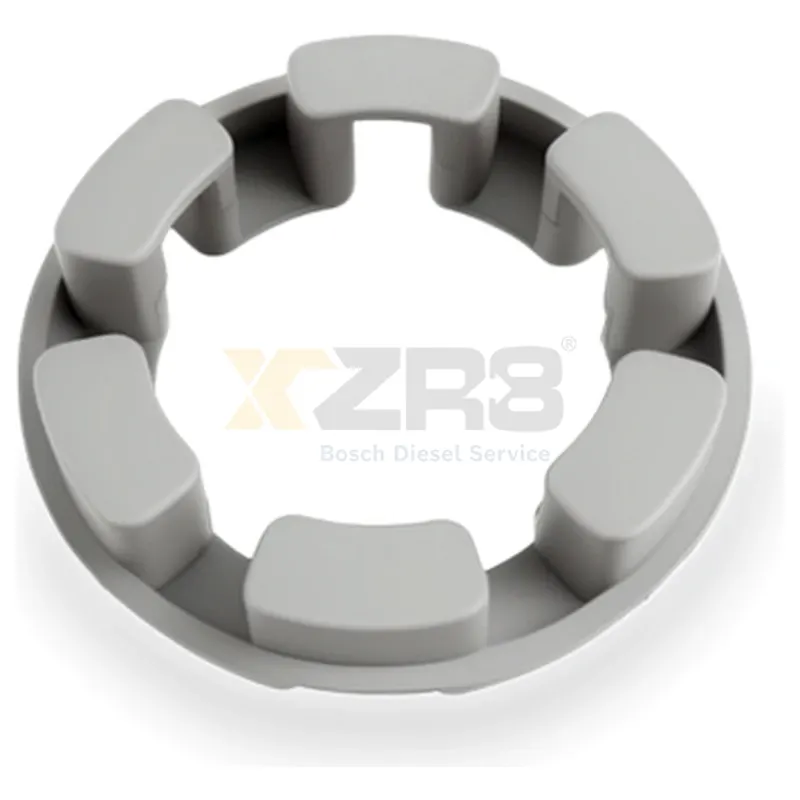

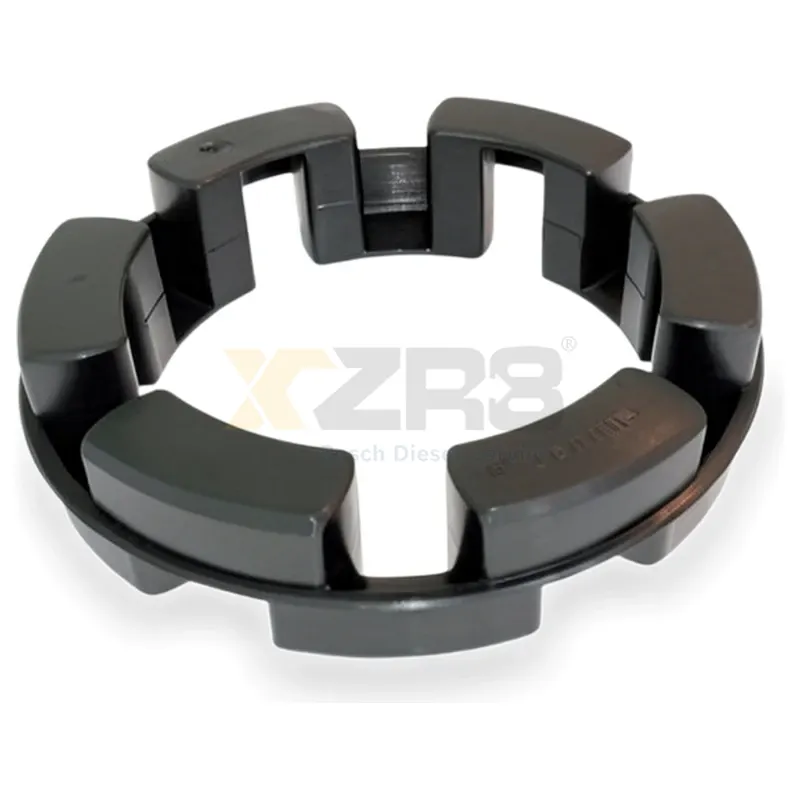

Normex 128-10 NM128 Elastomer Cushion
| Interface Size | NM128 |
| Rated Torque | 140 N·m |
| Max Operating Speed | 3000 rpm |
| Maximum Hub Bore | 55 mm |
| Pad Material | NBR (Nitrile Butadiene Rubber) / CSM+SBR |
| Number Of Lobes | 4 |
| Outer Diameter | 90 mm |
| Thickness Tolerance | 3.5±1.0 mm |
| Operating Temperature Range | -20°C to +80°C |
Manufacturer No.
128-10NM128-10
Interchange No.
Tsubaki NM128 SpiderDodge Jaw Coupling Spider 128Lovejoy Jaw Coupling Spider 128Mitsuboshi NM128 Element
Power Transmission And Drive Systems - Industrial Encyclopedia
Replacement NBR elastomer cushion for Normex NM128 flexible jaw coupling, rated 140 Nm nominal torque, 3000 rpm, 55 mm max bore, vibration damping.
