Which equipment and machinery is 140028800-carrier-receiver-drier compatible with?

Carrier 140028800 Receiver Drier Assembly (140028800-carrier-receiver-drier) is compatible with: Carrier Transicold Transport Refrigeration Units, Bus HVAC Systems.

What are the OEM and cross-reference part numbers for 140028800?

The OEM and interchange cross-reference numbers for Carrier 140028800 Receiver Drier Assembly include: 140028800, 14-00288-00, WSG164MIO, WSG164MO1, RD10095C, 7541, 7541G, 3710871, 3710871AM, 37-10868, 212021, 830.41045, 1013723, 97027301, 05-000-682.

What are the technical specifications of 140028800-carrier-receiver-drier?

Key technical specifications of Carrier 140028800 Receiver Drier Assembly: part_name: In-Line Receiver Drier with Sight Glass; overall_length: 8.5 in (21.59 cm); inlet_connection: Male Insert O-Ring 1/2 in (#8 - 3/4-16 UNF); outlet_connection: Male Insert O-Ring 1/2 in (#8 - 3/4-16 UNF); desiccant_type: Molecular Sieve; maximum_working_pressure: 35 bar (508 psi).

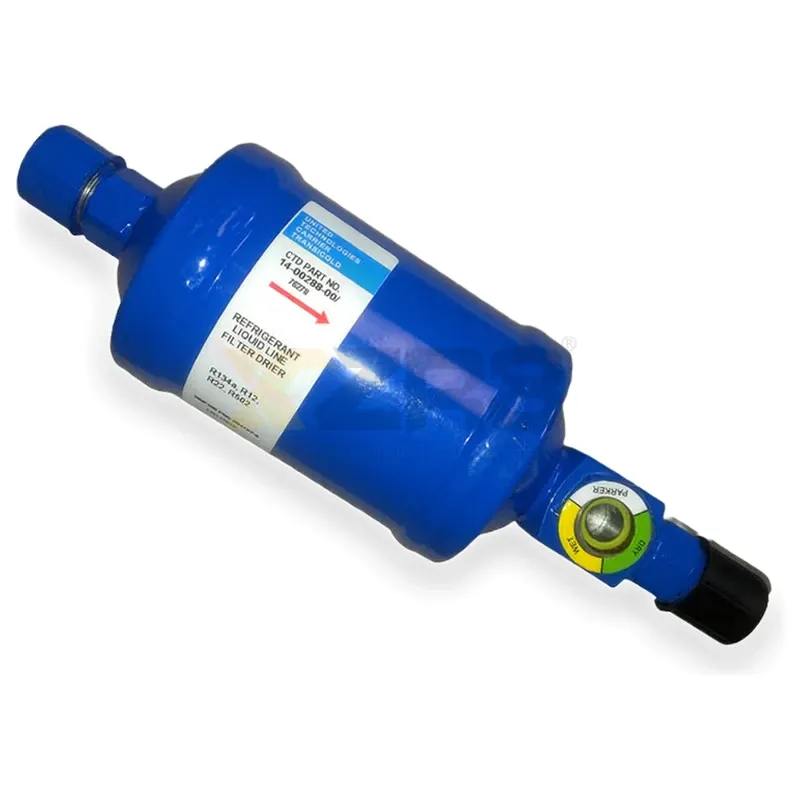

Carrier 140028800 Receiver Drier Assembly - Image 1

1 / 2

Carrier 140028800 Receiver Drier Assembly

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Part Name	In-Line Receiver Drier with Sight Glass
Overall Length	8.5 in (21.59 cm)
Inlet Connection	Male Insert O-Ring 1/2 in (#8 - 3/4-16 UNF)
Outlet Connection	Male Insert O-Ring 1/2 in (#8 - 3/4-16 UNF)
Desiccant Type	Molecular Sieve
Maximum Working Pressure	35 bar (508 psi)
Operating Temperature Range	-40°C to +120°C
Refrigerant Compatibility	R-134a, R-404A
Shell Material	Steel with Corrosion-Resistant Coating
Fitting Material	Brass
filter_element	Sintered Bronze

Manufacturer No.

14002880014-00288-00WSG164MIOWSG164MO1RD10095C75417541G3710871212021830.41045ACC14002880010137239702730105-000-682073063A04002031411735

OEM Part No.

14002880014-00288-00WSG164MIOWSG164MO1

Interchange No.

RD10095C75417541G37108713710871AM37-10868212021830.4104510137239702730105-000-682073063A04002031411735ACC140028800

Fitment Vehicles

Carrier Transicold Transport Refrigeration UnitsBus HVAC Systems

Cooling System - Industrial Encyclopedia

OEM specification in-line receiver drier with sight glass for Carrier Transicold systems, featuring O-ring connections and molecular sieve desiccant for moisture removal.
