Which equipment and machinery is 150-1232-danfoss-orbital-steering-unit-ospc-125-ls compatible with?

Danfoss 150-1232 OSPC 125 LS Orbital Steering Unit (150-1232-danfoss-orbital-steering-unit-ospc-125-ls) is compatible with: Komatsu PC200-8, John Deere 1550, John Deere 1640, John Deere 1750, John Deere 1840, John Deere 1850, John Deere 1950, John Deere 2040, John Deere 2140, John Deere 2250.

What are the OEM and cross-reference part numbers for 150-1232?

The OEM and interchange cross-reference numbers for Danfoss 150-1232 OSPC 125 LS Orbital Steering Unit include: 3EC-34-A5310, AL41631, 84266839, 47137771, 81180300, 150N1239, 6D1/40007MF, 150N2152, 150N1171, 150N1192, 150N2010, 150N2050, 150-1170, 150-1171, 150-1220.

What are the technical specifications of 150-1232-danfoss-orbital-steering-unit-ospc-125-ls?

Key technical specifications of Danfoss 150-1232 OSPC 125 LS Orbital Steering Unit: displacement: 125 cm³/rev; circuit_type: Load Sensing (LS); port_thread_size: 1/2 BSP; max_operating_pressure: 17.5 MPa; pressure_relief_valve: 160 bar; by_pass_valve_opening_pressure: 240 bar.

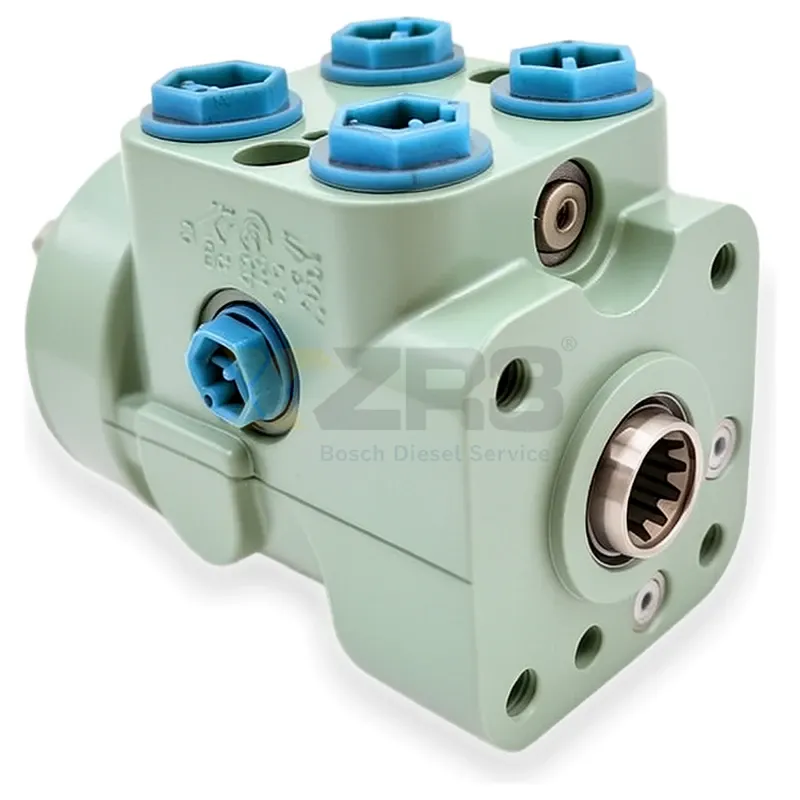

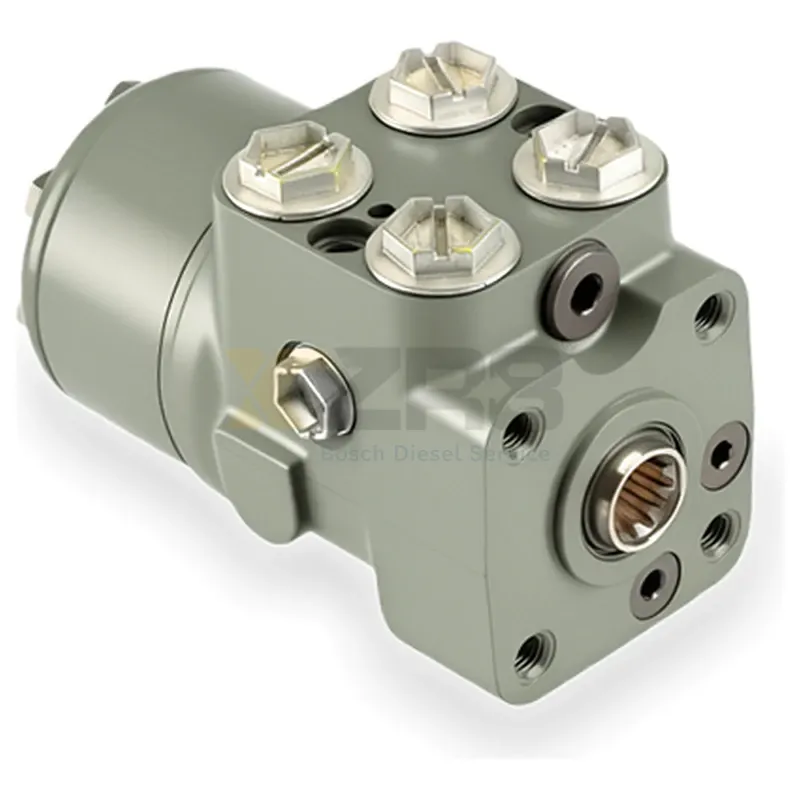

Danfoss 150-1232 OSPC 125 LS Orbital Steering Unit - Image 1

1 / 2

Danfoss 150-1232 OSPC 125 LS Orbital Steering Unit

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Displacement	125 cm³/rev
Circuit Type	Load Sensing (LS)
Port Thread Size	1/2 BSP
Max Operating Pressure	17.5 MPa
Pressure Relief Valve	160 bar
By Pass Valve Opening Pressure	240 bar
Mounting Pattern	4 x M10 x 16 mm
Weight	5.8 kg
Recommended System Flow	10-14 L/min
Shell Protection Grade	Class C3

Manufacturer No.

150-123211122740150-8155150G6010OSPC 125 LSOSPC125LS

OEM Part No.

3EC-34-A5310AL41631842668394713777181180300150N12396D1/40007MF

Interchange No.

150N2152150N1171150N1192150N2010150N2050150-1170150-1171150-1220150-8297OSPC 125 LSROSPC 125 ONOSPC 125 OR

Fitment Vehicles

Komatsu PC200-8John Deere 1550John Deere 1640John Deere 1750John Deere 1840John Deere 1850John Deere 1950John Deere 2040John Deere 2140John Deere 2250John Deere 2450Case-IH CS48Case-IH CS58Case-IH CS68Massey Ferguson 3000 SeriesMassey Ferguson 3100 SeriesMassey Ferguson 6100 SeriesMassey Ferguson 6200 SeriesValtra TractorsSteyr M SeriesCNH TractorsRostselmash Combines

Hydraulic Systems - Industrial Encyclopedia

Genuine Danfoss OSPC 125 LS load sensing orbital steering unit, 125 cm³/rev displacement, 1/2 BSP ports, 17.5 MPa max pressure, 5.8 kg. Direct replacement for Komatsu, John Deere, Case-IH.
