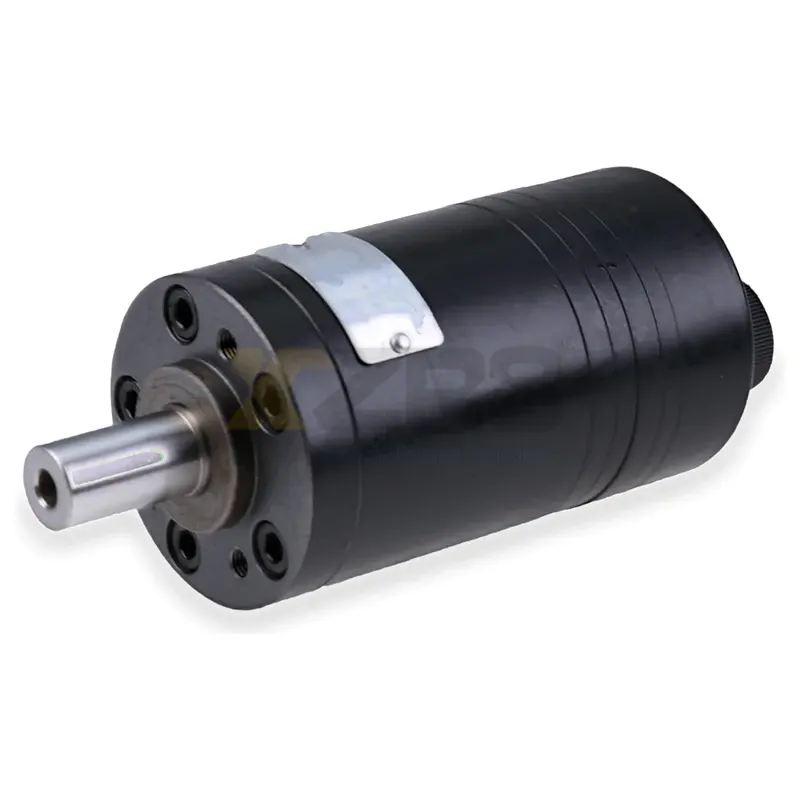

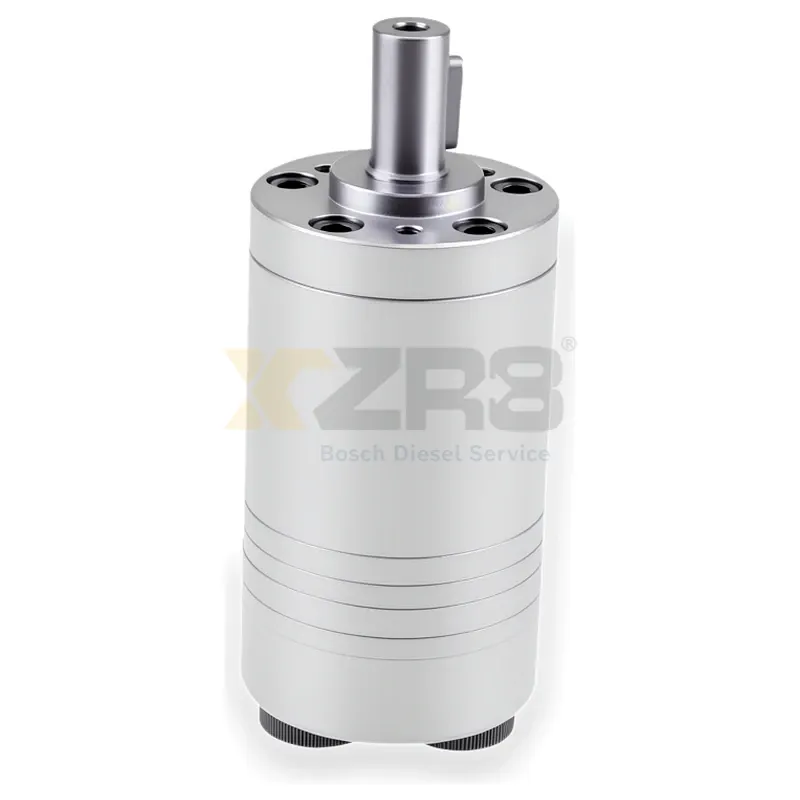

Danfoss 151G0031 Hydraulic Orbital Motor OMM12.5
Express Free Shipping
3-Year Factory Warranty
90-Day Hassle-Free Returns
24/7 Dedicated Support
| Displacement | 12.5 cm3/rev (0.76 in3/rev) |
| Max Continuous Speed | 1550 rpm |
| Max RPM Limit | 1940 rpm |
| Max Torque | 16 Nm (140 lbf·in) |
| Peak Torque | 23 Nm (200 lbf·in) |
| Max Input Power | 2.4 kW (3.2 hp) |
| Intermittent Current | 3.2 kW (4.3 hp) |
| Maximum Flow Rate | 5.28 GPM (20 L/min) |
| Port Thread Size | 9/16-18 UNF (SAE 6 ORB) |
| Output Shaft Type | 5/8 inch Straight with Woodruff Key |
| Mounting Flange | 3-Bolt Circle (Wheel Mount) |
| Rotation Direction | Bidirectional |
| Housing Material | Cast Iron |
| Valve Type | Integrated Spool Valve |
Manufacturer No.
151G0031OMM12.5OMM12.5-151G0031151-G0031
Interchange No.
BMM12.5GFX106352DAN-151G0031MSC151G0031W15136100
Hydraulic Systems - Industrial Encyclopedia
OEM replacement Danfoss OMM12.5 hydraulic orbital motor, 12.5 cm3 displacement, 1550 RPM continuous, 16 Nm continuous torque, 5/8 inch keyed shaft, 9/16-18 UNF ports.
