Which equipment and machinery is 15532-21110-kubota-piston-kit compatible with?

Kubota 15532-21110 Piston Kit Assembly (15532-21110-kubota-piston-kit) is compatible with: Kubota B2150, Kubota B9200, Kubota B7200, Kubota B8200, Bobcat RX245, Bobcat RX275, Bobcat RX2750, Weidemann, Schaffer, Aebi.

Which engines does part 15532-21110-kubota-piston-kit fit?

Kubota 15532-21110 Piston Kit Assembly fits the following engines: Kubota V1200, Kubota D950, Kubota EA300, Kubota Z620, Kubota V1200-A, Kubota V1200-5B.

What are the OEM and cross-reference part numbers for 15532-21110?

The OEM and interchange cross-reference numbers for Kubota 15532-21110 Piston Kit Assembly include: 15532-21110, 15732-21112, 15531-21050, 15442-21050, R95STD, TP11864, TP11686, V1200-STD-KIT, 15532-21111.

What are the technical specifications of 15532-21110-kubota-piston-kit?

Key technical specifications of Kubota 15532-21110 Piston Kit Assembly: piston_diameter: 75.0 mm; piston_length: 65.5 mm; compression_height: 48.5 mm; pin_diameter: 20.0 mm; pin_length: 54.0 mm; ring_widths: 2.0 / 1.5 / 4.0 mm.

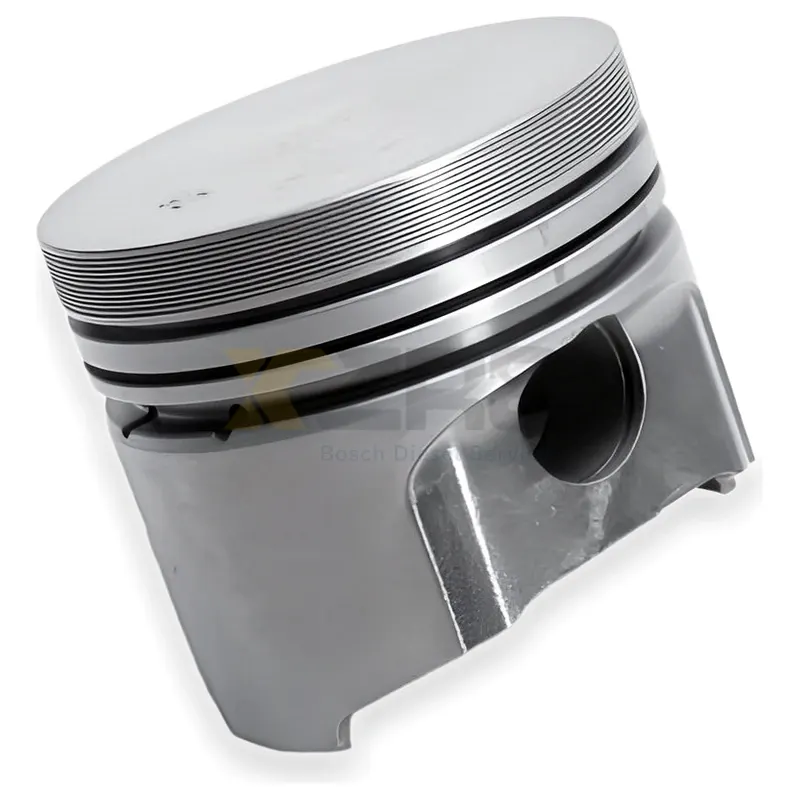

Kubota 15532-21110 Piston Kit Assembly - Image 1

1 / 2

Kubota 15532-21110 Piston Kit Assembly

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Piston Diameter	75.0 mm
Piston Length	65.5 mm
Compression Height	48.5 mm
Pin Diameter	20.0 mm
Pin Length	54.0 mm
Ring Widths	2.0 / 1.5 / 4.0 mm
Material	Aluminum Alloy
Injection Type	Indirect Injection
Engine Displacement	1.237 L
Cylinder Bore	75.0 mm
Piston Stroke	70.0 mm
Compression Ratio	22.0:1
Cylinder Count	4

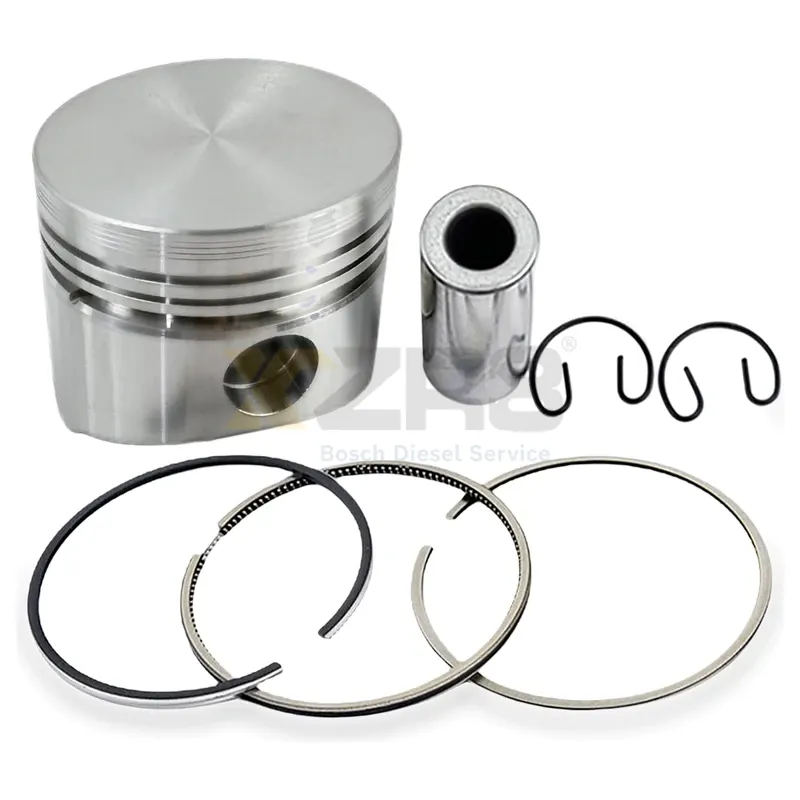

Kit Contents	4 Pistons, 4 Ring Sets, 4 Pins, 8 Circlips

Manufacturer No.

15532-2111015732-2111207916-28462

OEM Part No.

15532-2111015732-2111215531-2105015442-21050

Engine Part No.

Kubota V1200Kubota D950Kubota EA300Kubota Z620Kubota V1200-AKubota V1200-5B

Interchange No.

R95STDTP11864TP11686V1200-STD-KIT15532-21111

Fitment Vehicles

Kubota B2150Kubota B9200Kubota B7200Kubota B8200Bobcat RX245Bobcat RX275Bobcat RX2750WeidemannSchafferAebi

Engine System - Industrial Encyclopedia

Standard size piston kit with rings for Kubota V1200 1.2L diesel engines, 75mm bore, indirect injection, fits B2150 B9200 tractors and industrial equipment.
