Which equipment and machinery is 195315a2-case-ih-hydraulic-breakaway-coupler compatible with?

Case IH 195315A2 Hydraulic Breakaway Coupler Assembly (195315a2-case-ih-hydraulic-breakaway-coupler) is compatible with: Case IH MX80C, Case IH MX90C, Case IH MX100, Case IH MX100C, Case IH MX110, Case IH MX120, Case IH MX135, Case IH MX180, Case IH MX200, Case IH MX220.

What are the OEM and cross-reference part numbers for 195315A2?

The OEM and interchange cross-reference numbers for Case IH 195315A2 Hydraulic Breakaway Coupler Assembly include: 195315A2, 195315A1, 84207573, AM195315A2, HA195315, SH195315.

What are the technical specifications of 195315a2-case-ih-hydraulic-breakaway-coupler?

Key technical specifications of Case IH 195315A2 Hydraulic Breakaway Coupler Assembly: thread_size: M22 x 1.5 Male ORB; body_diameter: 1/2 inch; max_operating_pressure: 3625 PSI; overall_length: 104.4 mm; connection_type: Push-Pull; mounting_style: Rigid Mount.

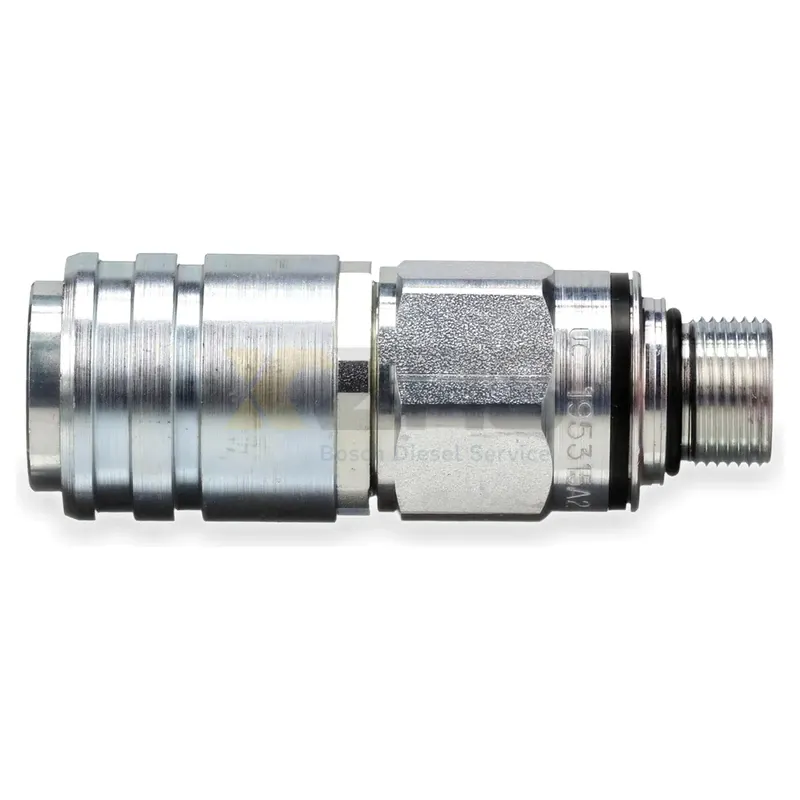

Case IH 195315A2 Hydraulic Breakaway Coupler Assembly

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Thread Size	M22 x 1.5 Male ORB
Body Diameter	1/2 inch
Max Operating Pressure	3625 PSI
Overall Length	104.4 mm
Connection Type	Push-Pull
Mounting Style	Rigid Mount
Emergency Breakaway	Emergency Breakaway
Residual Pressure Connect	Yes
Dust Protection	Enclosed Housing with Rubber Plug
ISO Standard	ISO 9974-2

Manufacturer No.

195315A2AM195315A2HA195315SH195315

OEM Part No.

195315A2195315A184207573

Interchange No.

AM195315A2HA195315SH195315

Fitment Vehicles

Case IH MX80CCase IH MX90CCase IH MX100Case IH MX100CCase IH MX110Case IH MX120Case IH MX135Case IH MX180Case IH MX200Case IH MX220Case IH MX240Case IH MX270New Holland TM SeriesNew Holland TV Series

Hydraulic Systems - Industrial Encyclopedia

OEM replacement hydraulic breakaway coupler M22x1.5 thread, 1/2 body size, 3625 PSI max pressure for Case IH Maxxum MX80C-MX270 tractors.
