Which equipment and machinery is 228000-4591-denso-starter-motor compatible with?

Denso 228000-4591 Starter Motor Assembly (228000-4591-denso-starter-motor) is compatible with: Kubota MX5000DT, Kubota MX5000F, Kubota M59.

Which engines does part 228000-4591-denso-starter-motor fit?

Denso 228000-4591 Starter Motor Assembly fits the following engines: Kubota V2403.

What are the OEM and cross-reference part numbers for 228000-4591?

The OEM and interchange cross-reference numbers for Denso 228000-4591 Starter Motor Assembly include: 17123-63016, 17123-63013, 9722809-459, SND0343, 111197, ND9722809-459, ND228000-4593.

What are the technical specifications of 228000-4591-denso-starter-motor?

Key technical specifications of Denso 228000-4591 Starter Motor Assembly: rated_voltage: 12V; power_output: 2.0 kW; rotation_direction: Clockwise (CW); pinion_teeth_count: 9; pinion_outer_diameter: 1.327 in; drive_type: OSGR (Offset Gear Reduction).

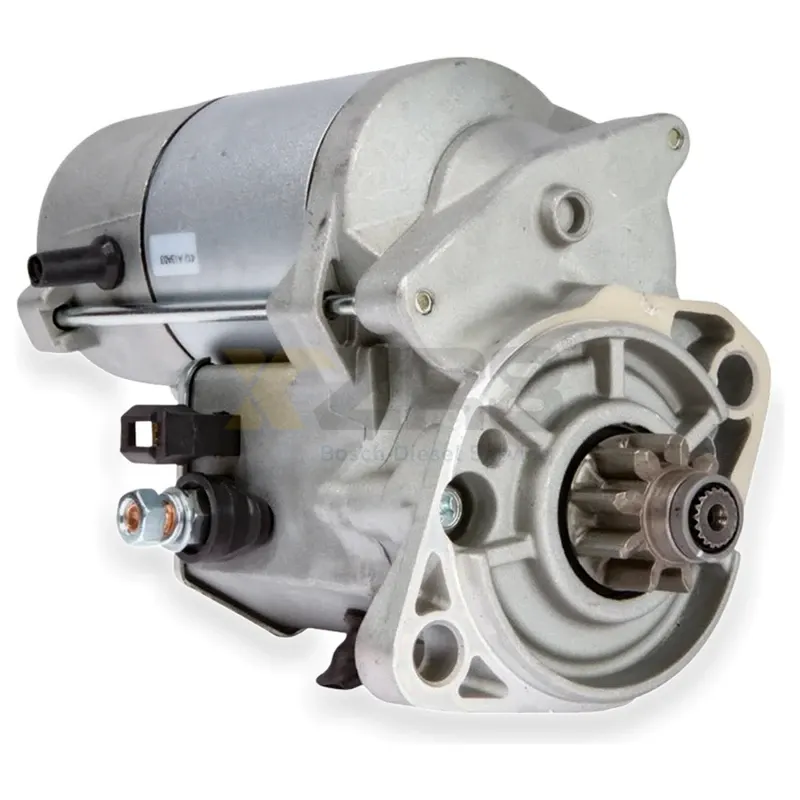

Denso 228000-4591 Starter Motor Assembly - Image 1

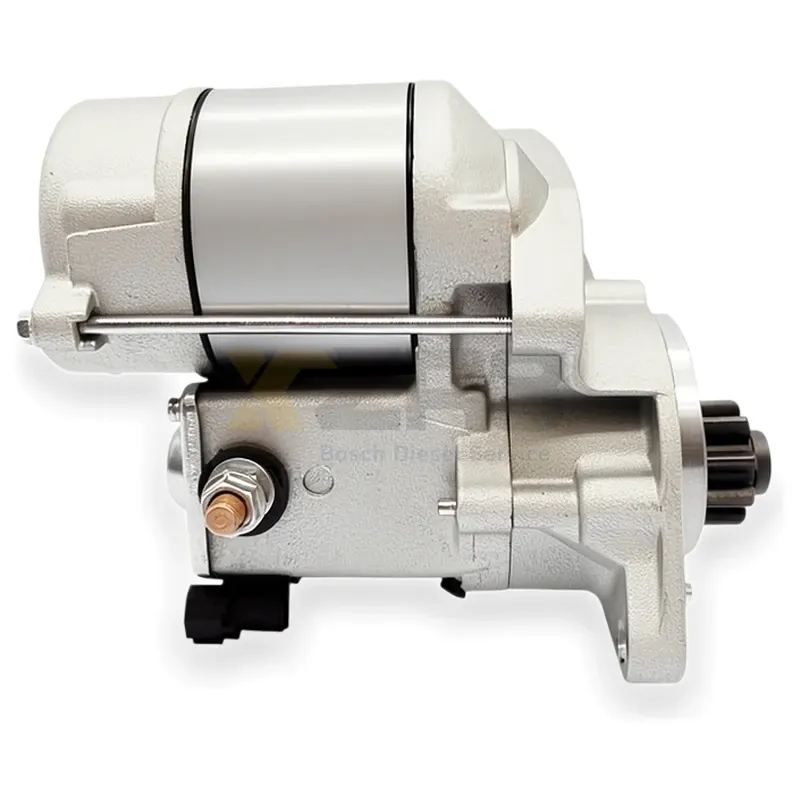

Denso 228000-4591 Starter Motor Assembly - Image 2

1 / 3

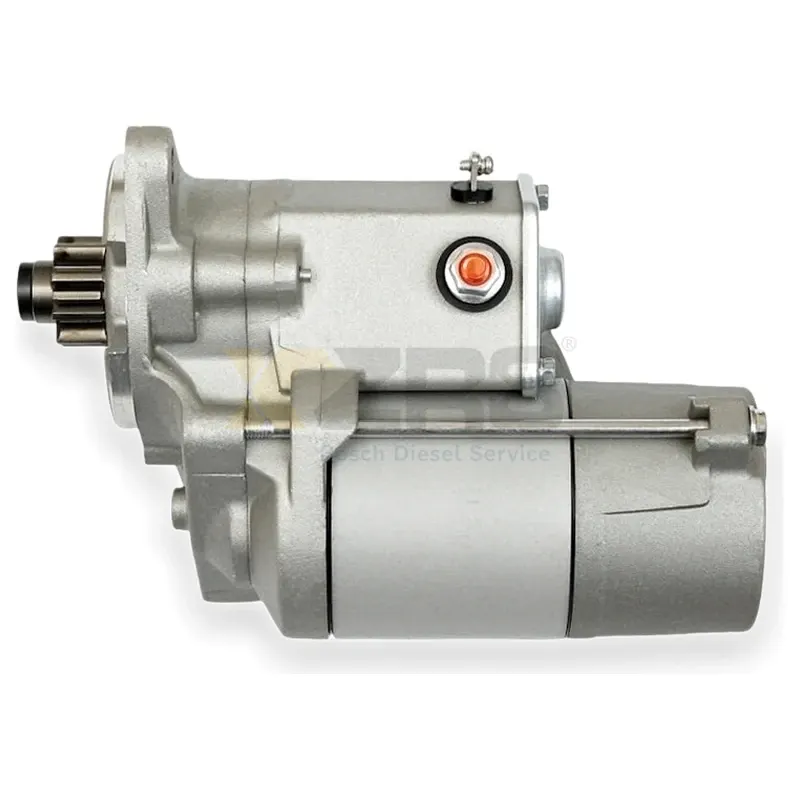

Denso 228000-4591 Starter Motor Assembly

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Rated Voltage	12V
Power Output	2.0 kW
Rotation Direction	Clockwise (CW)
Pinion Teeth Count	9
Pinion Outer Diameter	1.327 in
Drive Type	OSGR (Offset Gear Reduction)
Weight	8.16 kg

Manufacturer No.

228000-4591228000-4590228000-4592228000-4593

OEM Part No.

17123-6301617123-630139722809-459

Engine Part No.

Kubota V2403

Interchange No.

SND0343111197ND9722809-459ND228000-4593

Fitment Vehicles

Kubota MX5000DTKubota MX5000FKubota M59

Engine System - Industrial Encyclopedia

OEM replacement 12V 2.0kW OSGR starter motor with 9-tooth pinion for Kubota V2403 diesel engines, fits MX5000 series utility tractors.
