Which engines does part 24288385-luk-dual-mass-flywheel-7dct250 fit?

LuK 24288385 Dual Mass Flywheel Assembly fits the following engines: GM 1.5L Turbo (LFV), SAIC 1.5T NetBlue.

What are the OEM and cross-reference part numbers for DMF049?

The OEM and interchange cross-reference numbers for LuK 24288385 Dual Mass Flywheel Assembly include: 24288385, 24266688, 24273931, 24276707, DMF049, CNFW48, Z59-FX5355.

What are the technical specifications of 24288385-luk-dual-mass-flywheel-7dct250?

Key technical specifications of LuK 24288385 Dual Mass Flywheel Assembly: transmission_type: 7DCT250 7-Speed Dry Dual Clutch; number_of_teeth: 135; bolt_hole_count: 8; damping_type: Arc Spring; material: Forged Steel / Cast Iron; balancing_grade: G 6.3 (ISO 21940-11).

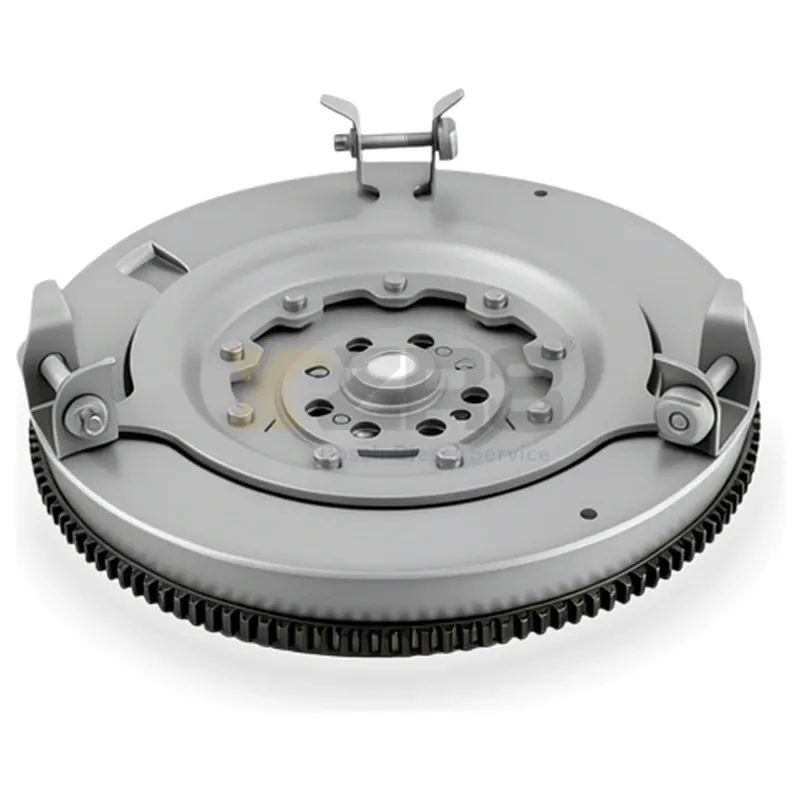

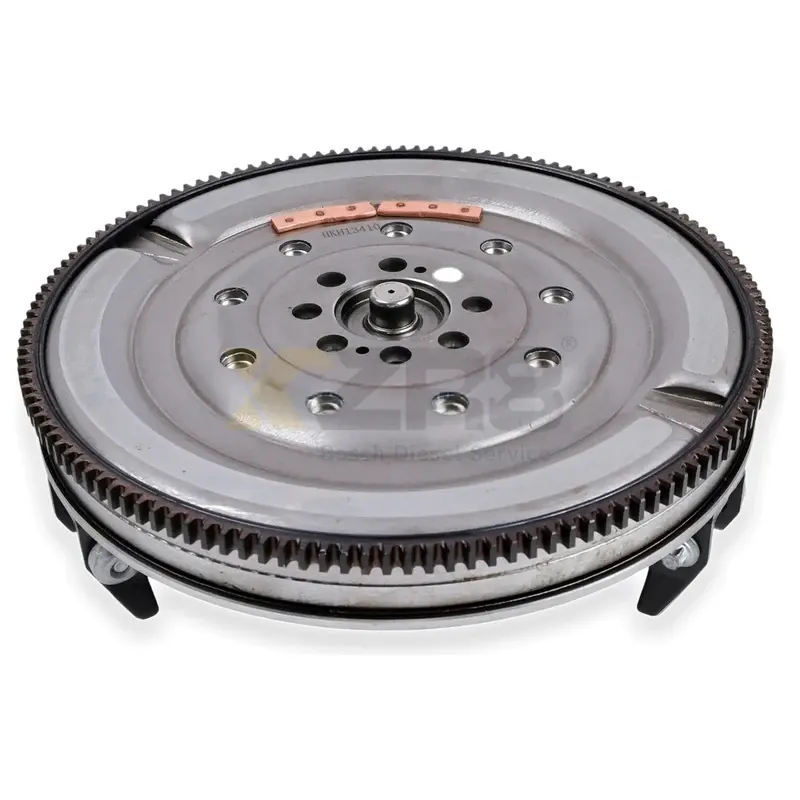

LuK 24288385 Dual Mass Flywheel Assembly - Image 1

1 / 2

LuK 24288385 Dual Mass Flywheel Assembly

Q: Which equipment and machinery is 24288385-luk-dual-mass-flywheel-7dct250 compatible with?

LuK 24288385 Dual Mass Flywheel Assembly (24288385-luk-dual-mass-flywheel-7dct250) is compatible with: Buick LaCrosse (2016-2023), Buick Regal (2017-2023), Buick Enclave (2017-2023), Cadillac ATS (2013-2019), Cadillac XT5 (2017-2023), SAIC MG 6 (2015-2021), SAIC MG HS (2018-2023), SAIC MG ZS (2017-2023), Roewe RX5 (2016-2023), Roewe i5 (2017-2023).

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Transmission Type	7DCT250 7-Speed Dry Dual Clutch
Number of Teeth	135
Bolt Hole Count	8
Damping Type	Arc Spring
Material	Forged Steel / Cast Iron
Balancing Grade	G 6.3 (ISO 21940-11)

Manufacturer No.

DMF049242883857DCT250

OEM Part No.

24288385242666882427393124276707

Engine Part No.

GM 1.5L Turbo (LFV)SAIC 1.5T NetBlue

Interchange No.

DMF049CNFW48Z59-FX5355

Fitment Vehicles

Buick LaCrosse (2016-2023)Buick Regal (2017-2023)Buick Enclave (2017-2023)Cadillac ATS (2013-2019)Cadillac XT5 (2017-2023)SAIC MG 6 (2015-2021)SAIC MG HS (2018-2023)SAIC MG ZS (2017-2023)Roewe RX5 (2016-2023)Roewe i5 (2017-2023)Roewe i6 (2017-2023)

Engine System - Industrial Encyclopedia

OE specification dual mass flywheel assembly for GM 7DCT250 transmissions, compatible with 1.5L turbo engines in Buick, Cadillac, and SAIC MG/Roewe models. Engineered for torsional vibration damping and smooth clutch engagement.
