What are the OEM and cross-reference part numbers for 252106011000?

The OEM and interchange cross-reference numbers for Eberspacher 252106011000 Glow Pin include: 7M3 963 319 A.

What are the technical specifications of 252106011000-eberspacher-glow-pin?

Key technical specifications of Eberspacher 252106011000 Glow Pin: rated_voltage: 12V; ignition_voltage: 8V; power_output: 64-72W; current_rating: 8-9A; sensor_element_material: Silicon Nitride Ceramic; pin_diameter: 4.5 mm.

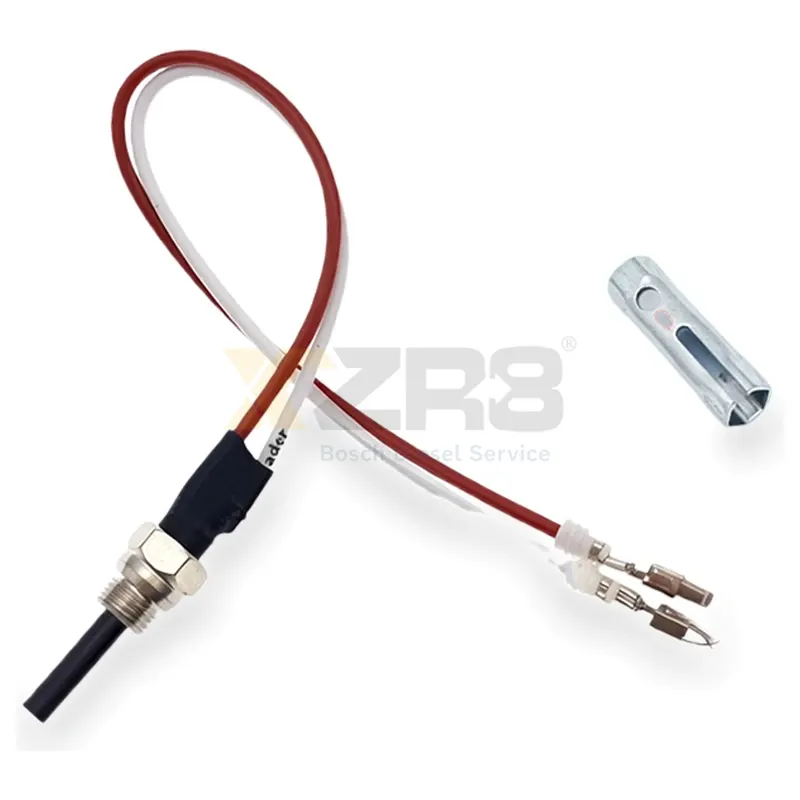

Eberspacher 252106011000 Glow Pin - Image 1

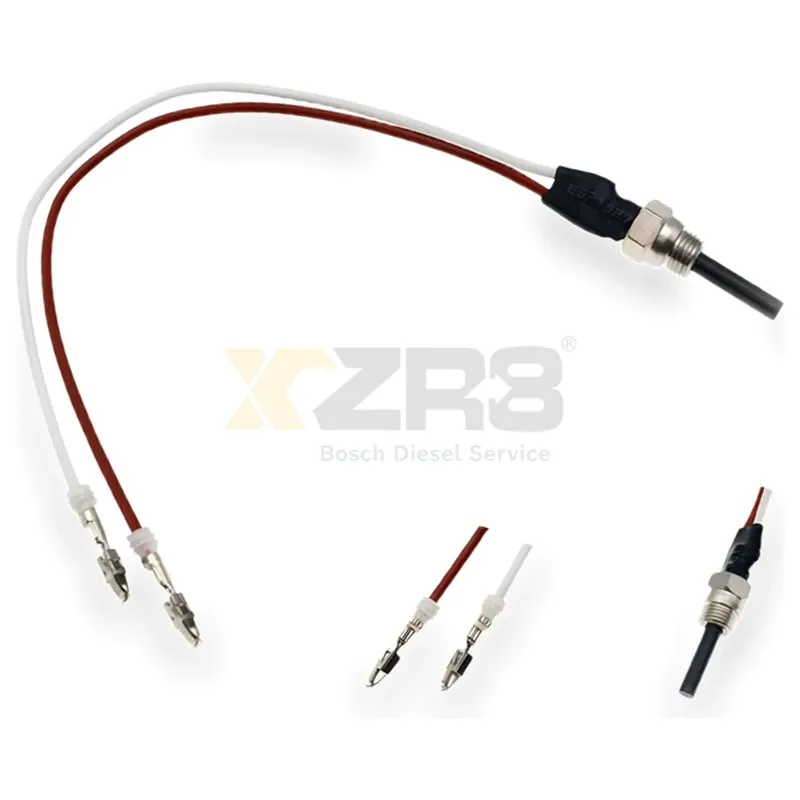

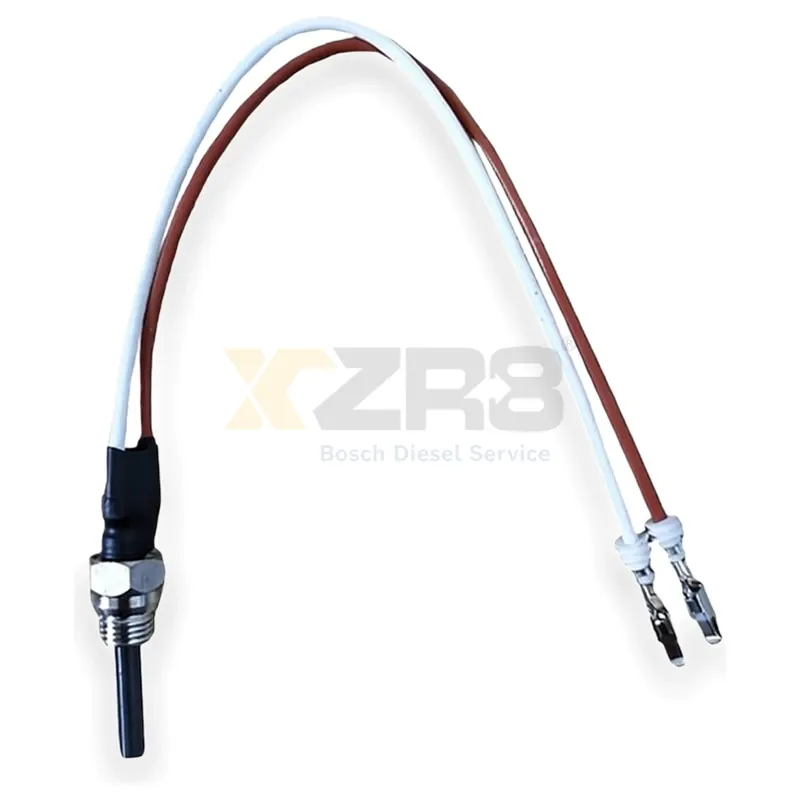

Eberspacher 252106011000 Glow Pin - Image 2

1 / 3

Eberspacher 252106011000 Glow Pin

Q: Which equipment and machinery is 252106011000-eberspacher-glow-pin compatible with?

Eberspacher 252106011000 Glow Pin (252106011000-eberspacher-glow-pin) is compatible with: Eberspacher Hydronic D4WSC, Eberspacher Hydronic D5WSC, Eberspacher Hydronic D4WS, Eberspacher Hydronic D5WS, Eberspacher Hydronic D5WZ, Eberspacher Airtronic D2, Eberspacher Airtronic D4, Eberspacher Airtronic D4S.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Rated Voltage	12V
Ignition Voltage	8V
Power Output	64-72W
Current Rating	8-9A
Sensor Element Material	Silicon Nitride Ceramic
Pin Diameter	4.5 mm
Cable Length	200 mm

Manufacturer No.

25210601100025.2106.01.1000252106011300

OEM Part No.

7M3 963 319 A

Fitment Vehicles

Eberspacher Hydronic D4WSCEberspacher Hydronic D5WSCEberspacher Hydronic D4WSEberspacher Hydronic D5WSEberspacher Hydronic D5WZEberspacher Airtronic D2Eberspacher Airtronic D4Eberspacher Airtronic D4S

Cooling System - Industrial Encyclopedia

OEM specification 12V ceramic glow pin for Eberspacher Hydronic D4WSC and D5WSC parking heaters. Silicon nitride construction ensures rapid heat-up and reliable cold-start.
