Which equipment and machinery is 277p8-22051-tcm-mast-roller-bearing compatible with?

TCM 277P8-22051 Mast Roller Bearing (277p8-22051-tcm-mast-roller-bearing) is compatible with: TCM FCB25A4, TCM FCG20-4, TCM FD20Z2, TCM FG20T3, TCM FCG20-2H, TCM FG25T6, TCM FHG36T3, TCM FCB30A4, TCM FHG35N9, TCM FD20-30T3.

Which engines does part 277p8-22051-tcm-mast-roller-bearing fit?

TCM 277P8-22051 Mast Roller Bearing fits the following engines: Isuzu 4JG2, Isuzu C240PKJ.

What are the OEM and cross-reference part numbers for 277P8-22051?

The OEM and interchange cross-reference numbers for TCM 277P8-22051 Mast Roller Bearing include: 277P8-22051, 130309KT, 180709K, A-M009-019A-0692A, M009-008-0692A, F31A8-42051, 23458-22111, M3038008000.

What are the technical specifications of 277p8-22051-tcm-mast-roller-bearing?

Key technical specifications of TCM 277P8-22051 Mast Roller Bearing: outer_diameter: 119 mm; inner_diameter: 45 mm; width: 29 mm; material: Hardened Bearing Steel (GCr15); type: Mast Guide Roller Bearing; sealing: Double Sealed (2RS).

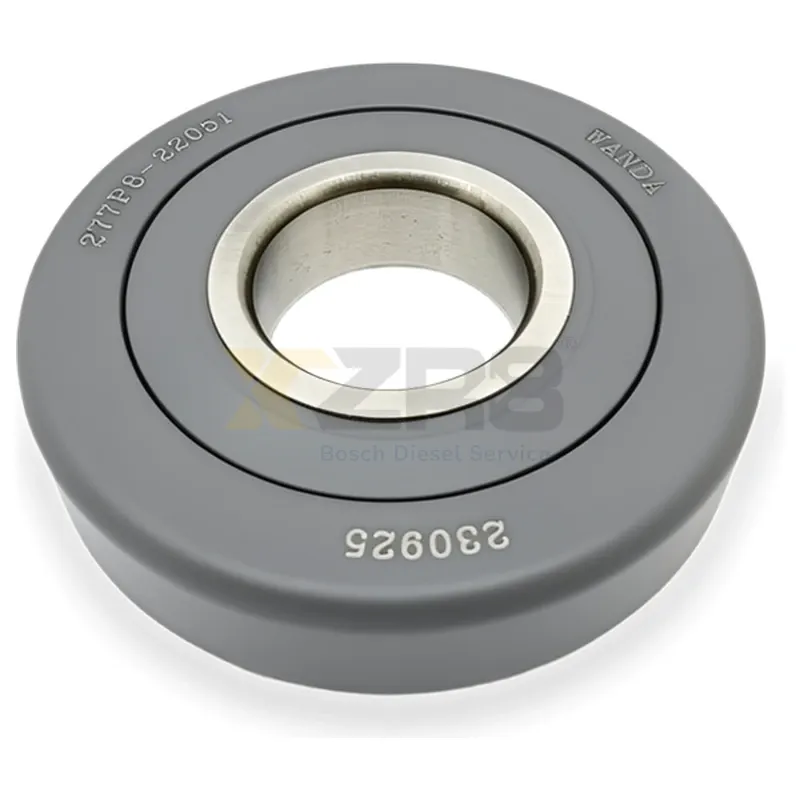

TCM 277P8-22051 Mast Roller Bearing - Image 1

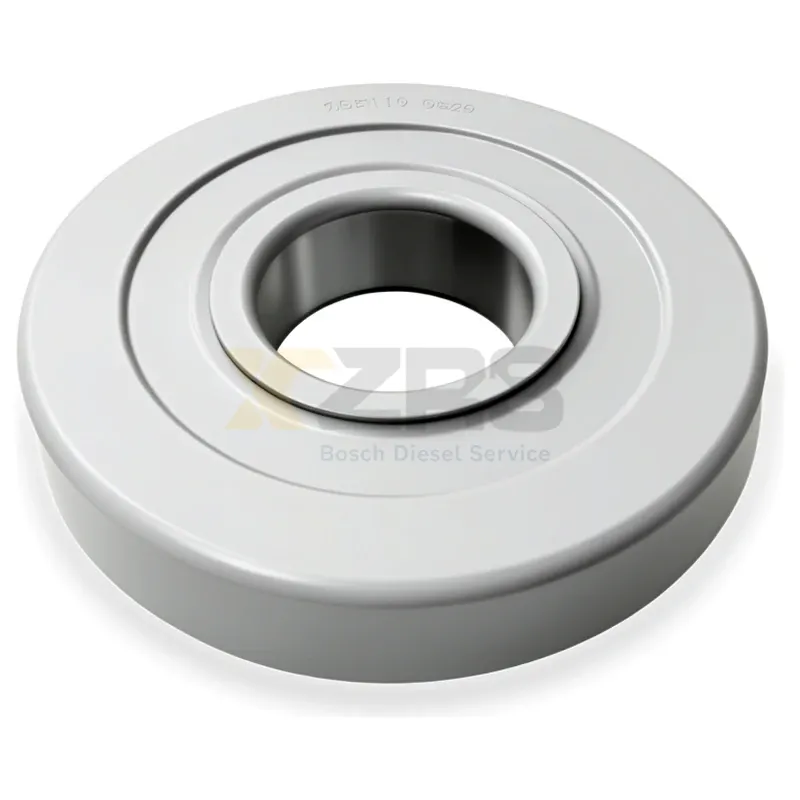

TCM 277P8-22051 Mast Roller Bearing - Image 2

TCM 277P8-22051 Mast Roller Bearing - Image 3

1 / 4

TCM 277P8-22051 Mast Roller Bearing

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Outer Diameter	119 mm
Inner Diameter	45 mm
Width	29 mm
Material	Hardened Bearing Steel (GCr15)
Type	Mast Guide Roller Bearing
Sealing Type	Double Sealed (2RS)
roller_configuration	Thick-Walled Outer Ring

Manufacturer No.

277P8-22051277P822051277P8-22051S277P8-22061

OEM Part No.

277P8-22051

Engine Part No.

Isuzu 4JG2Isuzu C240PKJ

Interchange No.

130309KT180709KA-M009-019A-0692AM009-008-0692AF31A8-4205123458-22111M3038008000

Fitment Vehicles

TCM FCB25A4TCM FCG20-4TCM FD20Z2TCM FG20T3TCM FCG20-2HTCM FG25T6TCM FHG36T3TCM FCB30A4TCM FHG35N9TCM FD20-30T3TCM FD20-30T6TCM FB20-30TCM FD100Z8Heli CPCD100Mitsubishi Forklifts

Material Handling Equipment - Industrial Encyclopedia

OEM replacement mast roller bearing 277P8-22051 for TCM forklift models FD20-30T3/T6, FG20-30T3, FB20-30. Features 119mm OD, 45mm ID, 29mm width hardened steel construction.
