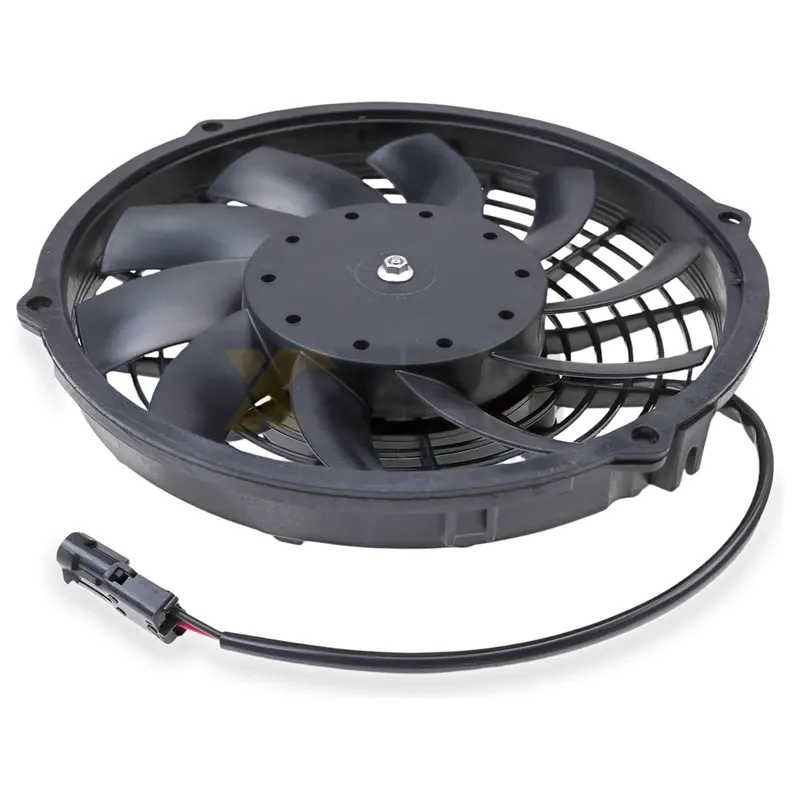

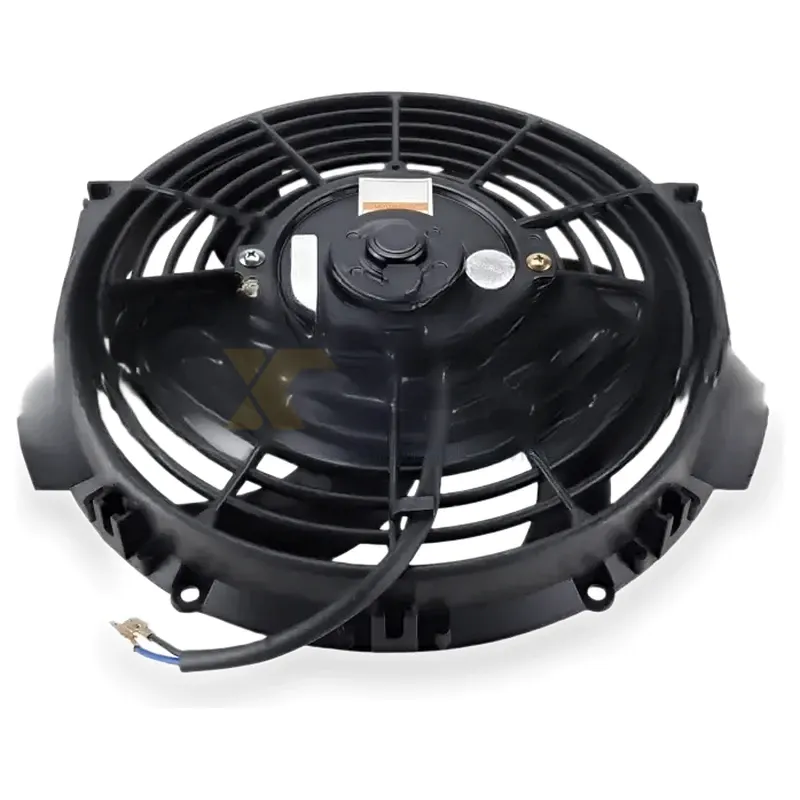

SPAL 30100320 Low Profile Pusher Fan Assembly
| Rated Voltage | 12V DC |
| Maximum Airflow | 844 CFM (1430 m³/h) |
| Airflow Capacity | 797 CFM |
| Current Rating | 8.5 A |
| Fan Diameter | 10 in (255 mm) |
| Blade Style | Curved Blade (9 Blades) |
| Fan Type | Pusher (Blowing) |
| Overall Depth | 52 mm (2.05 in) |
| Motor Type | Brushed DC, Sealed (IP68/IP69K) |
| Electrical Connector Type | Packard Metri-Pack 280 with Harness |
| Shell Material | Glass-Filled Nylon (Black) |
| Volute Blade Material | Glass-Filled Polypropylene (Black) |
Manufacturer No.
3010032030100320AVA11-AP7/C-57SVA11-AP7/C-29SIX-30100320SPU-IX-30100320SPA30100320
OEM Part No.
720-7925125-14812-S06-3583
Interchange No.
35831001127100-1040142-102035-601325-14815-S123483PTAC358330100374
Cooling System - Industrial Encyclopedia
SPAL 30100320 12V 10-inch low-profile curved-blade pusher fan delivering 844 CFM max airflow. Designed for oil coolers, transmission coolers, condensers, and auxiliary radiators.
