What are the OEM and cross-reference part numbers for 3904166?

The OEM and interchange cross-reference numbers for Cummins 3904166 Cylinder Liner Sleeve include: 3904166, J904166, 153648773, 4593904166, 75287931, 75311237, 76191922, F2229372, P2229372, M-3904166, FP-3904166, 161630, F020628, K3904166, HCC3904166.

What are the technical specifications of 3904166-cummins-cylinder-liner-sleeve?

Key technical specifications of Cummins 3904166 Cylinder Liner Sleeve: bore_diameter: 102 mm; liner_type: Dry Salvage Sleeve; material: Centrifugally Cast Boron Alloy Iron / Steel Sleeve; overall_length: 200 mm; outer_diameter: 105.1 mm; wall_thickness: 1.55 mm.

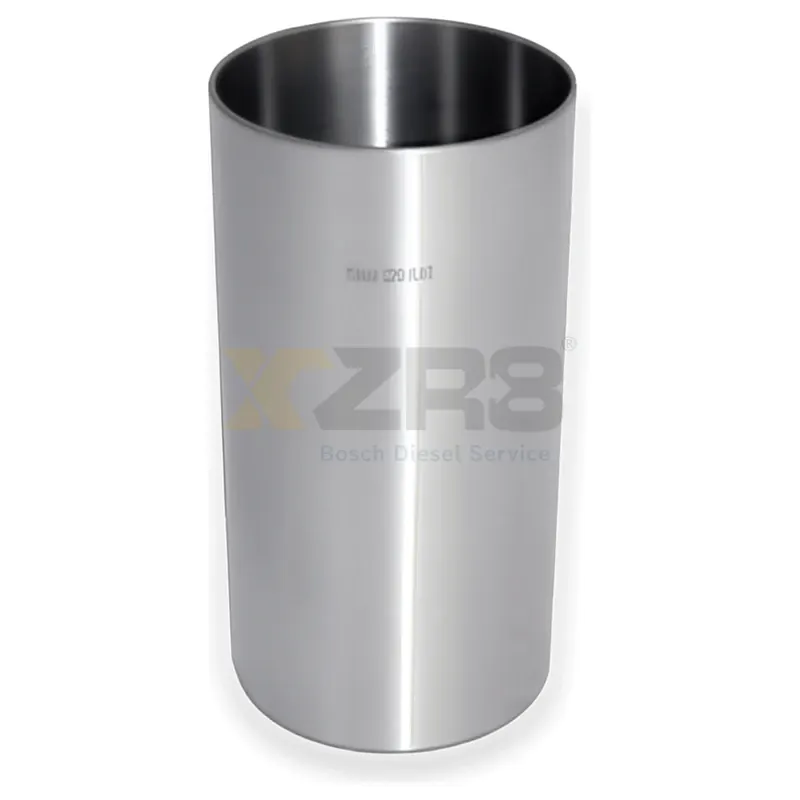

Cummins 3904166 Cylinder Liner Sleeve - Image 1

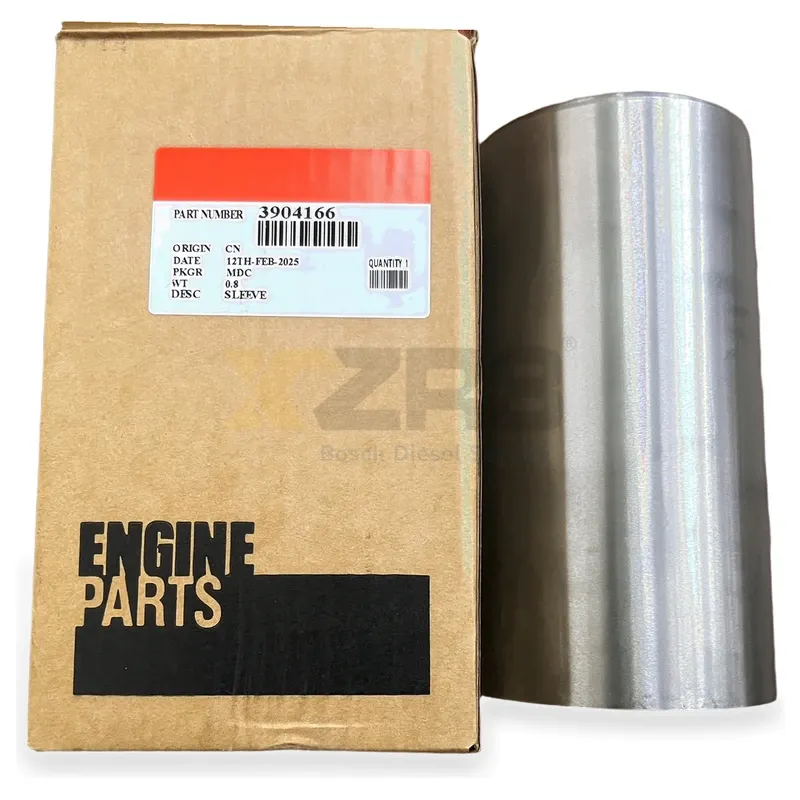

Cummins 3904166 Cylinder Liner Sleeve - Image 2

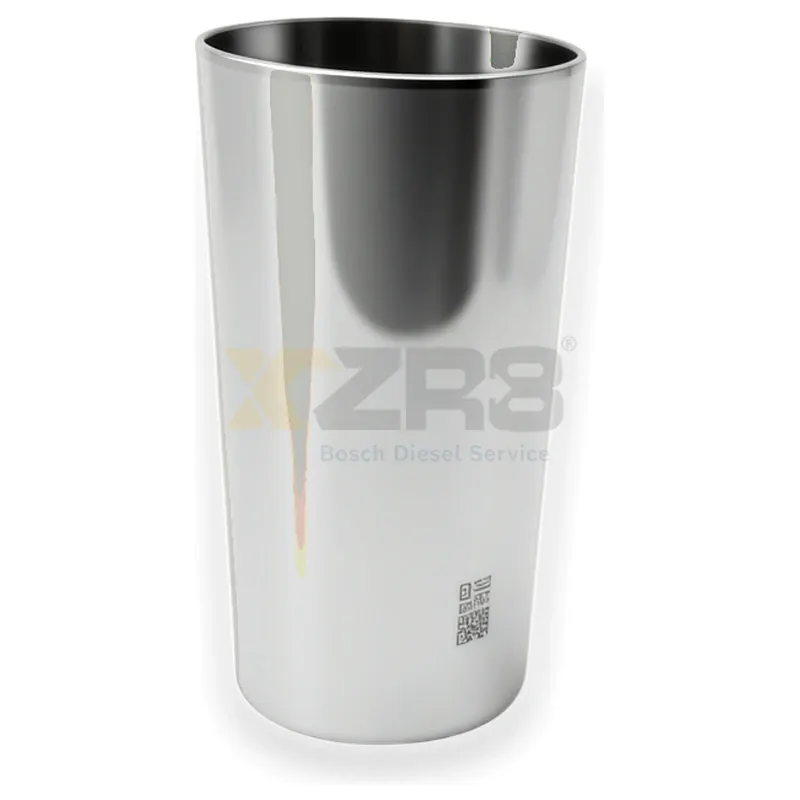

Cummins 3904166 Cylinder Liner Sleeve - Image 3

1 / 4

Cummins 3904166 Cylinder Liner Sleeve

Q: Which equipment and machinery is 3904166-cummins-cylinder-liner-sleeve compatible with?

Cummins 3904166 Cylinder Liner Sleeve (3904166-cummins-cylinder-liner-sleeve) is compatible with: New Holland FL145, New Holland FR120.2, New Holland LV80, New Holland U80, New Holland DC100, New Holland DC150LT, New Holland DC150PS, New Holland DC70, New Holland DC80, New Holland F140 VP.

Q: Which engines does part 3904166-cummins-cylinder-liner-sleeve fit?

Cummins 3904166 Cylinder Liner Sleeve fits the following engines: Cummins 4BT3.9, Cummins 6BT5.9, Cummins 4BTA3.9, Cummins 6BTA5.9, Cummins ISB, Cummins ISB6.7, Cummins QSB3.9, Cummins QSB4.5, Cummins QSB5.9, Cummins QSB6.7.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Bore Diameter	102 mm
Liner Type	Dry Salvage Sleeve
Material	Centrifugally Cast Boron Alloy Iron / Steel Sleeve
Overall Length	200 mm
Outer Diameter	105.1 mm
Wall Thickness	1.55 mm
Unit Weight	0.86 kg
Compatible Engine Displacement	3.9L / 5.9L
Superseded Part Numbers	3900396, 3903412

Manufacturer No.

390416639003963903412J9041664593904166752879317531123776191922F2229372P2229372J904166AMDS-3904166DS3904166OSM-3904166FP-3904166161630F020628K3904166HCC3904166

OEM Part No.

3904166J9041661536487734593904166752879317531123776191922F2229372P2229372

Engine Part No.

Cummins 4BT3.9Cummins 6BT5.9Cummins 4BTA3.9Cummins 6BTA5.9Cummins ISBCummins ISB6.7Cummins QSB3.9Cummins QSB4.5Cummins QSB5.9Cummins QSB6.7Cummins ISF3.8Cummins 4D102

Interchange No.

M-3904166FP-3904166161630F020628K3904166HCC3904166DS-3904166DS3904166OSJ904166AM

Fitment Vehicles

New Holland FL145New Holland FR120.2New Holland LV80New Holland U80New Holland DC100New Holland DC150LTNew Holland DC150PSNew Holland DC70New Holland DC80New Holland F140 VPNew Holland F140New Holland F140BNew Holland G80New Holland RG140.BNew Holland RG170.B VHP-QSBCase 680L

Engine System - Industrial Encyclopedia

OEM standard 102mm bore dry cylinder liner sleeve 3904166 for Cummins B-series 3.9L 5.9L diesel engines. Fits New Holland loaders, dozers, graders and Case backhoe loaders.
