Which equipment and machinery is 4384-sanden-ac-compressor-sd7h15 compatible with?

Sanden 4384 SD7H15 AC Compressor Assembly (4384-sanden-ac-compressor-sd7h15) is compatible with: Kenworth T800, Kenworth W900B, Peterbilt 365, Peterbilt 367.

Which engines does part 4384-sanden-ac-compressor-sd7h15 fit?

Sanden 4384 SD7H15 AC Compressor Assembly fits the following engines: MaxxForce DT, Paccar MX-13.

What are the OEM and cross-reference part numbers for 4384?

The OEM and interchange cross-reference numbers for Sanden 4384 SD7H15 AC Compressor Assembly include: 3611894-C91, 3611894C1, 03-1406, 54384, F69-6003-141, BT5-4384, CO 4384, PTAC54384, PTACSD4384, 19594-509-43843, 509-4384, 0302203230, 7822, 168541, AESCXS4384.

What are the technical specifications of 4384-sanden-ac-compressor-sd7h15?

Key technical specifications of Sanden 4384 SD7H15 AC Compressor Assembly: compressor_end_model: SD7H15; displacement: 155 cc/rev; cylinders: 7; rated_voltage: 12V; clutch_type: 6-Groove Serpentine; clutch_diameter: 125 mm.

Sanden 4384 SD7H15 AC Compressor Assembly - Image 1

Sanden 4384 SD7H15 AC Compressor Assembly - Image 2

1 / 3

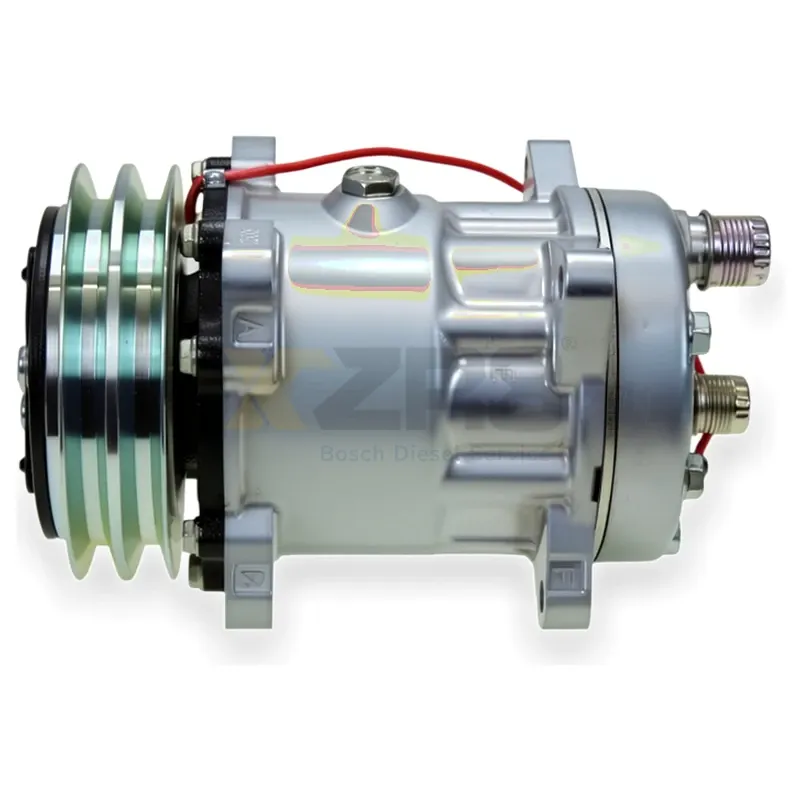

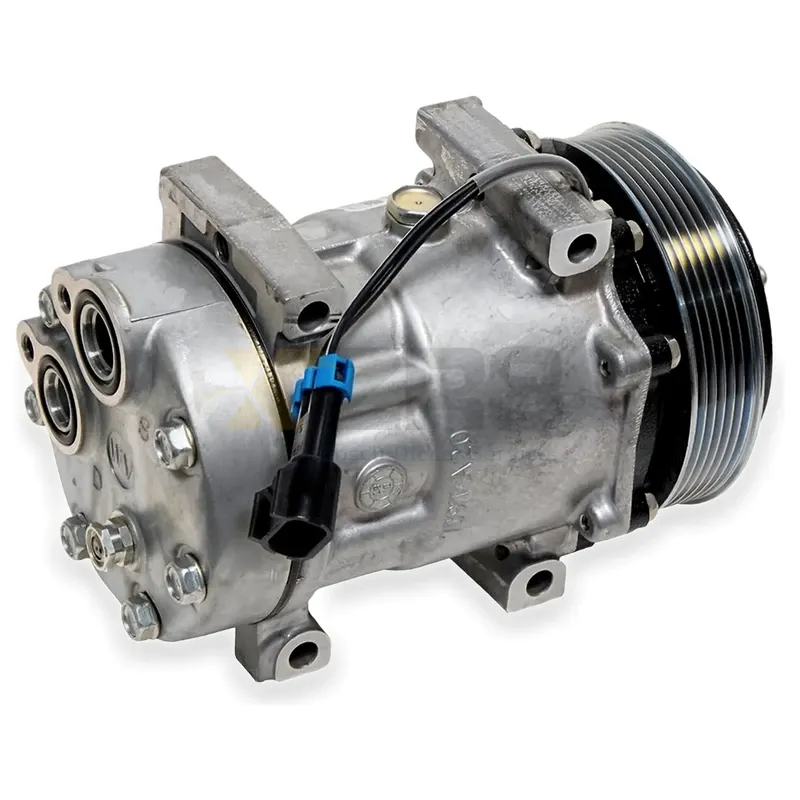

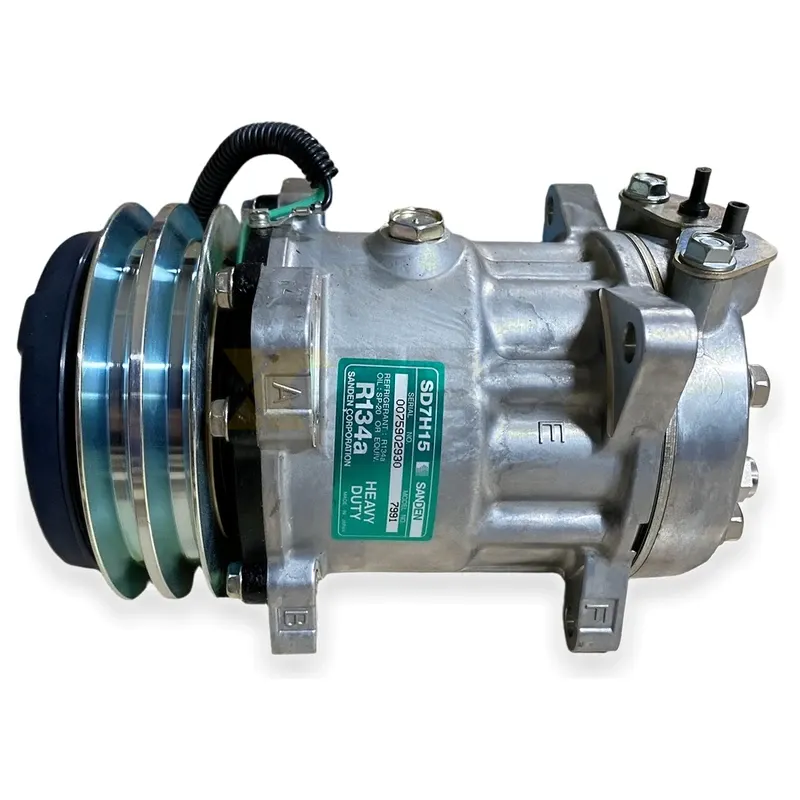

Sanden 4384 SD7H15 AC Compressor Assembly

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Compressor End Model	SD7H15
Displacement	155 cc/rev
Cylinders	7
Rated Voltage	12V
Clutch Type	6-Groove Serpentine
Clutch Diameter	125 mm
Mount Type	Direct Mount Vertical Pad Head (GSA/GQ)
Refrigerant	R134a / R12
Oil Type	PAG 46
Electrical Connector	2-Wire Female Packard 15300002
Thermal Protection	Thermal Fuse Diode

Manufacturer No.

4384SD7H15F69-6003-1411101143BT5-4384CO 4384PTAC54384PTACSD438415-SD4384N509-438419594-509-43843

OEM Part No.

3611894-C913611894C103-140654384F69-6003-141

Engine Part No.

MaxxForce DTPaccar MX-13

Interchange No.

BT5-4384CO 4384PTAC54384PTACSD438419594-509-43843509-438403022032307822168541AESCXS4384

Fitment Vehicles

Kenworth T800Kenworth W900BPeterbilt 365Peterbilt 367

Cooling System - Industrial Encyclopedia

OEM Sanden SD7H15 12V A/C compressor assembly, 155cc displacement, 6-groove serpentine clutch, direct mount for Kenworth T800 W900B and Peterbilt 365 367 heavy-duty trucks.
