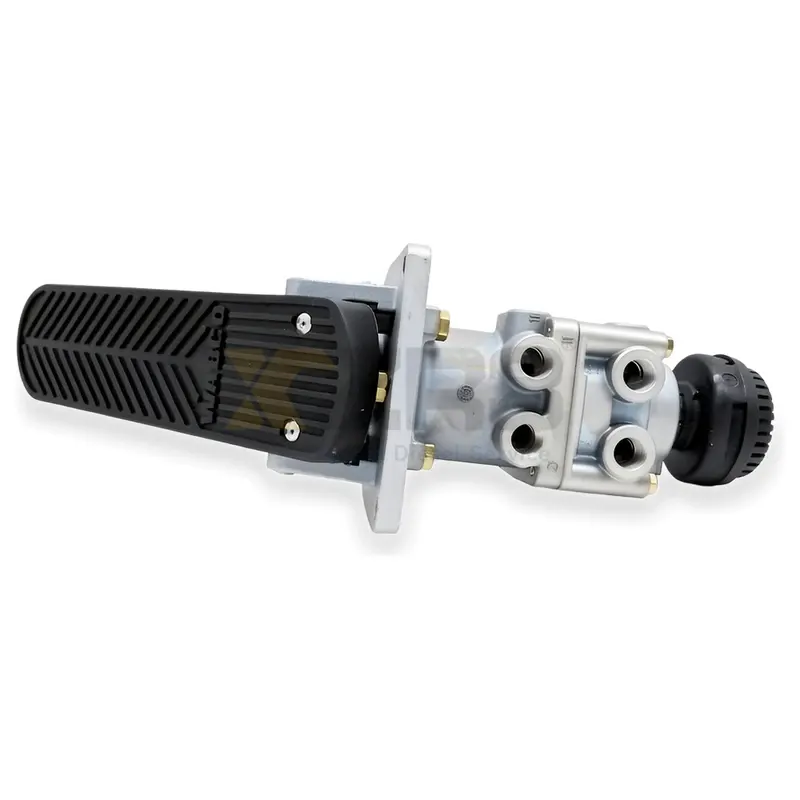

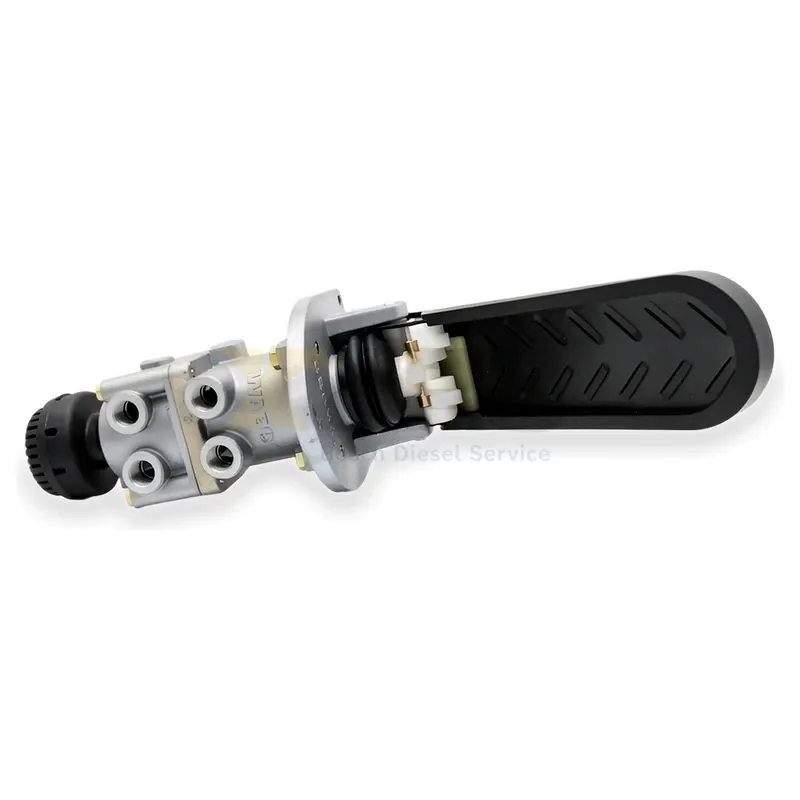

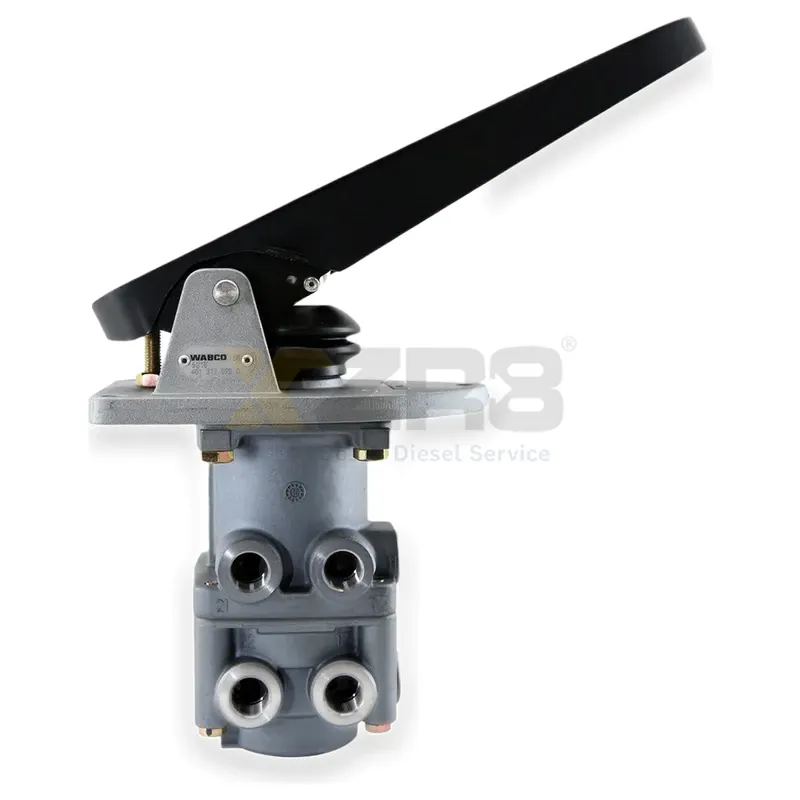

WABCO 4613170230 Foot Brake Valve Assembly
| Operating Pressure | 10 bar (1.0 MPa) |
| Port Thread Size | M22 x 1.5 |
| Circuit Type | Dual Circuit |
| Housing Material | Die-Cast Aluminum Alloy |
| Actuation Type | Pneumatic Pedal |
| Weight | 2.8 kg |
| Dimensions LxWxH | 415 x 120 x 210 mm |
Manufacturer No.
4613170230
OEM Part No.
1611135500001
Interchange No.
3514-00058351400058
Braking System - Industrial Encyclopedia
OEM specification 4613170230 pneumatic foot brake valve for Foton and Yutong commercial buses, featuring dual-circuit aluminum housing for reliable service brake actuation in heavy-duty air brake systems.
