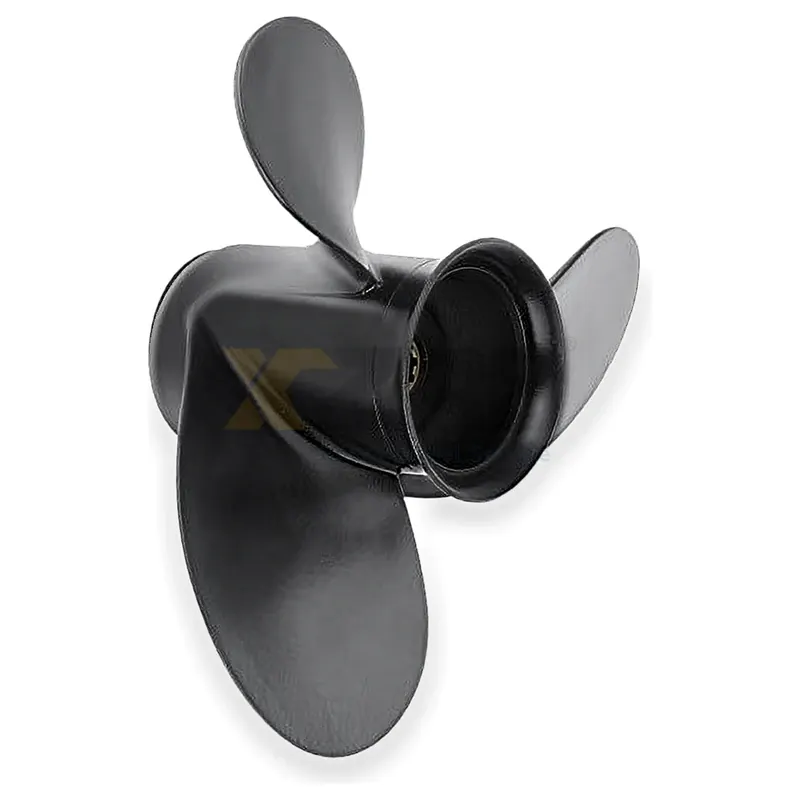

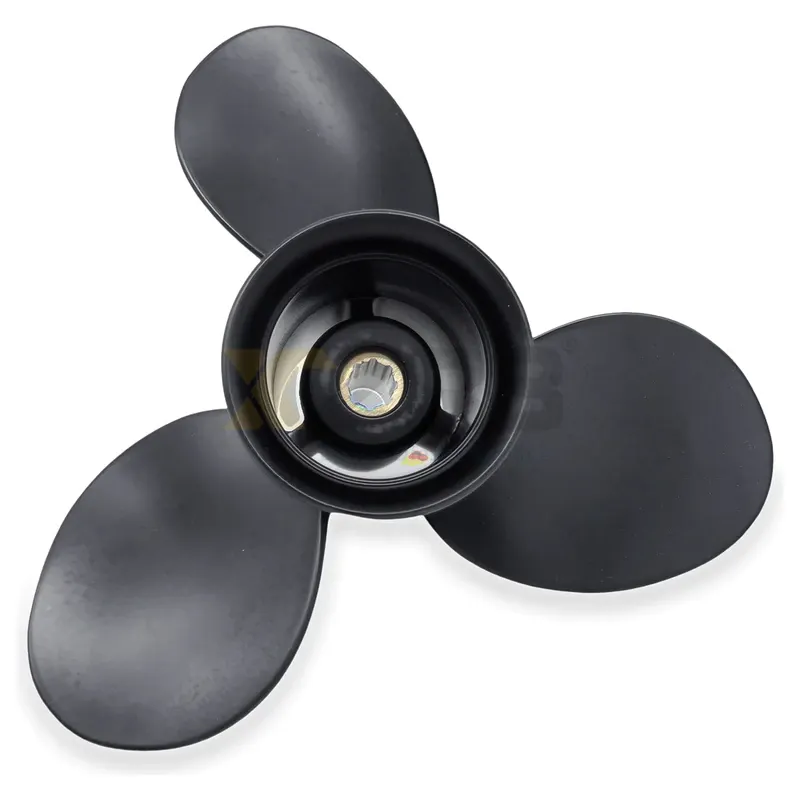

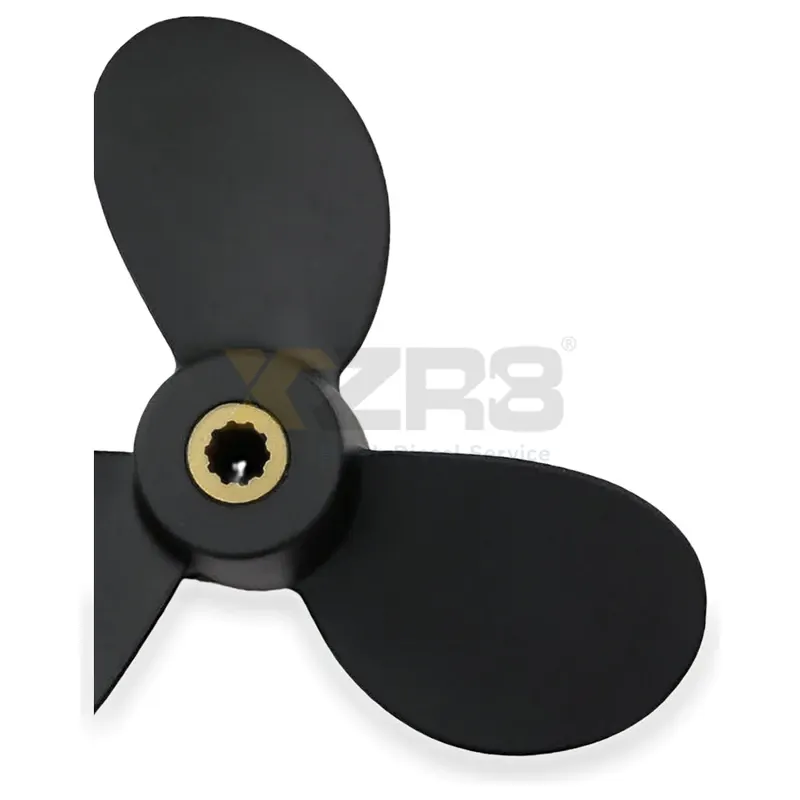

Mercury Marine 48-828156A12 Black Max Outboard Propeller
| Diameter | 9 in |
| Pitch | 9 in |
| Rotation Direction | Right Hand |
| blades_per_deck | 3 |
| Material | Aluminum (Mercalloy) |
| Spline Count | 8 Tooth |
| Gearcase Size | 2-1/2 in |
| Hub Type | Flo-Torq Rubber Hub (Pressed-in) |
| Finish | Phantom Black EDP (Electrodeposition Paint) |
| Weight | 5 lb (2.27 kg) |
| Max Supported Horsepower | 250 HP |
| Max Operating Speed | 50 MPH |
Manufacturer No.
48-828156A12828156A12BLMX 9X9
OEM Part No.
48-828156A12
Engine Part No.
Mercury 6 HP 2-StrokeMercury 8 HP 2-StrokeMercury 9.9 HP 2-StrokeMercury 15 HP 2-StrokeMercury 9.9 HP FourStroke (1995-2004)Mercury 15 HP FourStroke (thru 2007)Mariner 9.9 HP FourStrokeMariner 15 HP FourStrokeForce 9.9 HP (1996-1998)Force 15 HP (1996-1998)SeaPro 10 HPSeaPro 15 HPMarathon 10 HPMarathon 15 HP
Interchange No.
828156A12BLMX 9X9
Fitment Vehicles
Mercury 6-15 HP OutboardMariner 6-15 HP OutboardForce 9.9-15 HP OutboardSeaPro 10-15 HP OutboardMarathon 10-15 HP Outboard
Engine System - Industrial Encyclopedia
Genuine Mercury Black Max 9-inch diameter x 9-inch pitch 3-blade aluminum propeller with 8-tooth spline for 6-15 HP Mercury and Mariner outboards, featuring Flo-Torq rubber hub for shock absorption.
