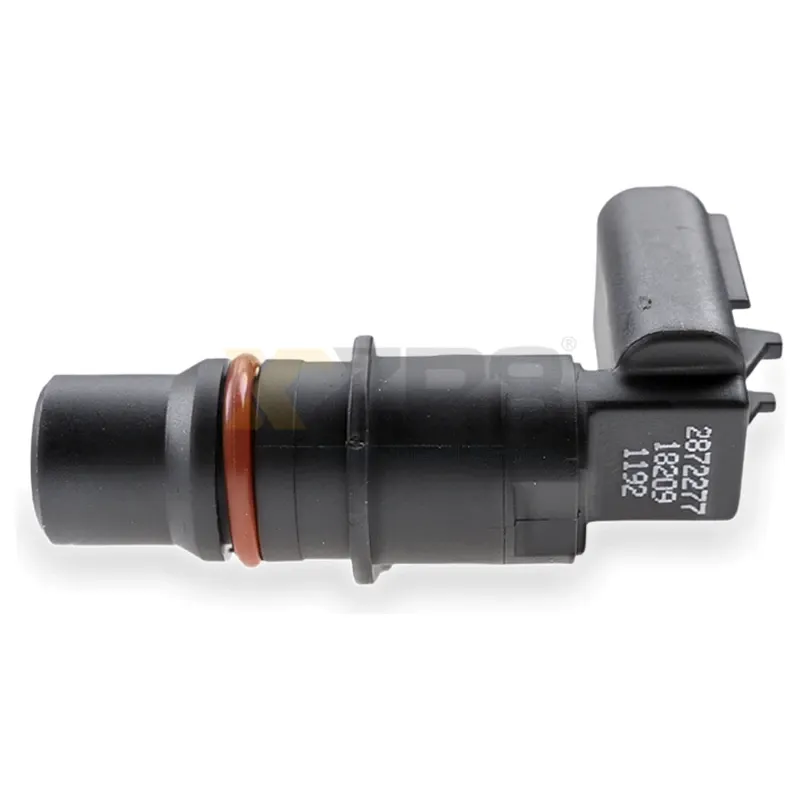

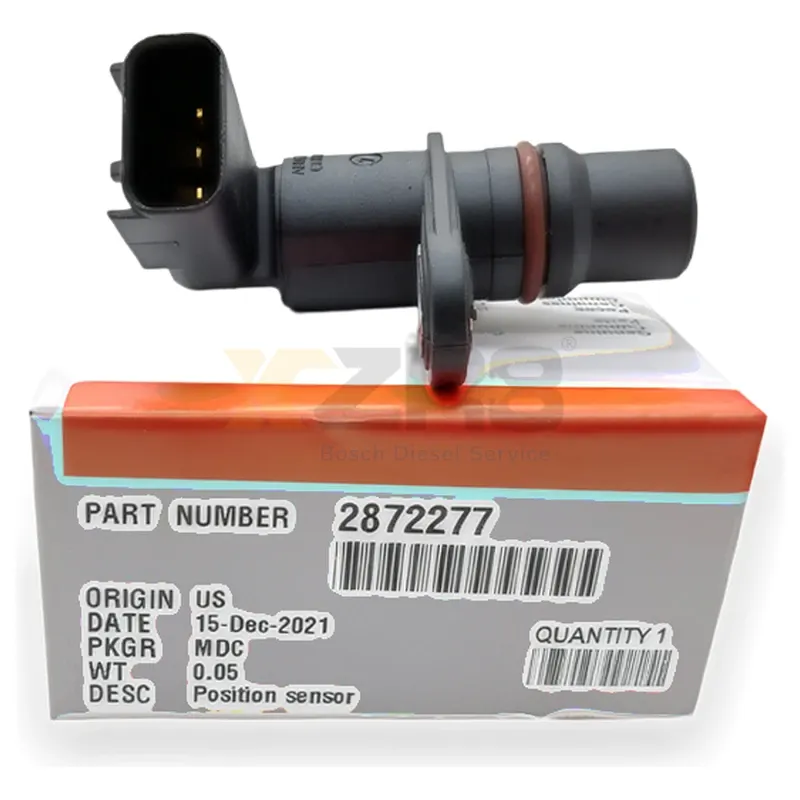

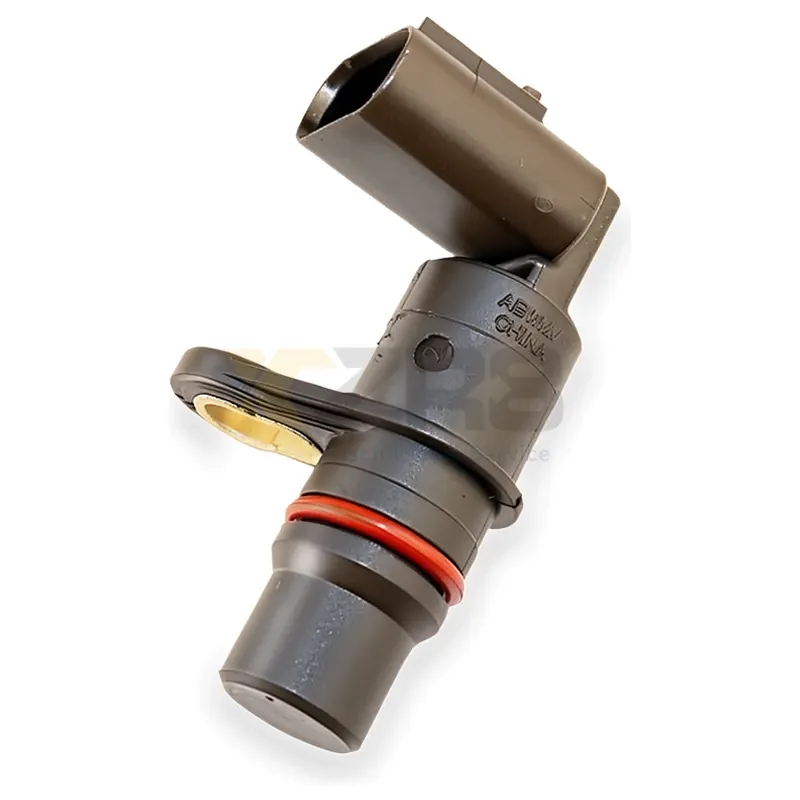

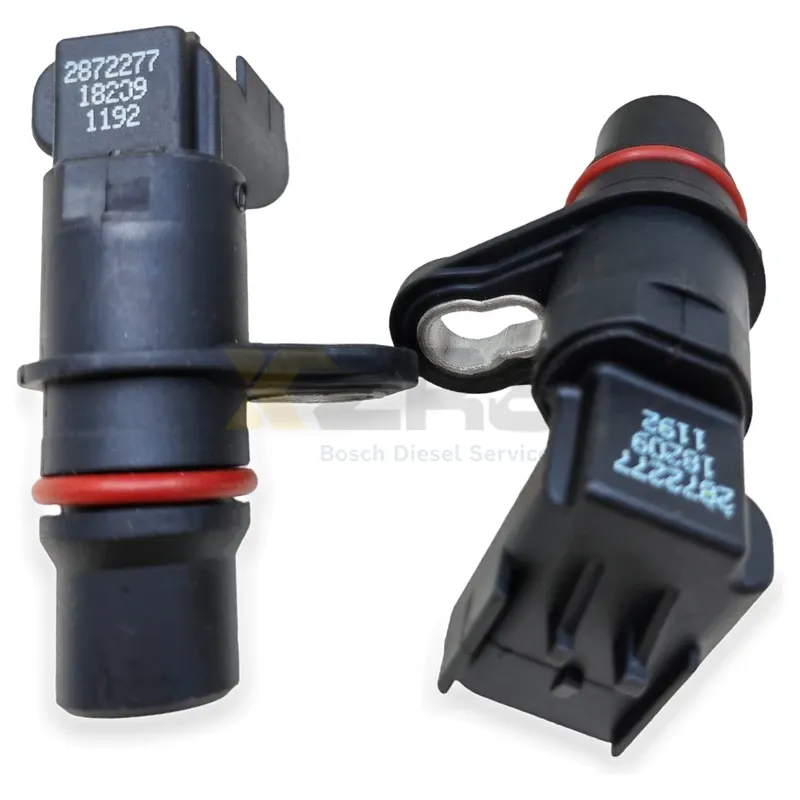

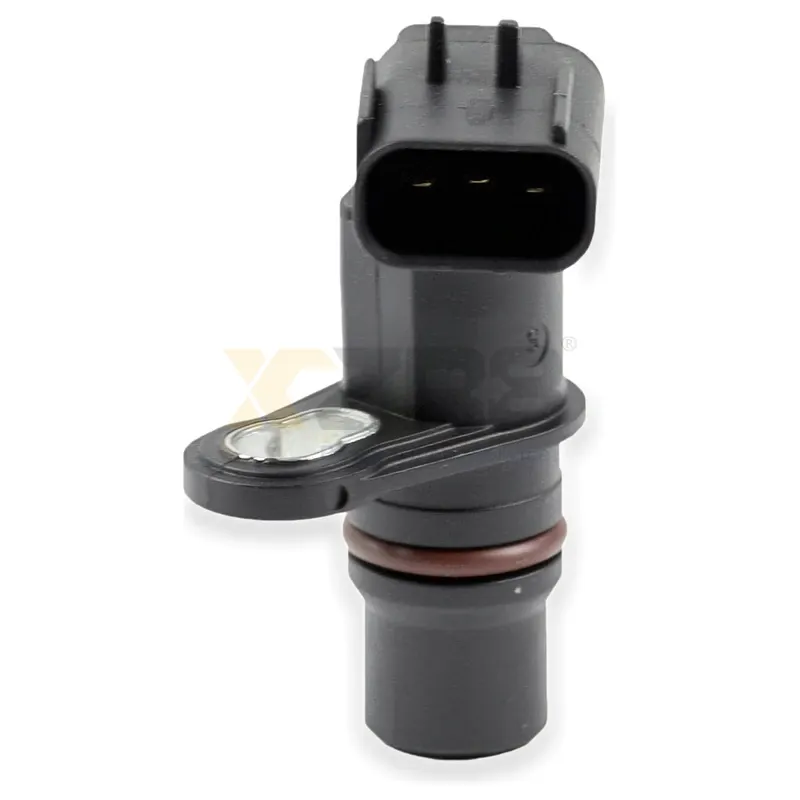

Cummins 4921684 Camshaft/Crankshaft Position Sensor 2872277 Compatible with Dodge Ram ISBe ISDe 6.7L Diesel Engine
VIEW PRICELog in to view your customer price
| Product Type | Camshaft/Crankshaft Position Sensor |
| Part Number | 4921684 |
| Interchange Part Number | 2872277 |
| Material | Engineering Plastic and Metal Inductive Head |
| Working Principle | Hall effect/magnetic electrodynamic (varies according to engine model) |
| Power Voltage | Usually 5V or 12V (Refer to Specific Engine Wiring Diagram) |
| Applicable Displacement | 5.9L, 6.7L, 8.3L, 9.0L, etc. |
| Compatible Engine Series | Cummins ISBe, ISDe, ISLe, ISX, QSB, QSC, QSL, ISM, QSM, M11, 4BT, 6BT, 6CT, KTA, NTA, ISF |
| Weight | Approx. 0.03 kg |
| Original | Offering OEM/Original Equipment Manufacturer/Aftermarket Brands (such as ATP, Seapple, Embellu, Advance Truck Parts) |
| Installation | Engine Cylinder Block Side (near flywheel housing or timing gear chamber) |
Manufacturer No.
28722775179099AB34085303408531-NX340853134085294921686492168755942755594275NX289734243272305491994
OEM Part No.
4921684
Engine Part No.
ISBeISDeISLeISX 5.9LISX 6.7LQSB6.7QSC8.3QSL9ISMQSMM114BT6BT6CTKTA19KTA38NTA855ISF2.8ISF3.8
Fitment Vehicles
Dodge Ram 2500Dodge Ram 3500DongfengFotonHyundaiFord cargoOtokarXCMG Crane
Electrical and Electronic System - Industrial Encyclopedia
Professional supply of Cummins original and compatible brand camshaft position sensor 4921684 (including interchange number 2872277). This sensor is suitable for Cummins ISBe, ISDe, ISLe, 4BT, 6BT, 6CT, QSL9, M11, ISM, QSM, KTA19, NTA855, ISF2.8/3.8 series diesel engines, widely fitted to Dodge Ram, Dongfeng, Foton, Hyundai, Ford and other trucks and construction machinery. As a key component of the engine management system, it accurately detects the position of the camshaft and crankshaft to ensure the accuracy of ignition timing and fuel injection. Please check the original vehicle part number before purchasing, supporting OEM replacement and aftermarket options.
