Which equipment and machinery is 523900-lippert-slide-out-motor compatible with?

Lippert 523900 Slide Out Motor Assembly (523900-lippert-slide-out-motor) is compatible with: Fleetwood Bounder, RV Power Gear Slide-Out Systems, Motorhome Slide-Out Rooms, Fifth Wheel Slide-Out Rooms, Travel Trailer Slide-Out Rooms.

What are the OEM and cross-reference part numbers for 523900?

The OEM and interchange cross-reference numbers for Lippert 523900 Slide Out Motor Assembly include: LC368417, 368417, 368190, K01469B300, K01250-C600, K01250C600, 521976W, 521976, 523983, 524327, 524097, 520819, 522967, 523036, 523931.

What are the technical specifications of 523900-lippert-slide-out-motor?

Key technical specifications of Lippert 523900 Slide Out Motor Assembly: rated_voltage: 12V DC; motor_type: Permanent Magnet Parallel Shaft Gearmotor; max_torque: 850 in-lbs (96 Nm); rated_speed: 9 RPM; max_input_current: 17 Amps; torque_rating: 400 in-lbs.

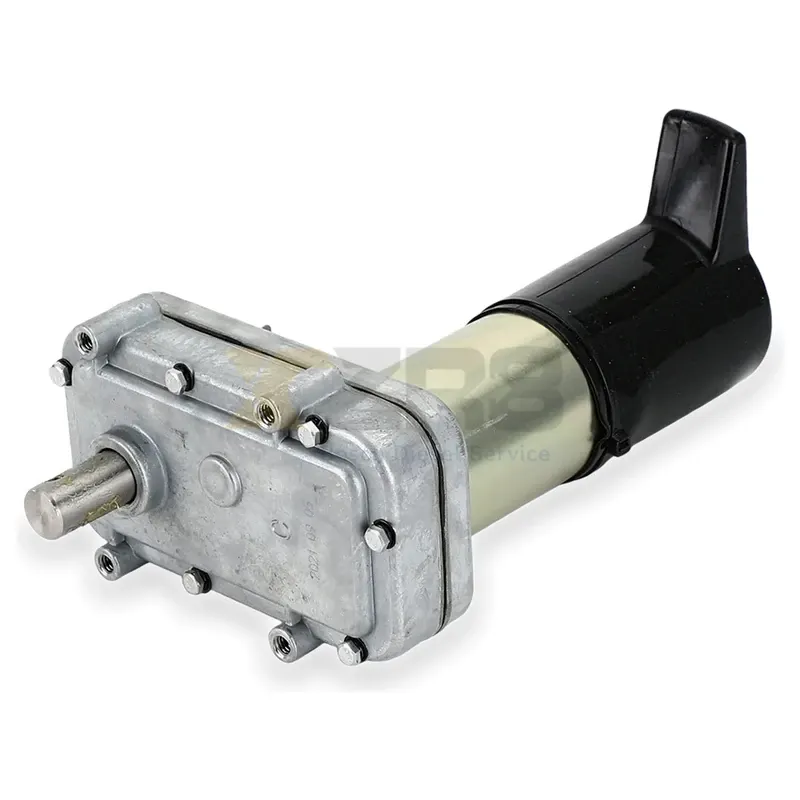

Lippert 523900 Slide Out Motor Assembly - Image 1

1 / 2

Lippert 523900 Slide Out Motor Assembly

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Rated Voltage	12V DC
Motor Type	Permanent Magnet Parallel Shaft Gearmotor
Max Torque	850 in-lbs (96 Nm)
Rated Speed	9 RPM
Maximum Input Current	17 Amps
Torque Rating	400 in-lbs
Current	9.5 Amps
No Load Voltage	14 RPM
Gear Ratios	131:1
Brake Type	12V DC Electro-Mechanical with Manual Release
Housing Material	Cast Aluminum Gear Housing & End Cap, Steel Motor Frame
Shaft Configuration	Dual Shaft (1.22 in x 0.75 in Diameter)
Weight	11 lbs (5.0 kg)

Manufacturer No.

523900NBK-20535

OEM Part No.

LC368417368417368190K01469B300K01250-C600K01250C600

Interchange No.

521976W52197652398352432752409752081952296752303652393152424652349852343252314352352952409452441K01439E300K01469C300

Fitment Vehicles

Fleetwood BounderRV Power Gear Slide-Out SystemsMotorhome Slide-Out RoomsFifth Wheel Slide-Out RoomsTravel Trailer Slide-Out Rooms

Electrical And Electronic Systems - Industrial Encyclopedia

OEM replacement 12V DC permanent magnet parallel shaft gearmotor for RV slide-out systems. Features 850 in-lbs max torque, electro-mechanical brake with manual release, and cast aluminum housing.
