Which equipment and machinery is 5f9z9e926b-ford-throttle-body-assembly compatible with?

Ford 5F9Z-9E926-B Throttle Body Assembly (5f9z9e926b-ford-throttle-body-assembly) is compatible with: 2005-2007 Ford Five Hundred, 2005-2007 Ford Freestyle, 2005-2007 Mercury Montego.

Which engines does part 5f9z9e926b-ford-throttle-body-assembly fit?

Ford 5F9Z-9E926-B Throttle Body Assembly fits the following engines: Ford 3.0L V6 DOHC EFI Modular, Ford Duratec 30 3.0L V6.

What are the OEM and cross-reference part numbers for 5F9Z-9E926-B?

The OEM and interchange cross-reference numbers for Ford 5F9Z-9E926-B Throttle Body Assembly include: 5F9Z-9E926-B, 5F9Z9E926B, 6F9Z9E926A, S20025, ETB0045, TB1016, 67-6007, 67-6008, 977-586, 6F9Z9E926AA, 5F9Z9E926AA.

What are the technical specifications of 5f9z9e926b-ford-throttle-body-assembly?

Key technical specifications of Ford 5F9Z-9E926-B Throttle Body Assembly: bore_size: 60 mm; connector_type: 6 Pin Male; housing_material: Aluminum; sensor_element: Yes (Integrated TPS); actuator_type: Electronic DC Motor; heated: Yes (with coolant passage).

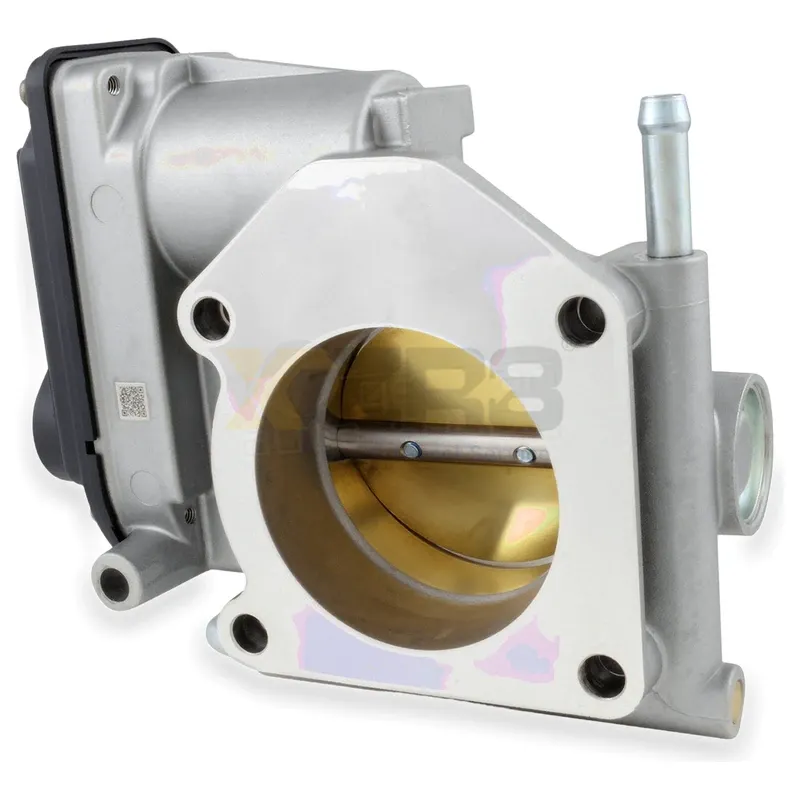

Ford 5F9Z-9E926-B Throttle Body Assembly - Image 1

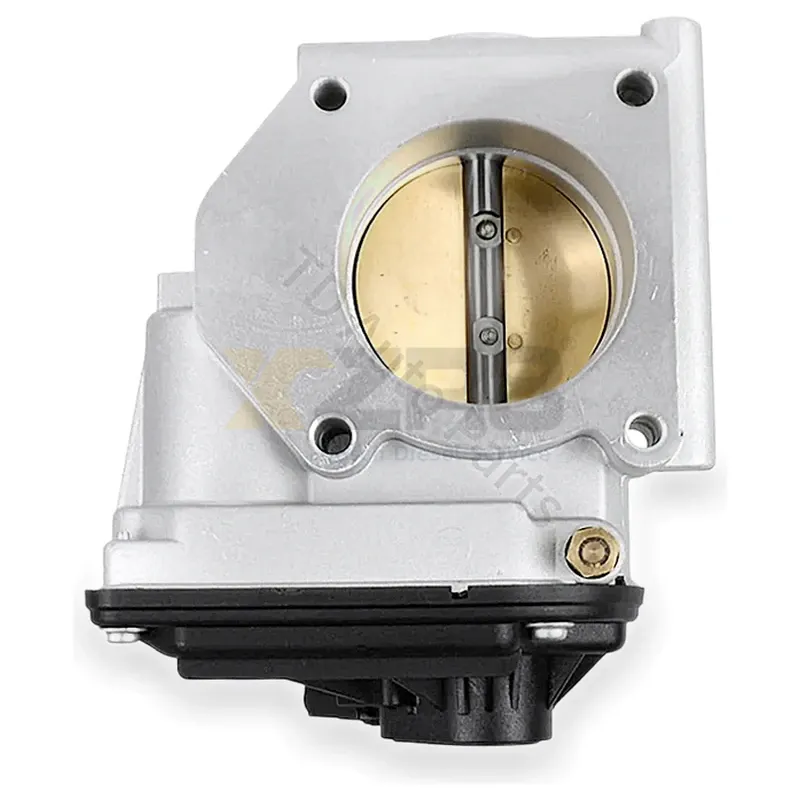

Ford 5F9Z-9E926-B Throttle Body Assembly - Image 2

1 / 3

Ford 5F9Z-9E926-B Throttle Body Assembly

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

bore_size	60 mm
Connector Type	6 Pin Male
Housing Material	Aluminum
Sensor Element	Yes (Integrated TPS)
Actuator Type	Electronic DC Motor
Heated	Yes (with coolant passage)
Divert Air Valve Control	Electronic (No separate IAC valve)
Operating Voltage	12V
Internal Diameter	2.75 in (69.85 mm)

Manufacturer No.

5F9Z-9E926-B5F9Z9E926B5F9Z9E926AA6F9Z9E926A6F9Z9E926AAETB0045S20025TB101667-600767-6008977-586

OEM Part No.

5F9Z-9E926-B5F9Z9E926B6F9Z9E926A

Engine Part No.

Ford 3.0L V6 DOHC EFI ModularFord Duratec 30 3.0L V6

Interchange No.

S20025ETB0045TB101667-600767-6008977-5866F9Z9E926A6F9Z9E926AA5F9Z9E926AA

Fitment Vehicles

2005-2007 Ford Five Hundred2005-2007 Ford Freestyle2005-2007 Mercury Montego

Electrical And Electronic Systems - Industrial Encyclopedia

Genuine Ford electronic throttle body assembly with 60mm bore, integrated actuator motor and TPS, for 2005-2007 Ford Five Hundred, Freestyle and Mercury Montego 3.0L V6 engines.
