Which equipment and machinery is 6271-81-9201-komatsu-position-sensor-assembly compatible with?

Komatsu 6271-81-9201 Position Sensor Assembly (6271-81-9201-komatsu-position-sensor-assembly) is compatible with: Komatsu PC220LC-8, Komatsu PC240LC-10, Komatsu PC360LC-10, Komatsu PC390LC-10, Komatsu PW98MR-8, Komatsu WA200-6, Komatsu WA250-6, Komatsu WA320-7, Komatsu WA380-6.

Which engines does part 6271-81-9201-komatsu-position-sensor-assembly fit?

Komatsu 6271-81-9201 Position Sensor Assembly fits the following engines: SAA4D107E-1, SAA4D95LE-5, SAA6D107E.

What are the OEM and cross-reference part numbers for 6271-81-9201?

The OEM and interchange cross-reference numbers for Komatsu 6271-81-9201 Position Sensor Assembly include: 6271-81-9201, 6271-81-9200, 3408529.

What are the technical specifications of 6271-81-9201-komatsu-position-sensor-assembly?

Key technical specifications of Komatsu 6271-81-9201 Position Sensor Assembly: operating_voltage: 5V DC; signal_type: Analog Voltage (0.5V - 4.5V); ingress_protection: IP67; operating_temperature_range: -40°C to +85°C; connector_type: Deutsch DT04-3P Equivalent; sensor_technology: Hall Effect Non-Contact.

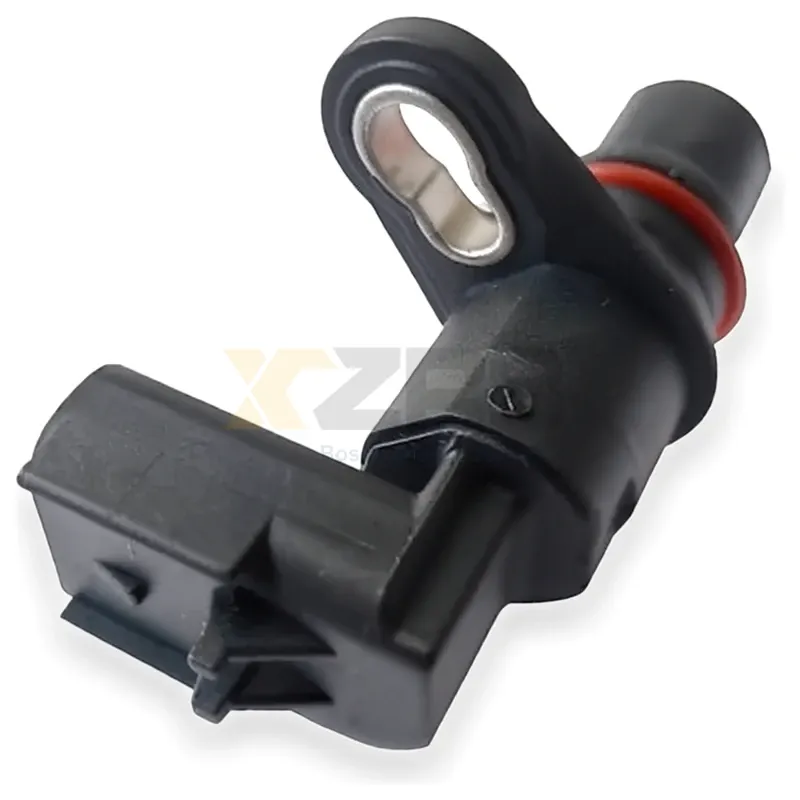

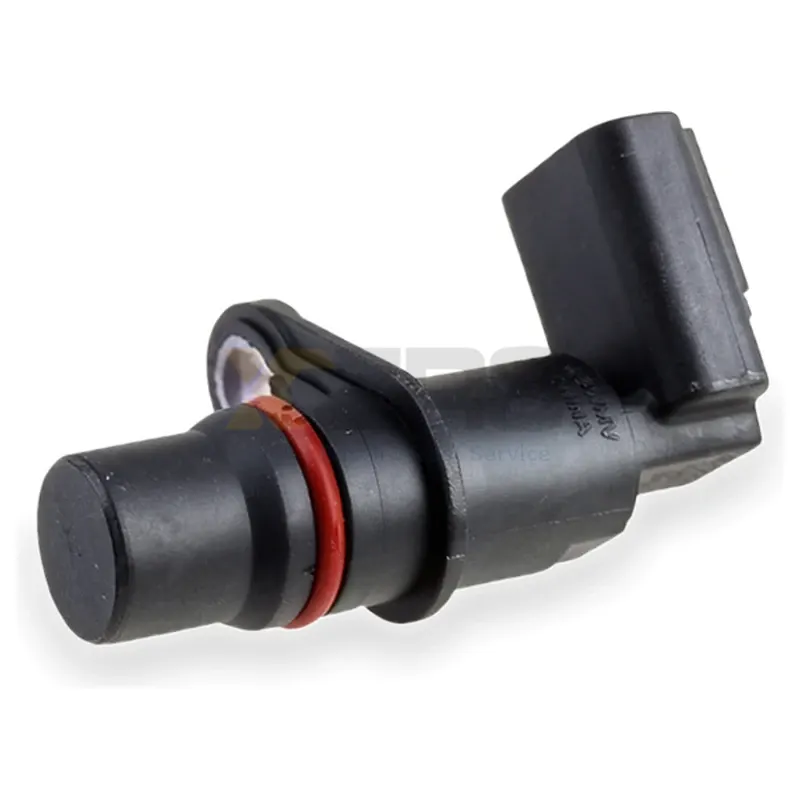

Komatsu 6271-81-9201 Position Sensor Assembly - Image 1

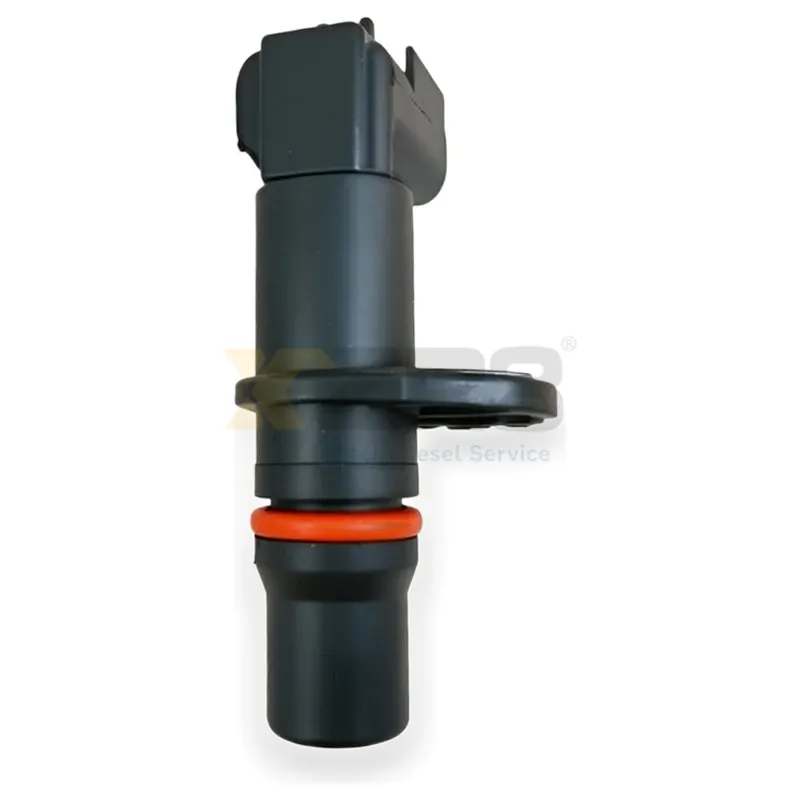

Komatsu 6271-81-9201 Position Sensor Assembly - Image 2

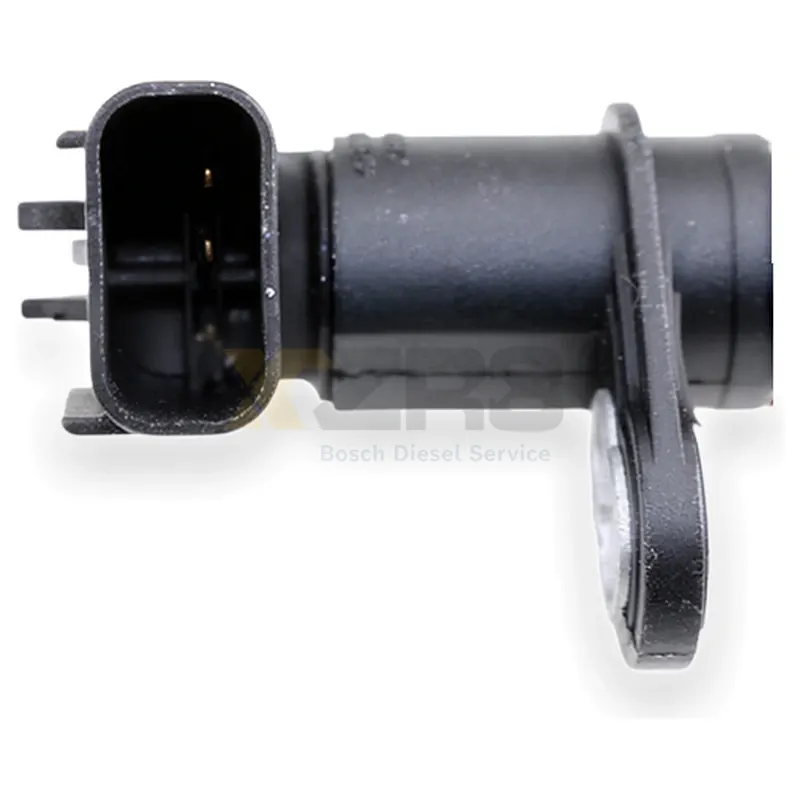

Komatsu 6271-81-9201 Position Sensor Assembly - Image 3

1 / 4

Komatsu 6271-81-9201 Position Sensor Assembly

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Operating Voltage	5V DC
Signal Type	Analog Voltage (0.5V - 4.5V)
Ingress Protection	IP67
Operating Temperature Range	-40°C to +85°C
Connector Type	Deutsch DT04-3P Equivalent
Sensor Technology	Hall Effect Non-Contact

Manufacturer No.

6271-81-920162718192016271-81-9200

OEM Part No.

6271-81-9201

Engine Part No.

SAA4D107E-1SAA4D95LE-5SAA6D107E

Interchange No.

6271-81-92003408529

Fitment Vehicles

Komatsu PC220LC-8Komatsu PC240LC-10Komatsu PC360LC-10Komatsu PC390LC-10Komatsu PW98MR-8Komatsu WA200-6Komatsu WA250-6Komatsu WA320-7Komatsu WA380-6

Electrical And Electronic Systems - Industrial Encyclopedia

OEM specification position sensor assembly 6271-81-9201 for Komatsu excavators and wheel loaders including PC220LC-8, PC240LC-10, WA200-6, and WA320-7 models.
