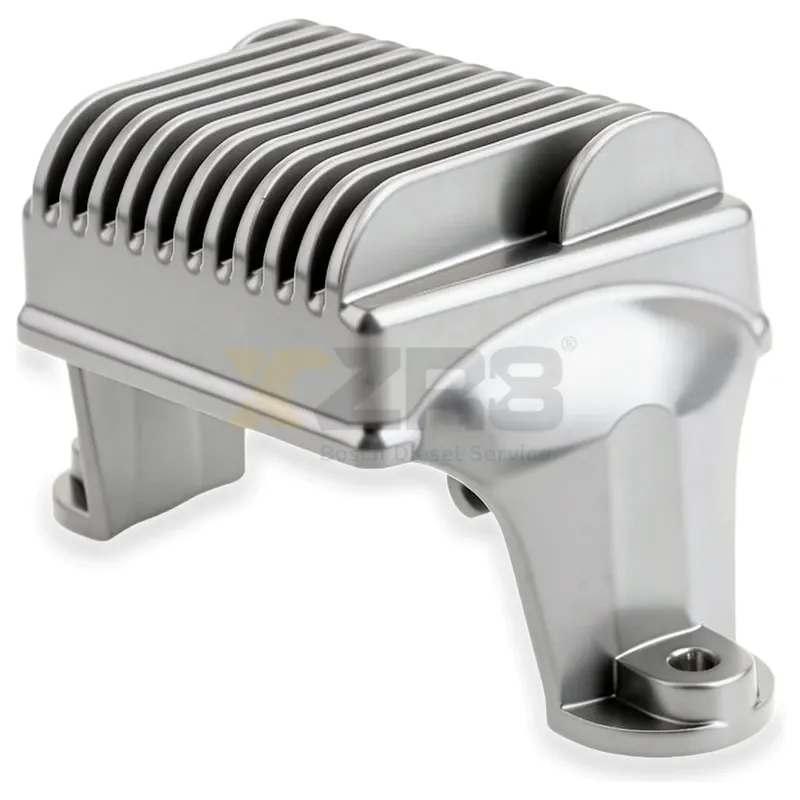

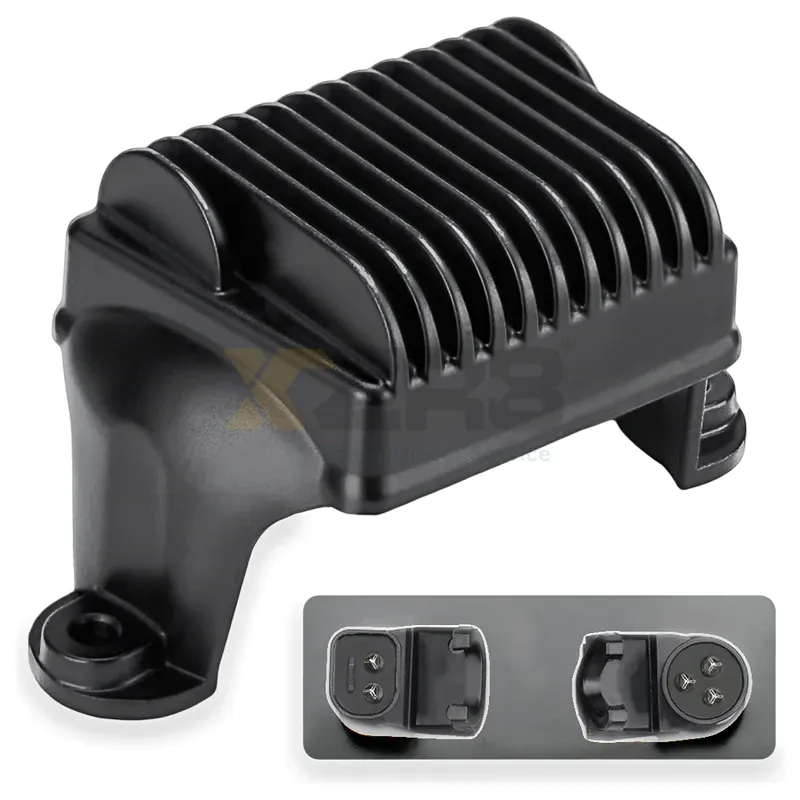

Harley-Davidson 74505-09 Voltage Regulator Rectifier Assembly
Express Free Shipping
3-Year Factory Warranty
90-Day Hassle-Free Returns
24/7 Dedicated Support
| Rated Voltage | 12V |
| Regulated Voltage | 14.5V ±0.5V |
| Rated Amperage | 45A |
| Polarity | Negative Ground |
| Connector Type | 5-Pin |
| Housing Material | Aluminum Heat Sink |
| Regulator Type | Solid State Shunt |
| Test Method | M6010 |
| Voltage Setting | 14.7V |
Manufacturer No.
74505-0974505-09A
OEM Part No.
74505-0974505-09A
Engine Part No.
Harley-Davidson Twin Cam 96Harley-Davidson Twin Cam 103
Interchange No.
2112-0793FRRHL003H0505H0505C49826949-826949827649-8276200096416204RMS021-10877174505097450509A
Fitment Vehicles
Harley-Davidson FLHT Electra Glide 2009-2016Harley-Davidson FLTR Road Glide 2009-2016Harley-Davidson FLHR Road King 2009-2016Harley-Davidson FLHX Street Glide 2009-2016Harley-Davidson FLHTCUSE CVO Ultra Classic 2010-2016Harley-Davidson FLHTK Electra Glide Ultra Limited 2010-2016Harley-Davidson FLHXXX Tri Glide Ultra 2009-2016
Electrical And Electronic Systems - Industrial Encyclopedia
OEM 45A 12V voltage regulator rectifier for Harley-Davidson Touring models 2009-2016, regulates charging system output to 14.5V ±0.5V, direct replacement for 74505-09A.
