| Rated Voltage | 12V |
| Cranking Power | 7.3 kW |
| Mounting Type | SAE 3 |
| Pinion Teeth | 11 |
| Pinion Pitch | 6/8 |
| Solenoid Position | 82 degrees |
| Rotation | CW (Clockwise) |
| Polarity | Insulated |
| Over Crank Protection | No |
| Starter Type | Gear Reduction (Planetary) |
| Weight | 14 kg |
| Overall Length | 36.4 cm |
Manufacturer No.
820074239MTDR 8200742DEL8200742
OEM Part No.
282-0115201-39114404475STR-4292V1-4044758200088820016382001648200165820030836046653604665RX
Engine Part No.
Detroit Diesel Series 60Cummins ISXCummins ISMCummins M11Cummins N14Cummins QSMCummins QSX
Interchange No.
M110603M39308TY39MT05S12287119024S-80367
Fitment Vehicles
Kenworth T680Kenworth W900Peterbilt 386Peterbilt 579Peterbilt 389
Engine System - Industrial Encyclopedia

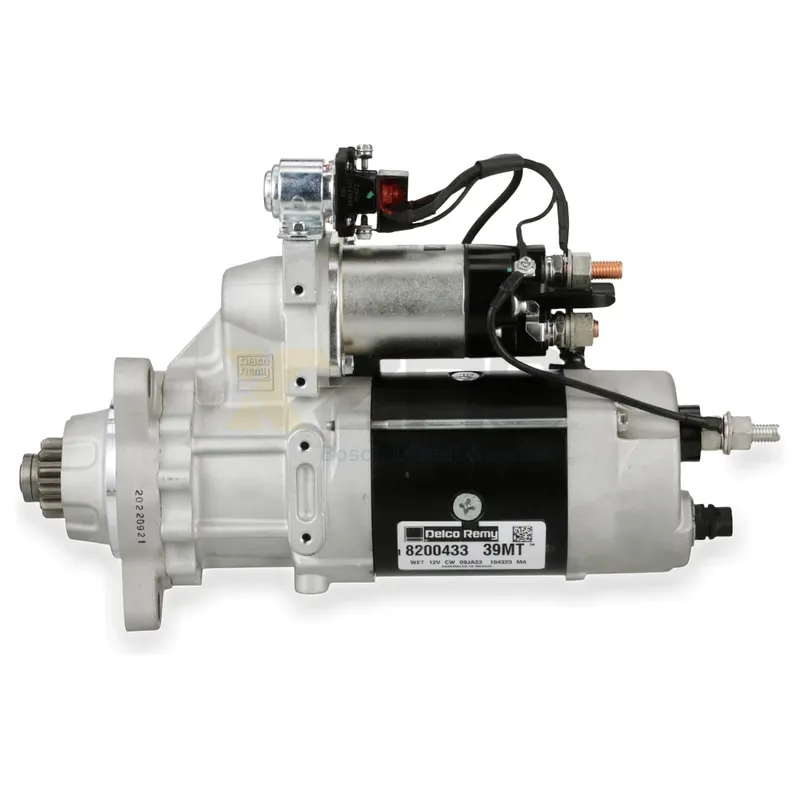

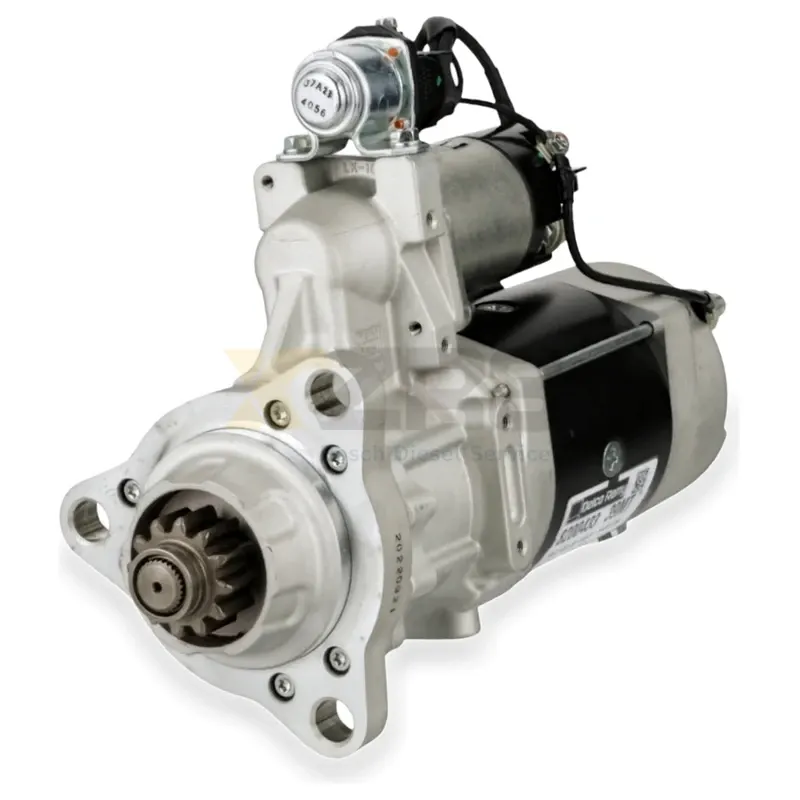

OEM 12V 7.3kW gear reduction starter with SAE 3 mounting, 11-tooth 6/8 pitch pinion, 82-degree solenoid position, CW rotation, insulated polarity for heavy-duty truck applications.
