Which equipment and machinery is bosch-2469403530-overflow-valve-weichai-cp22 compatible with?

Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584 (bosch-2469403530-overflow-valve-weichai-cp22) is compatible with: Shaanxi Auto Heavy Duty Truck (DeLion M3000/X3000 etc.), FAW Jiefang J6 series, Weichai Power for Excavators/Loaders, Diesel Generator Set, Agricultural combine/Tractor.

Which engines does part bosch-2469403530-overflow-valve-weichai-cp22 fit?

Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584 fits the following engines: Weichai WP10, Weichai WP12, Weichai WP13, Weichai WP10, Weichai WP12, Weichai WP13.

What are the technical specifications of bosch-2469403530-overflow-valve-weichai-cp22?

Key technical specifications of Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584: product_name: Overflow valve / Pressure limiting valve / Safety valve; compatible_pump: Bosch CP2.2 Common Rail Pump; bosch_part_number: 2469403530; wancai_original_part_number: 612600081584; opening_pressure: Approx. 1800 - 2200 bar (depending on specific engine ECU calibration); thread_specification: M14 x 1.5 (Metric Fine Thread).

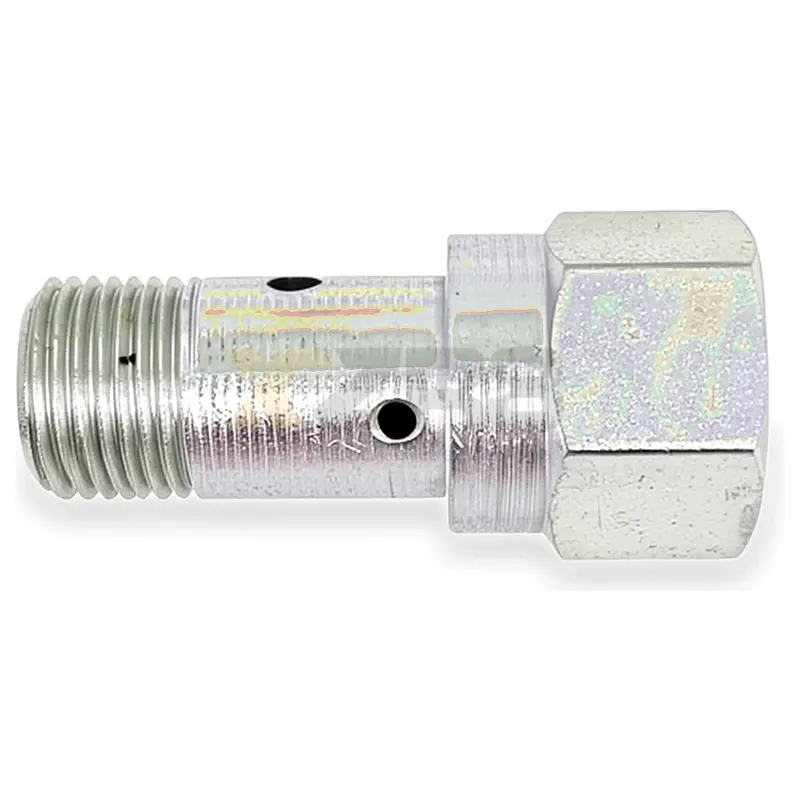

Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584 - Image 1

1 / 5

Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584

Q: What are the OEM and cross-reference part numbers for 2469403530?

The OEM and interchange cross-reference numbers for Bosch 2469403530 CP2.2 Common Rail Pump Overflow Valve/Pressure Limit Valve for Weichai WP10 WP12 Engine Original Part Number 612600081584 include: 612600081584, 0445020116, 0445020120, 0445020121, 612630030057, 1110010015, F00RJ02266.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Product Name	Overflow valve / Pressure limiting valve / Safety valve
Compatible Pump	Bosch CP2.2 Common Rail Pump
Bosch Part Number	2469403530
Wancai Original Part Number	612600081584
Opening Pressure	Approx. 1800 - 2200 bar (depending on specific engine ECU calibration)
Thread Specification	M14 x 1.5 (Metric Fine Thread)
Material	High-strength alloy steel body + Stainless steel valve stem/seat
Seal	Metal cone seal / O-ring auxiliary seal
Working Medium	Diesel (including biodiesel B7/B20)
Operating Temperature	-40°C ~ +120°C
Installation	High-pressure Pump Body Overflow Port/Common Rail Tube Pressure Limit Interface
Function	Open the pressure relief when the common rail pressure exceeds the set value to protect the high-pressure pipeline, injectors, and common rail from damage due to overpressure

Manufacturer No.

24694035302 469 403 530

OEM Part No.

612600081584044502011604450201200445020121612630030057

Engine Part No.

Weichai WP10Weichai WP12Weichai WP13Weichai WP10Weichai WP12Weichai WP13

Interchange No.

1110010015F00RJ02266

Fitment Vehicles

Shaanxi Auto Heavy Duty Truck (DeLion M3000/X3000 etc.)FAW Jiefang J6 seriesWeichai Power for Excavators/LoadersDiesel Generator SetAgricultural combine/Tractor

Fuel System - Industrial Encyclopedia

Bosch original 2469403530 overflow valve (pressure limit valve), specially designed for Weichai WP10/WP12 series engines, compatible with CP2.2 high-pressure common rail fuel injection pumps (such as 0445020116, 0445020120). Weichai original part number 612600081584, opening pressure about 1800-2200 bar, accurately protecting the safety of the common rail system pressure. Widely compatible with Shaanqi heavy trucks, FAW J6 and other heavy trucks, construction machinery and power generation equipment equipped with Weichai engines.
