What are the technical specifications of broadcom-hdsp-2113-alphanumeric-led-display?

Key technical specifications of Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28: display_type: Alphanumeric LED Display; character_count: 8; matrix_format: 5x7; color: Green; rated_current: 300 mA; brightness: 7.5 mcd.

Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28 - Image 1

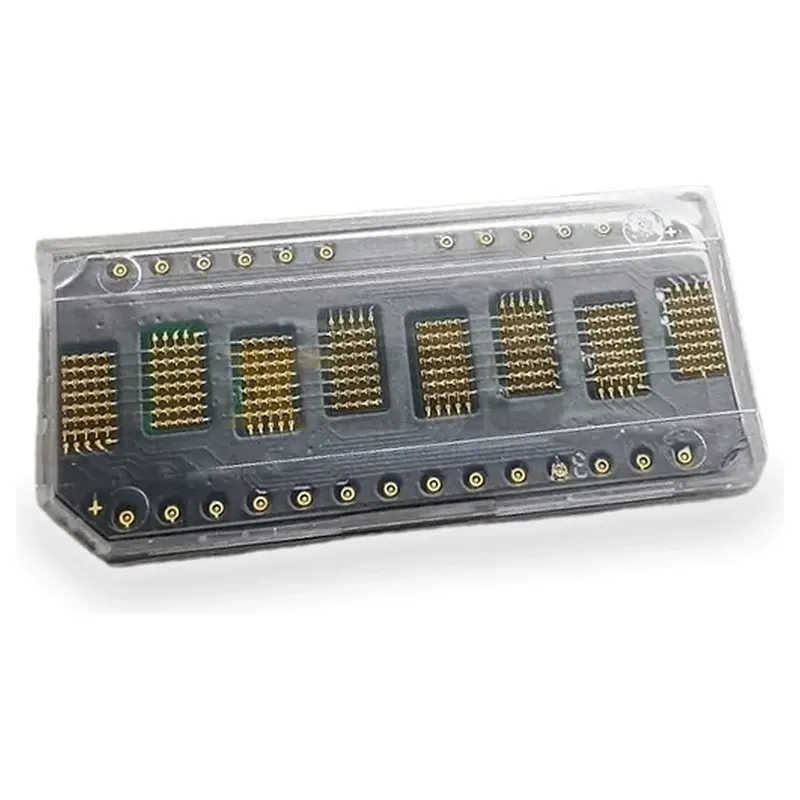

Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28 - Image 2

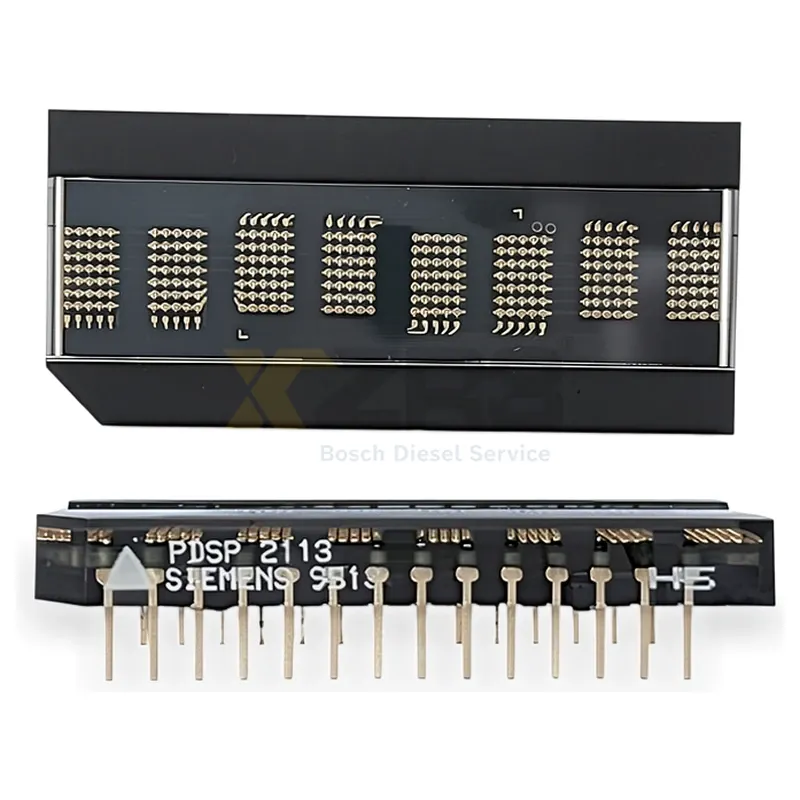

Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28 - Image 3

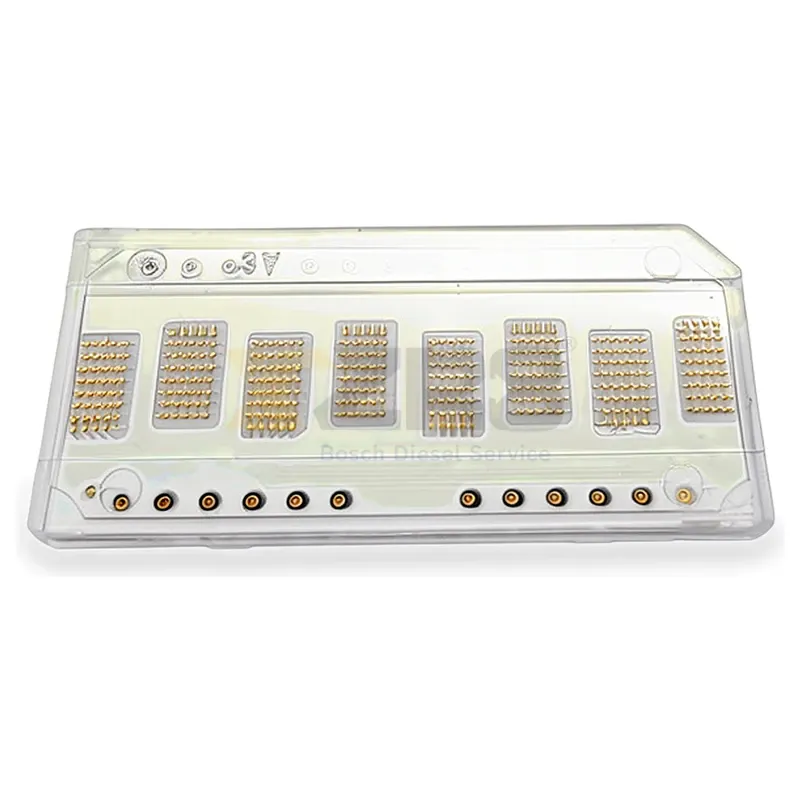

Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28 - Image 4

1 / 5

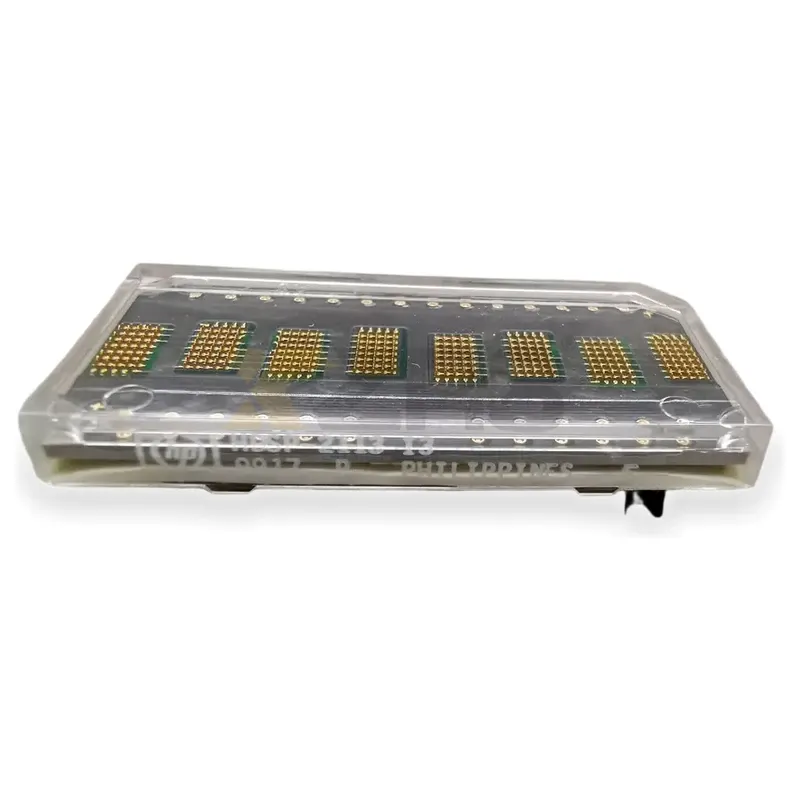

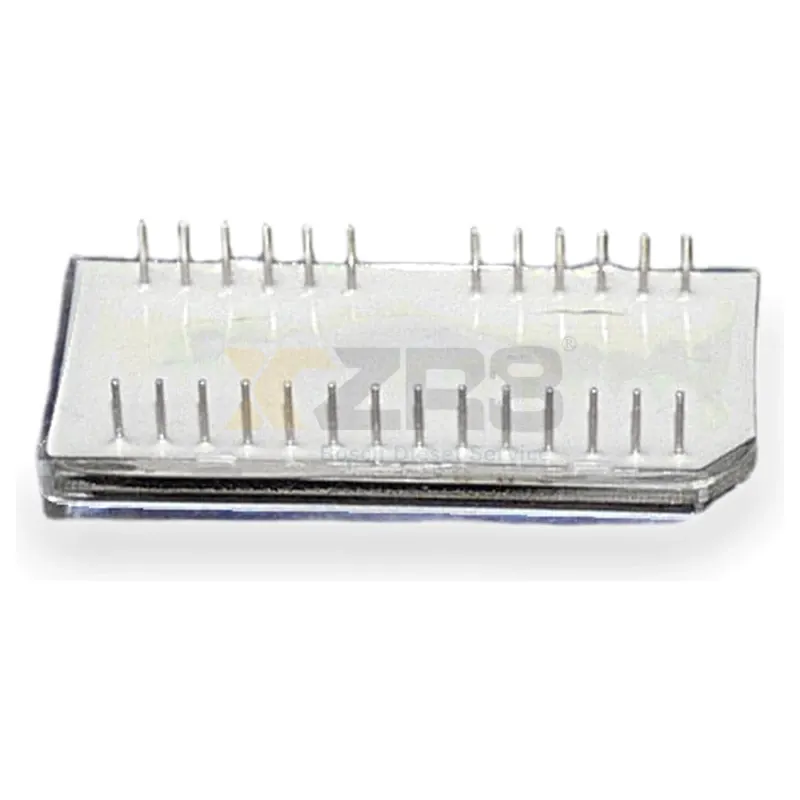

Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28

Q: What are the OEM and cross-reference part numbers for HDSP-2113?

The OEM and interchange cross-reference numbers for Broadcom HDSP-2113 8-character 5x7 dot matrix green LED intelligent alphanumeric display DIP-28 include: HDSP-2111, HDSP-2112.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Display Type	Alphanumeric LED Display
Character Count	8
Matrix Format	5x7
Color	Green
Rated Current	300 mA
Brightness	7.5 mcd
Character Height	4.81 mm
Power Voltage	5 V
Encapsulation Type	DIP-28
Dimensions	42.59mm x 19.58mm x 5.31mm
Interface	8-bit Parallel
Built-in Character	128 ASCII Characters + 16 Programmable Symbols

Manufacturer No.

HDSP-2113

Interchange No.

HDSP-2111HDSP-2112

Electrical And Electronic Systems - Industrial Encyclopedia

Broadcom HDSP-2113 is an 8-character 5x7 dot matrix green LED intelligent alphanumeric display, using DIP-28 packaging, operating current 300mA, typical brightness 7.5mcd, character height 4.81mm, supply voltage 5V. Built-in CMOS IC, supports 128 ASCII characters and 16 programmable symbols, suitable for industrial equipment, instruments and other applications that require displaying 8 or more characters. Original stock, 1-2 weeks delivery.
