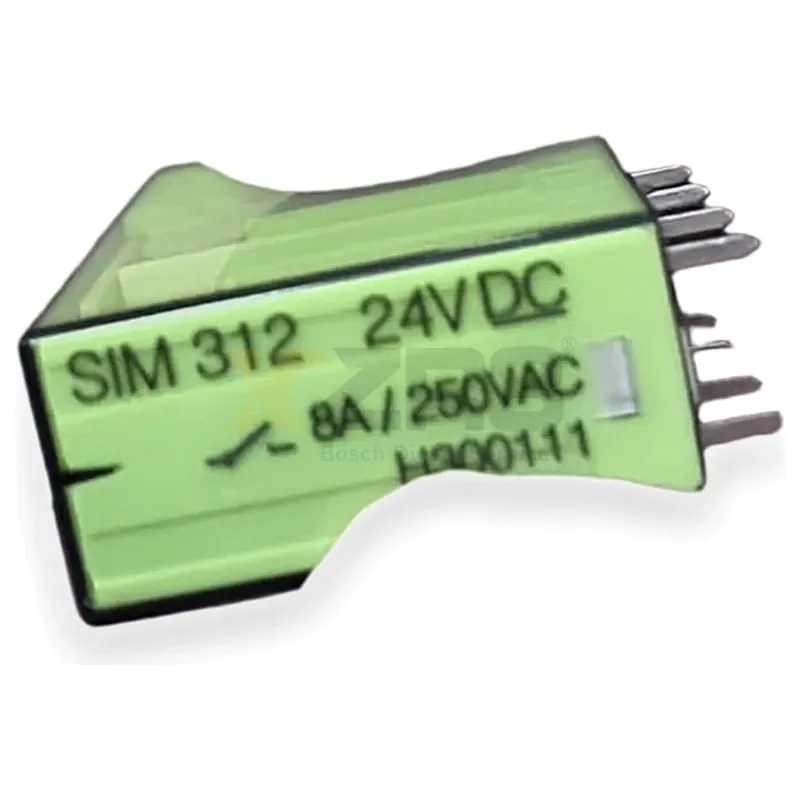

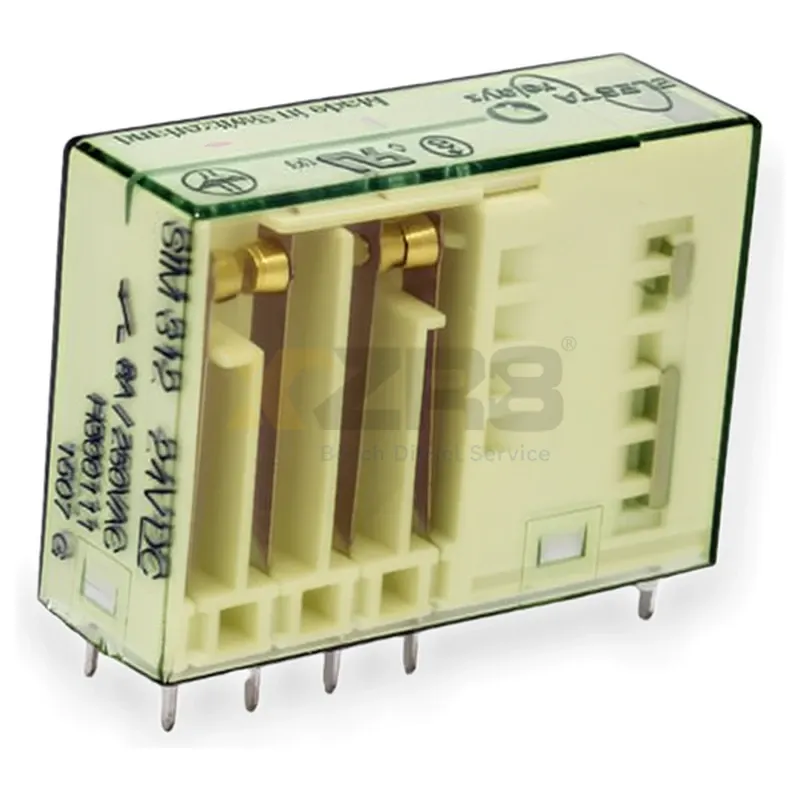

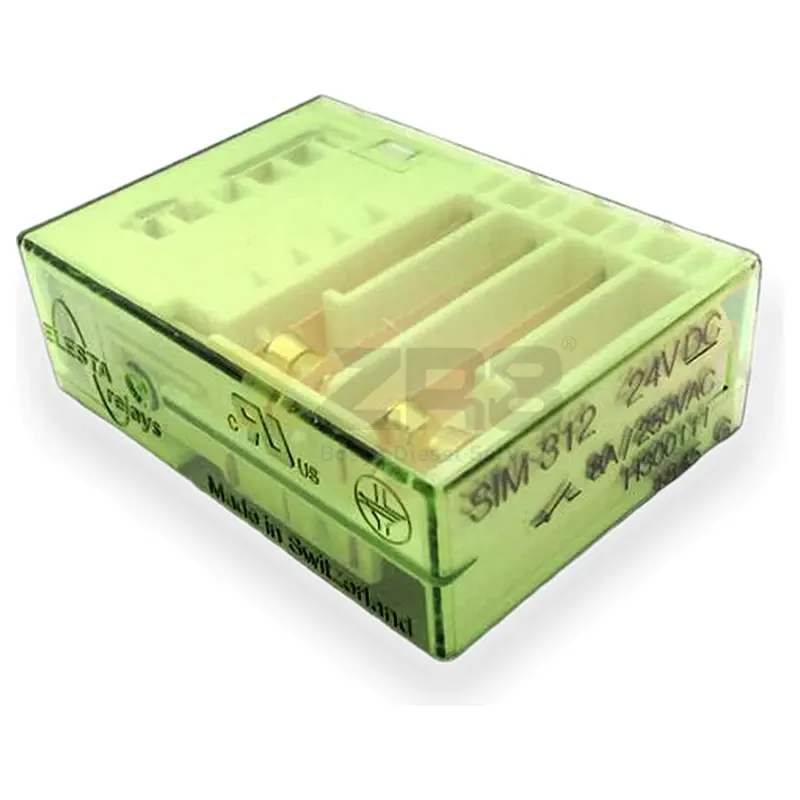

ELESTA SIM312 24VDC Safety Relay Compact 4 Pole Directed Contact 8A/250VAC
VIEW PRICELog in to view your customer price
| Series | SIM4 series |
| Contact Configuration | 3 Normally Open + 1 Normally Closed (3NO+1NC) |
| Coil Voltage | 24VDC |
| Contact Rating Current | 8A |
| Contact Rated Voltage | 250VAC |
| Contact Material | Gold, Silver, Tin |
| Polarity | 4 poles |
| Installation | Through Hole Welding |
| Connector Type | 10 |
| Size (Length x Width) | 36.1mm x ？ |
| Coil Power | 1000mW |
| Maintain Coil Power | 0.21W |
| Standard | IEC 61810-3 |
| Application Type | Type A - Protective Isolation |
| Applications | Medical, Sensing and Instruments, Motor Drive and Control, Mining, Petroleum and Natural Gas, Automotive |
Manufacturer No.
SIM312 24VDC
Electrical and Electronic System - Industrial Encyclopedia
ELESTA SIM312 24VDC Safety Relay, featuring a directed contact design, complies with IEC 61810-3 standard, application type A, providing protection isolation. Compact 4 pole PCB relay with contact configuration 3NO+1NC, coil voltage 24VDC, contact rated current 8A/250VAC. Suitable for process technology, mining, lifting technology, interface and remote control, etc. Original import, reliable quality.
