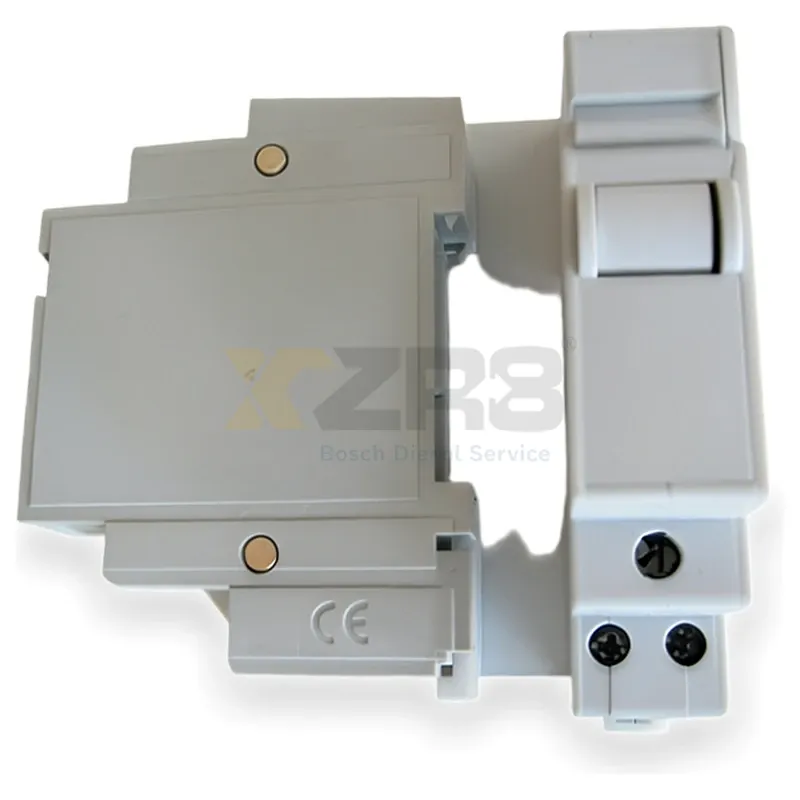

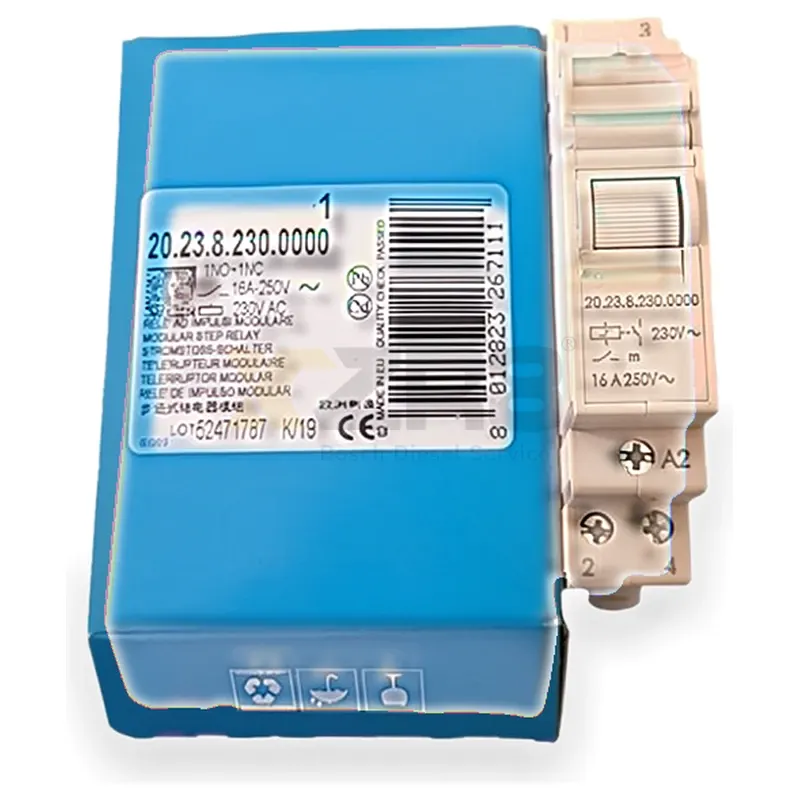

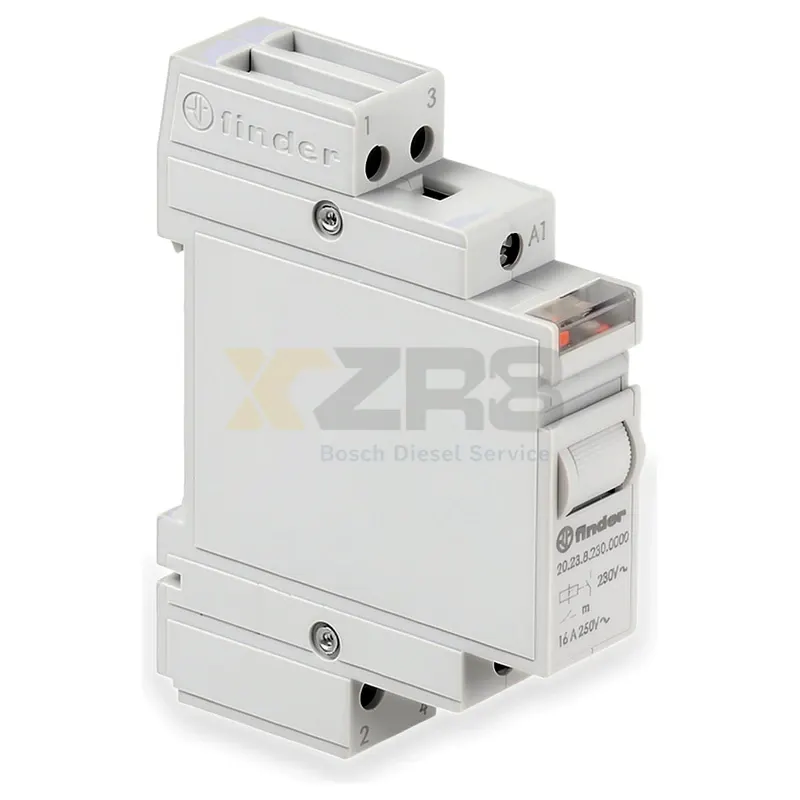

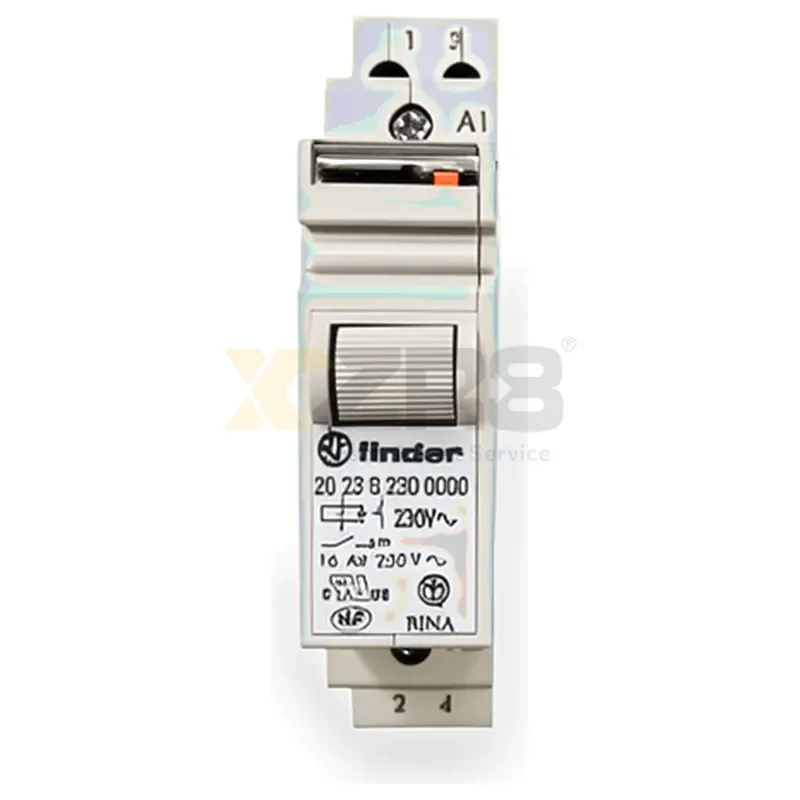

Finder 20.23.8.230.0000 Modular Step Relay 230V AC 16A 1NO+1NC
| Series | 20 Series |
| Product Type | Modular stepper relay |
| Coil Power Consumption | 230V AC |
| Rated Current | 16A |
| Contact Type | 1 Normally Open + 1 Normally Closed (SPST-NO+SPST-NC) |
| Contact Method | Silver-Nickel (AgNi) |
| Installation | DIN Rail Mounting (35mm) |
| Width | 17.5mm |
| Rated Power | 750VA (230V AC, AC-15) |
| Function | Dual state pulse/self-locking, stepping function |
Manufacturer No.
20.23.8.230.0000
Electrical And Electronic Systems - Industrial Encyclopedia
Finder 20.23.8.230.0000 is a modular step relay from the Italian brand Finder, part of the 20 series. It has a rated current of 16A, coil voltage of 230V AC, and a contact configuration of 1 normally open + 1 normally closed (SPST-NO+SPST-NC). Suitable for DIN rail installation, with a width of only 17.5mm, it is widely used in residential and commercial automation control. The relay features bistable pulse/self-latching function, switching the contact state each time the coil is energized, achieving step or flip operation. The contact material is silver-nickel (AgNi), ensuring reliable switching capability.
