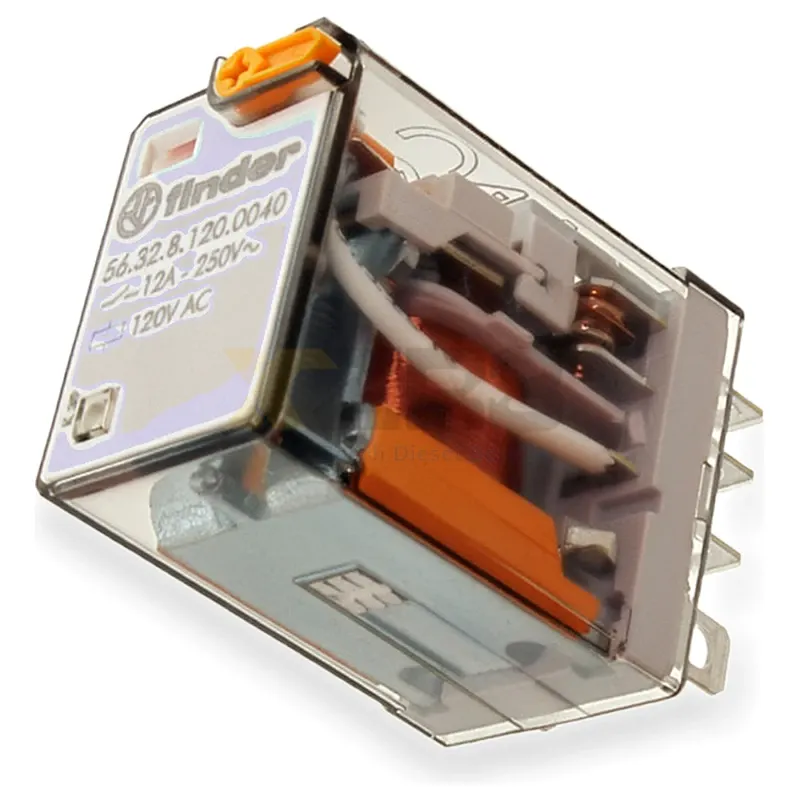

Finder 56.32.8.120.0040 Micro Power Relay, DPDT, 12A, 120VAC Coil, Insert Type
VIEW PRICELog in to view your customer price
| Series | 56 series |
| Product Type | Miniature power relay |
| Installation | Insert Type |
| Contact Form | DPDT (Double Pole, Double Throw) |
| Rated Current | 12A |
| Coil Voltage | 120VAC |
| Contact Material | Silver-Nickel (AgNi), cadmium-free |
| Test Button | Lockable |
| Mechanical Indicator | Yes |
| Connector Type | 8 Pins |
| Connector Type | Quick connection |
| Coil Type | Non-latching |
| Rated Switching Power | 700VA（230VAC，AC-15） |
| Maximum Contact Voltage | 300VAC |
| Maximum Contact Current | 10A (Partial Information) |
| Compatible Socket | 96 series |
Manufacturer No.
56.32.8.120.0040
Electrical and Electronic System - Industrial Encyclopedia
Finder 56.32.8.120.0040 is a high-quality micro power relay, belonging to the Finder 56 series. This relay features an insert type installation, DPDT (double pole double throw) contact form, rated current 12A, and 120VAC coil voltage. The contact material is cadmium-free silver-nickel (AgNi), equipped with a lockable test button and a mechanical indicator. Suitable for general-purpose switching applications in industrial automation, HVAC, lighting control, etc. Compatible with 96 series sockets.
