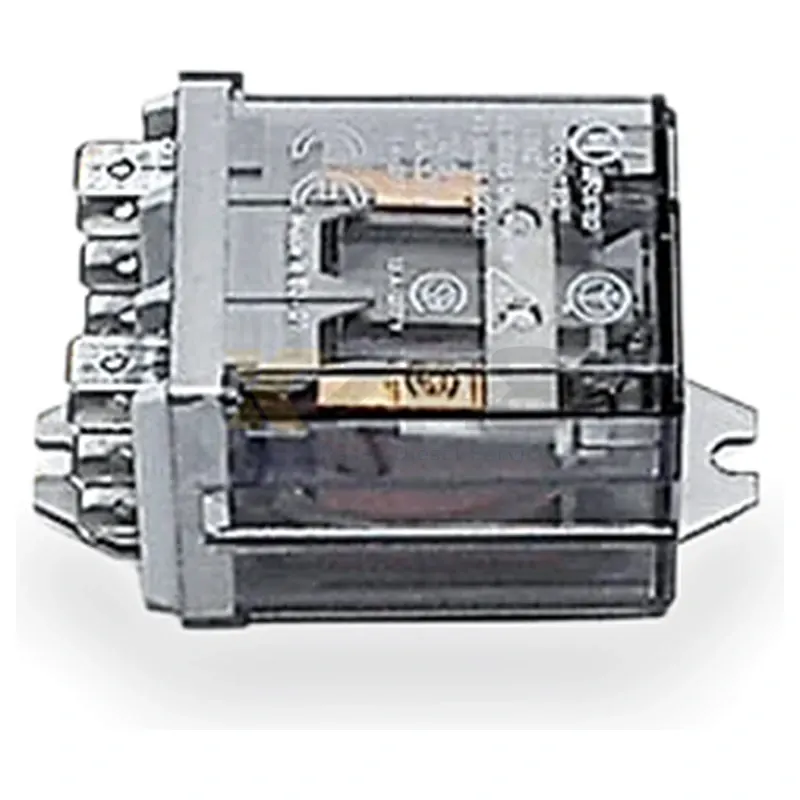

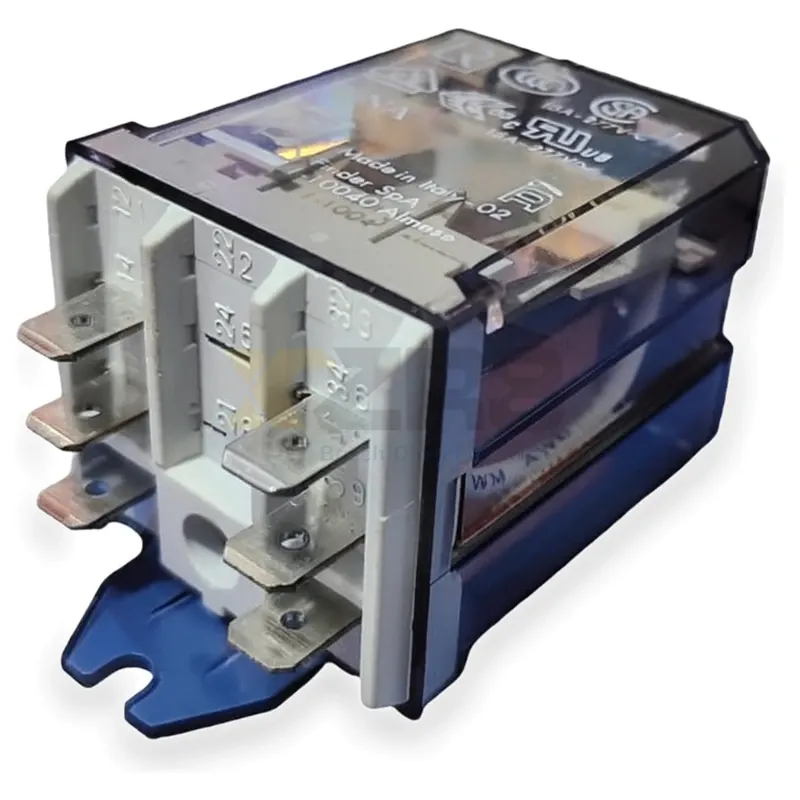

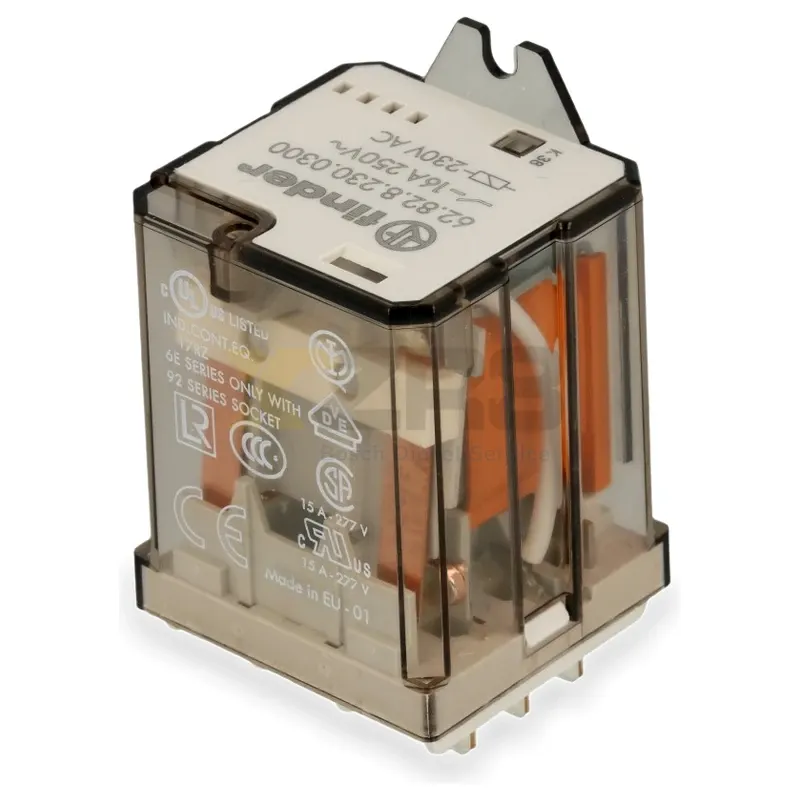

FINDER 62.82.8.230.0300 Electromagnetic Power Relay DPST-NO 16A 230VAC
VIEW PRICELog in to view your customer price
| Contact Configuration | DPST-NO (Double Pole Single Throw Normally Open) |
| Coil Voltage | 230V AC |
| Rated Current | 16A |
| Maximum Switch Voltage | 250V AC / 400V AC |
| Coil Resistance | 5000 Ω |
| Coil Power Consumption | 3 VA / 2550 mW |
| Coil Current | 14 mA |
| Contact Material | Silver cadmium oxide (AgCdO) |
| Contact Gap | ≥ 3 mm |
| Installation | Flange Mount |
| Connector Type | Quick Connector (Faston 6.3 x 0.8 mm) |
| Material | Plastic |
| Dimensions | 45 mm (length/height) |
| Series | 62 Series |
Manufacturer No.
62.82.8.230.0300
Electrical and Electronic System - Industrial Encyclopedia
FINDER Fend 62.82.8.230.0300 Electromagnetic Power Relay, DPST-NO Contact Configuration, Rated Current 16A, Coil Voltage 230VAC. Suitable for industrial automation, control panels, charging stations, and other applications.Flange Installation, quick connection terminals, silver oxide cadmium contacts, high reliability. Original genuine product, in stock supply.
