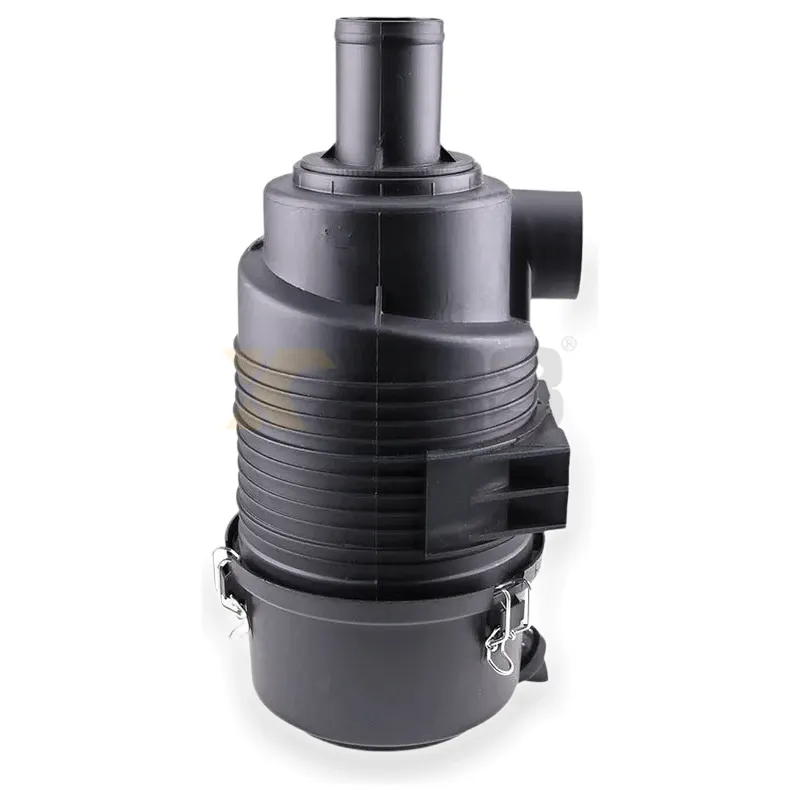

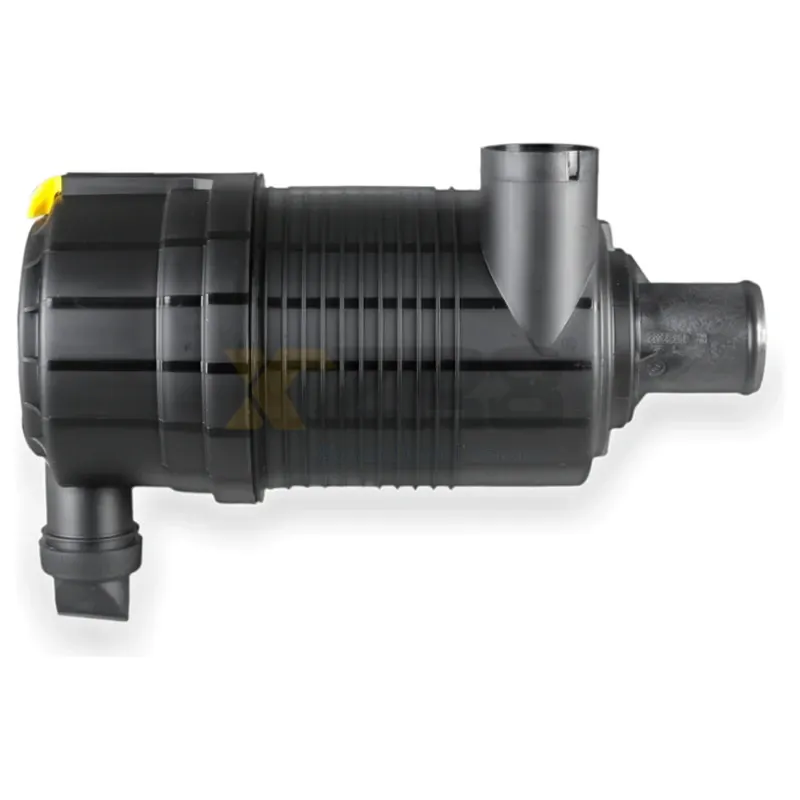

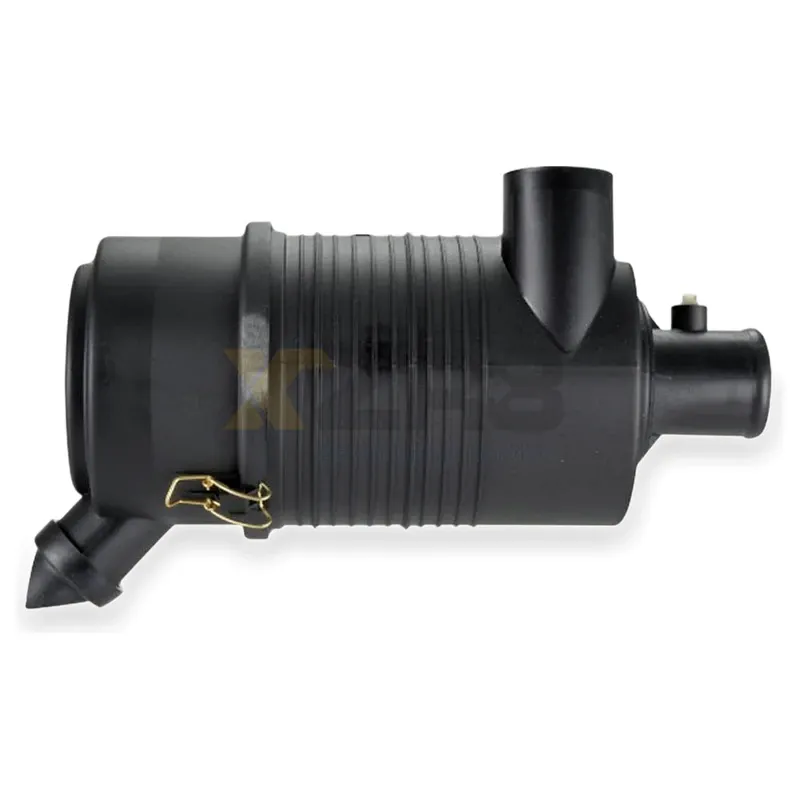

Donaldson G065432 Air Cleaner Assembly
| Series | FPG RadialSeal |
| Inlet Diameter | 63.5 mm (2.50 in) |
| Outlet Diameter | 63.5 mm (2.50 in) |
| Body Diameter | 171.2 mm (6.74 in) |
| Body Length | 217.9 mm (8.58 in) |
| Overall Length | 423.8 mm (16.68 in) |
| rated_flow_low_restriction | 120 CFM (3.4 m³/min) |
| Rated Flow Mid Range | 134 CFM (3.8 m³/min) |
| Rated Flow High Range | 155 CFM (4.4 m³/min) |
| Flow Tolerance | 5.98 in H2O (152 mm H2O) |
| Flow Range | 7.99 in H2O (203 mm H2O) |
| Maximum Flow Rate | 10.00 in H2O (254 mm H2O) |
| Filter Efficiency | 85% |
| Housing Material | Polymer |
| Seal Type | Radial Seal |
| Stage Number | Two-Stage |
| filter_element | Donaldson P822768 |
Manufacturer No.
G065432P822768P822769P158914
OEM Part No.
12968712500DNG065432AH19087124651781046Z1017M20281189764301081Y06020465814310-01-666-6454
Engine Part No.
Yanmar 4TNV88Yanmar 3TNV84TYanmar 3TNV88
Interchange No.
6346301081DCIG065432
Fitment Vehicles
Genie S-40Genie S-45Genie S-60Genie S-65Genie S-80Genie S-85Genie Z-45/25JLG TelehandlersJLG Boom LiftsJLG Scissor LiftsFreightliner TrucksAir CompressorsGenerator Sets
Engine Air Intake And Filtration Systems - Industrial Encyclopedia
OEM replacement Donaldson FPG RadialSeal air cleaner assembly G065432 with 2.5 inch inlet/outlet, 120-155 CFM flow range, 85% efficiency, fits Yanmar 4TNV88 and Genie aerial lifts.
