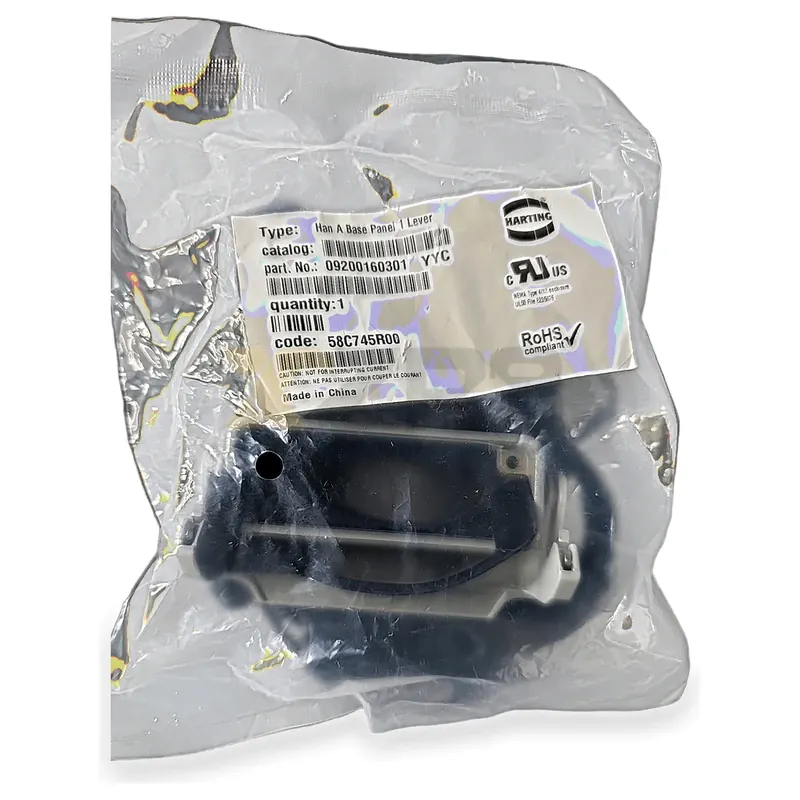

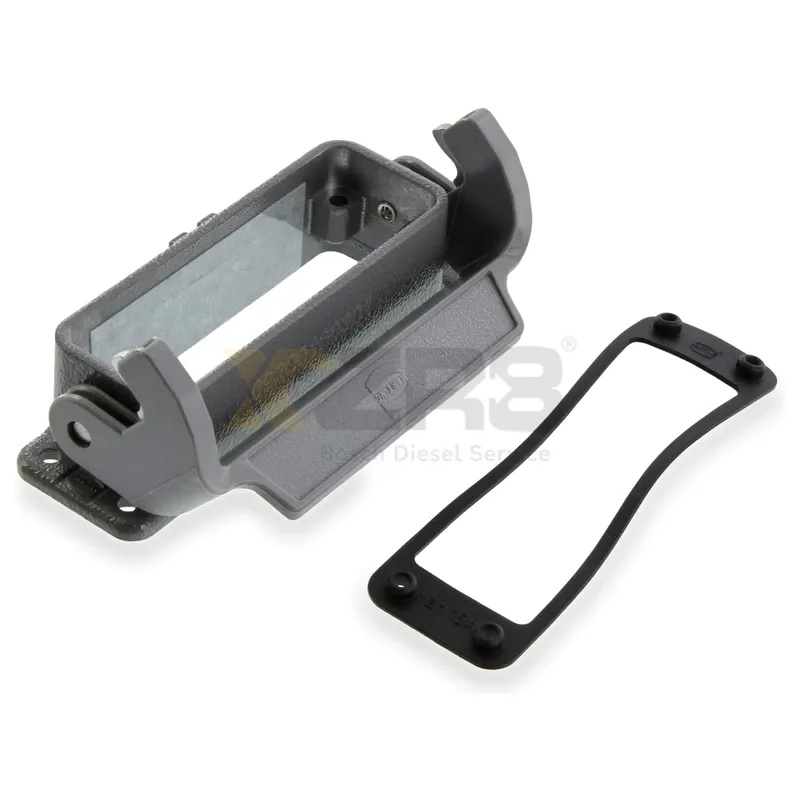

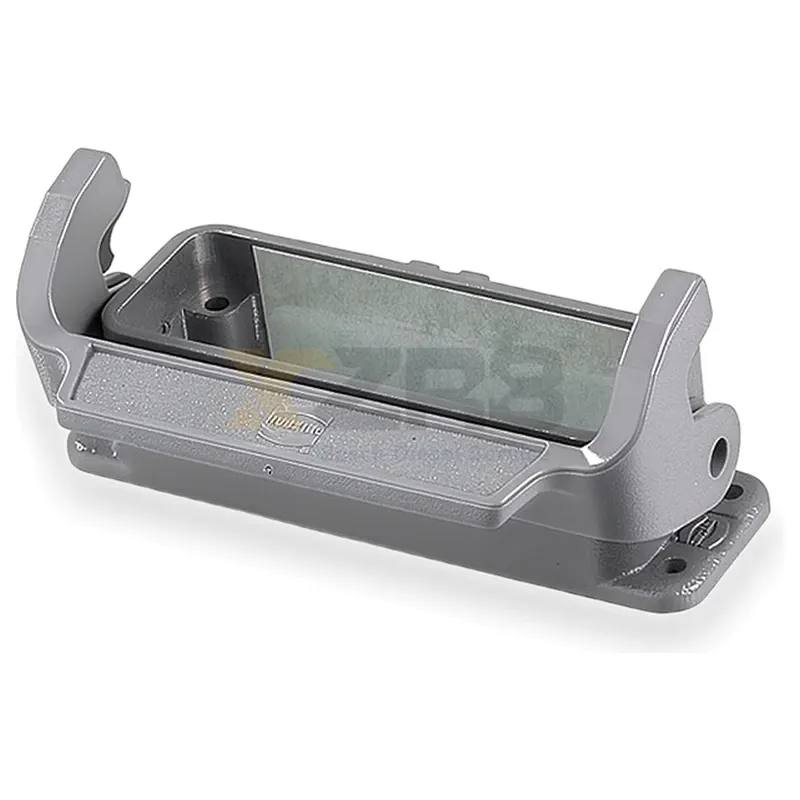

HARTING 09200160301 Han 16A Panel Mounting Base Heavy Duty Connector
| Product Type | Base |
| Series | Han 16A |
| Installation | Bulkhead Mount |
| Tightening Method | Single Lever (1 Lever) |
| Material | Die Cast Aluminum |
| Protection Rating | IP65 |
| Panel Hole Size | 24 x 57 mm |
| Operating Temperature | -40°C to +125°C |
| Rated Current | 16A |
| Color | RAL 7037 (gray) |
Manufacturer No.
09200160301
Interchange No.
09200160301ML
Electrical And Electronic Systems - Industrial Encyclopedia
HARTING 09200160301 is the base for Han 16A series heavy duty connectors, made of die-cast aluminum, single locking rod design, IP65 protection level, suitable for panel mounting. The base has a panel opening size of 24x57mm, operating temperature of -40 to 125°C, and meets the high reliability requirements of industrial connectors. Widely used in construction machinery, automation equipment, rail transit and other fields, providing stable power and signal connections.
