Which equipment and machinery is hirose-hr25a-9p-20p-connector compatible with?

Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket (hirose-hr25a-9p-20p-connector) is compatible with: Industrial Camera, Sensor, PLC Controller, Factory Automation Equipment, Canon Camera, Fujitsu Camera.

What are the technical specifications of hirose-hr25a-9p-20p-connector?

Key technical specifications of Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket: series: HR25A; gender: Male Connector (Pin); needle_count: 20; shell_size: 9; installation: Cable installation; termination_method: Solder Cup.

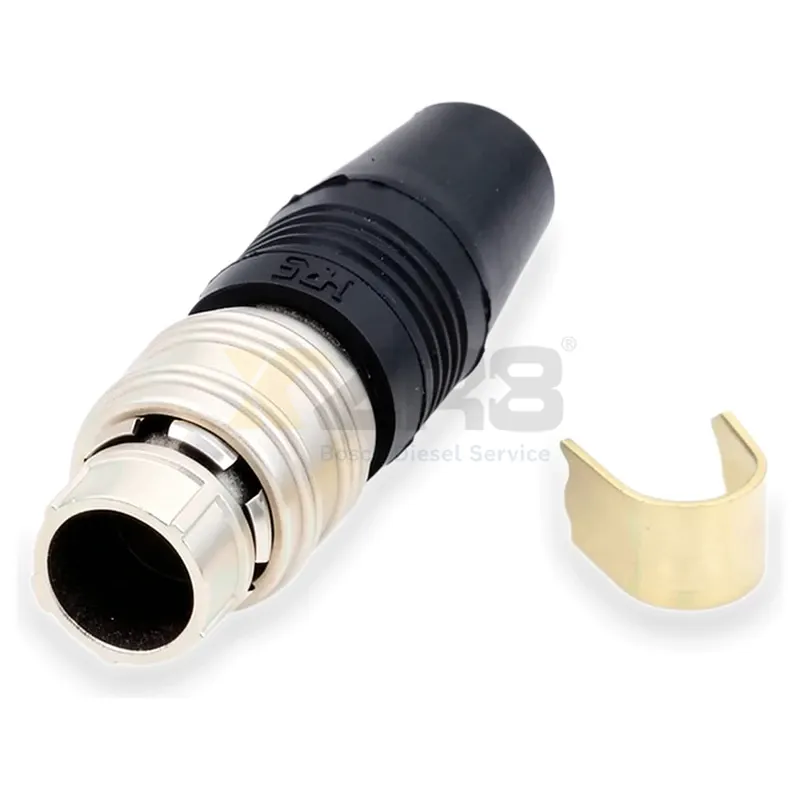

Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket - Image 1

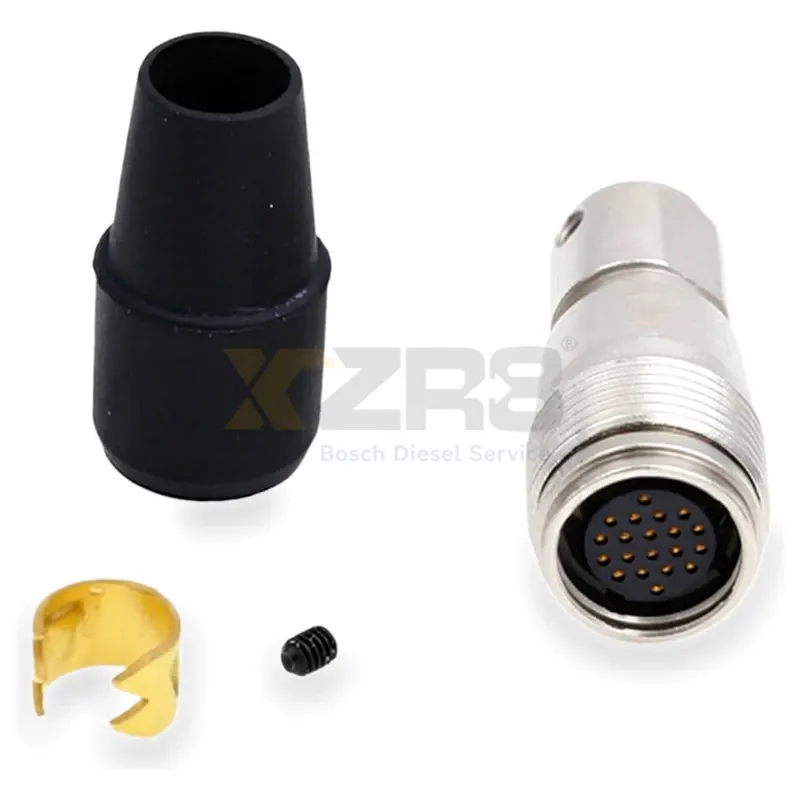

Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket - Image 2

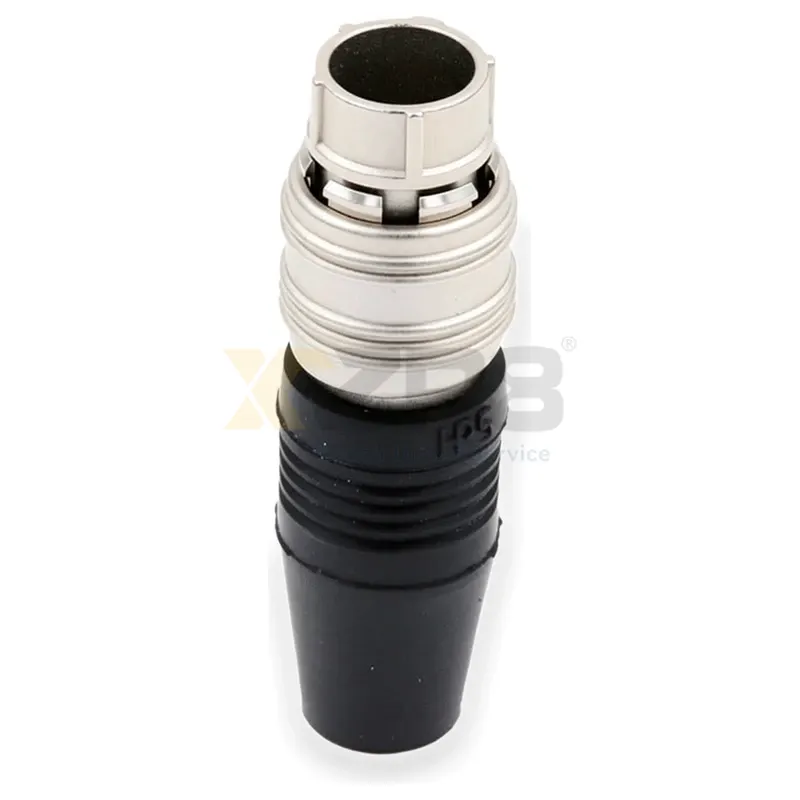

Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket - Image 3

1 / 4

Hirose HR25A-9P-20P Micro Push-Pull Circular Connector 20 Pin Male Plug Socket

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Series	HR25A
Gender	Male Connector (Pin)
Needle Count	20
Shell Size	9
Installation	Cable installation
Termination Method	Solder Cup
Contact Plating	Gold
Rated Current	1A
Voltage	42VDC / 30VAC
Material	Zinc Alloy
Locking Device	Push-pull type
Design	Yes
Max Outside Diameter	13mm (20 pins)

Manufacturer No.

HR25A-9P-20P

Fitment Vehicles

Industrial CameraSensorPLC ControllerFactory Automation EquipmentCanon CameraFujitsu Camera

Electrical And Electronic Systems - Industrial Encyclopedia

Hirose HR25A-9P-20P is a micro push-pull circular connector with a 20-pin male plug socket, shell size 9, using socket terminal connection. Suitable for industrial cameras, sensors, PLC controllers and factory automation equipment. Rated current 1A, rated voltage 42VDC/30VAC, gold-plated contacts, zinc alloy shell material. Compatible with Canon, Fujitsu and other camera standard 20-pin interfaces.
