Which engines does part idss-diagnostic-scanner-kit-isuzu-oem-diagnostic-tool fit?

Isuzu IDSS Diagnostic Scanner Kit fits the following engines: Isuzu 4HK1, Isuzu 6HK1, Isuzu 4JJ1, Isuzu 6UZ1, Isuzu 5.2L, Isuzu 7.8L, Isuzu 4JH1, Isuzu 6WF1.

What are the technical specifications of idss-diagnostic-scanner-kit-isuzu-oem-diagnostic-tool?

Key technical specifications of Isuzu IDSS Diagnostic Scanner Kit: operating_voltage: 9-32V DC (Vehicle Battery); communication_interface: J2534 / RP1210 / USB 2.0 / Bluetooth / WiFi; supported_protocols: CAN (ISO 15765), J1939, J1708/J1587, ISO 9141-2, KWP2000 (ISO 14230); diagnostic_connectors: 16-pin OBD-II (J1962), 9-pin Deutsch (HD), 16-pin HD (J1708), Isuzu Specific 12-pin/14-pin; display_screen_size: 14.0 inch (Typical Rugged); operating_temperature: -20 to 60 Celsius.

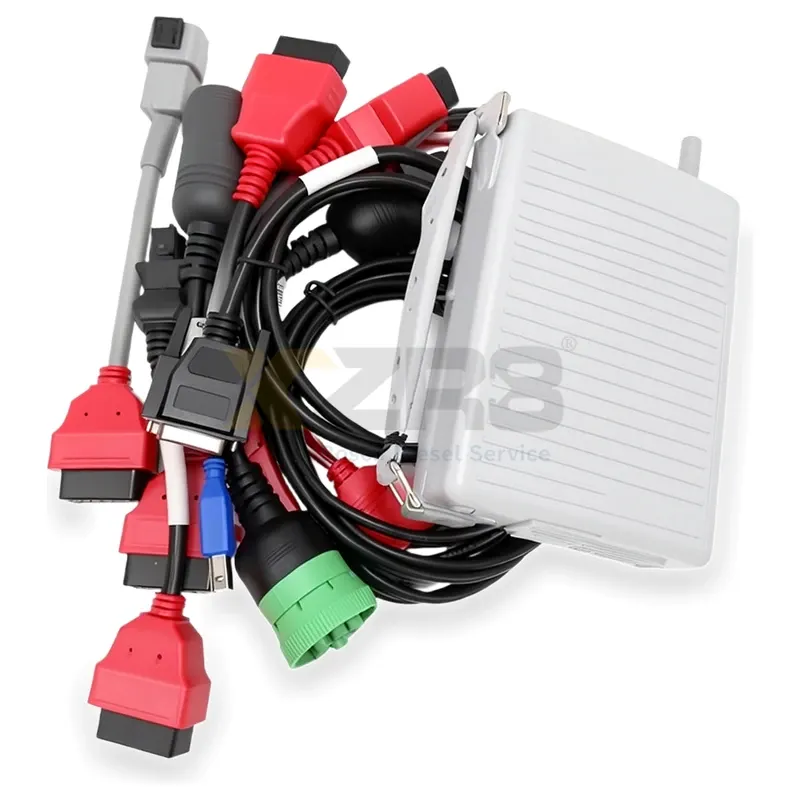

Isuzu IDSS Diagnostic Scanner Kit - Image 1

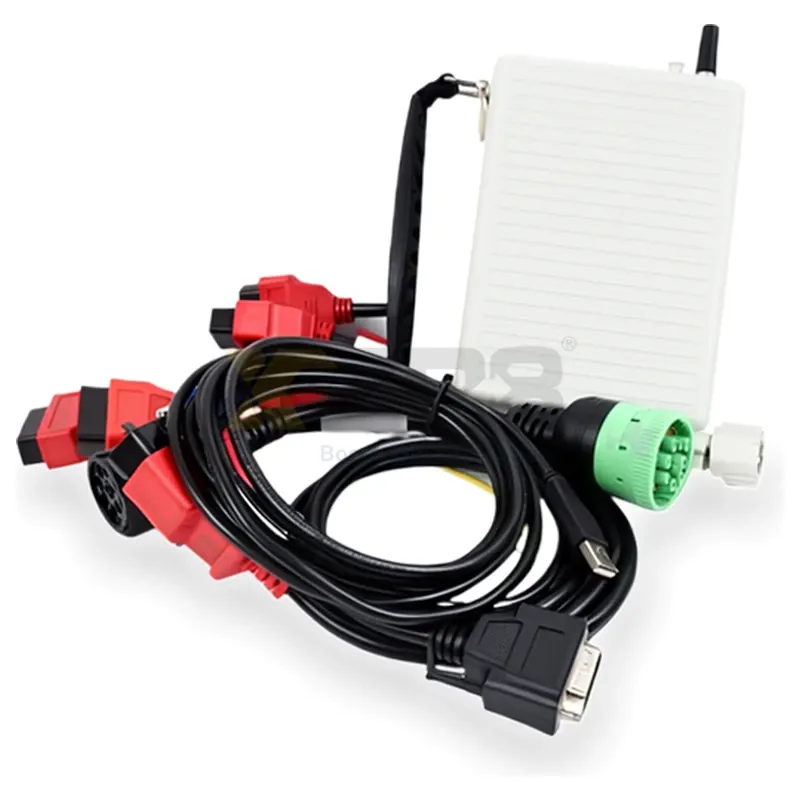

Isuzu IDSS Diagnostic Scanner Kit - Image 2

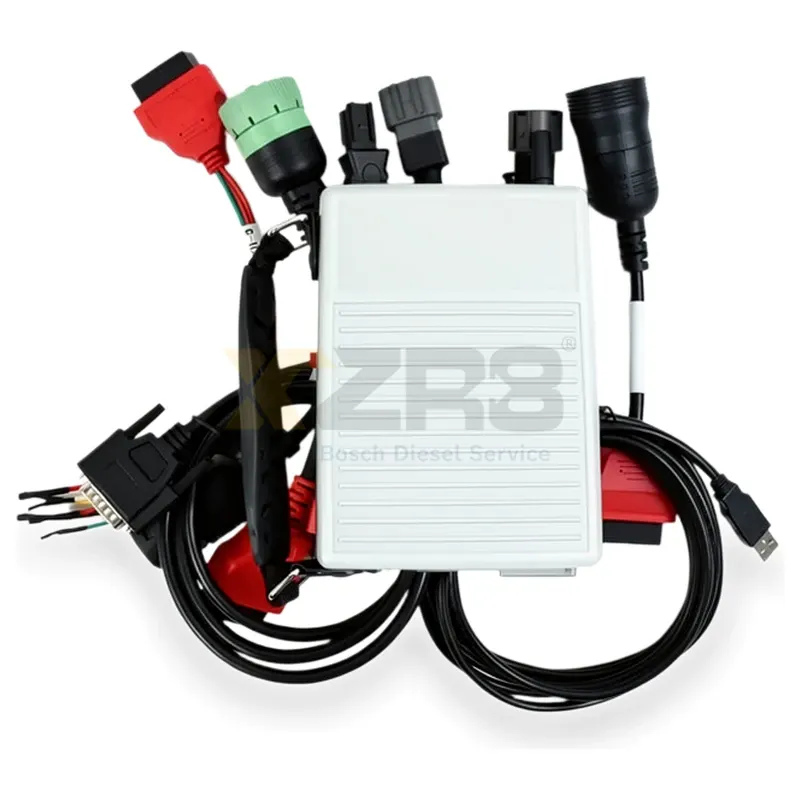

Isuzu IDSS Diagnostic Scanner Kit - Image 3

1 / 4

Isuzu IDSS Diagnostic Scanner Kit

Q: Which equipment and machinery is idss-diagnostic-scanner-kit-isuzu-oem-diagnostic-tool compatible with?

Isuzu IDSS Diagnostic Scanner Kit (idss-diagnostic-scanner-kit-isuzu-oem-diagnostic-tool) is compatible with: Isuzu NPR, Isuzu NQR, Isuzu NRR, Isuzu FTR, Isuzu FRR, Isuzu FVR, Isuzu F-Series, Isuzu D-Max, Hitachi Excavators with Isuzu Engine, Sumitomo Excavators with Isuzu Engine.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Operating Voltage	9-32V DC (Vehicle Battery)
Communication Interface	J2534 / RP1210 / USB 2.0 / Bluetooth / WiFi
Supported Protocols	CAN (ISO 15765), J1939, J1708/J1587, ISO 9141-2, KWP2000 (ISO 14230)
Diagnostic Connectors	16-pin OBD-II (J1962), 9-pin Deutsch (HD), 16-pin HD (J1708), Isuzu Specific 12-pin/14-pin
Display Screen Size	14.0 inch (Typical Rugged)
Operating Temperature	-20 to 60 Celsius
Storage Temperature	-40 to 70 Celsius
Software Platform	Windows 10 Pro 64-bit / Windows 11 Pro 64-bit

Manufacturer No.

IDSSIDSS-IIG-IDSSE-IDSSUS-IDSS

Engine Part No.

Isuzu 4HK1Isuzu 6HK1Isuzu 4JJ1Isuzu 6UZ1Isuzu 5.2LIsuzu 7.8LIsuzu 4JH1Isuzu 6WF1

Fitment Vehicles

Isuzu NPRIsuzu NQRIsuzu NRRIsuzu FTRIsuzu FRRIsuzu FVRIsuzu F-SeriesIsuzu D-MaxHitachi Excavators with Isuzu EngineSumitomo Excavators with Isuzu EngineJCB Excavators with Isuzu EngineIsuzu Industrial Power Units

Instrumentation And Gauges - Industrial Encyclopedia

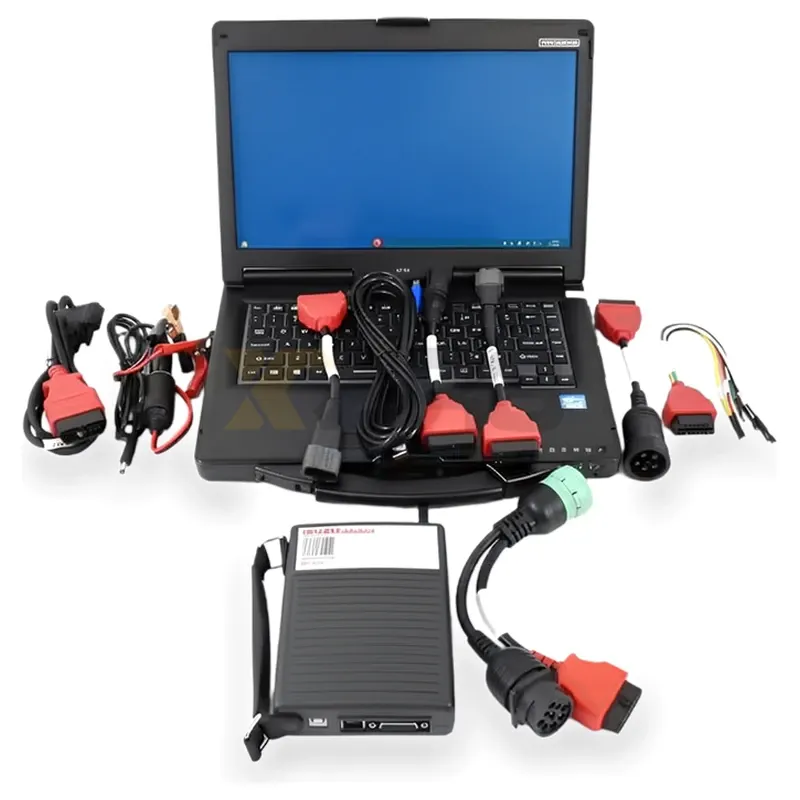

OEM Isuzu IDSS diagnostic scanner kit with rugged laptop, VCI interface, and G-IDSS/E-IDSS software for full system diagnostics, ECU programming, and DPF regeneration on Isuzu trucks and excavators 1996-present.
