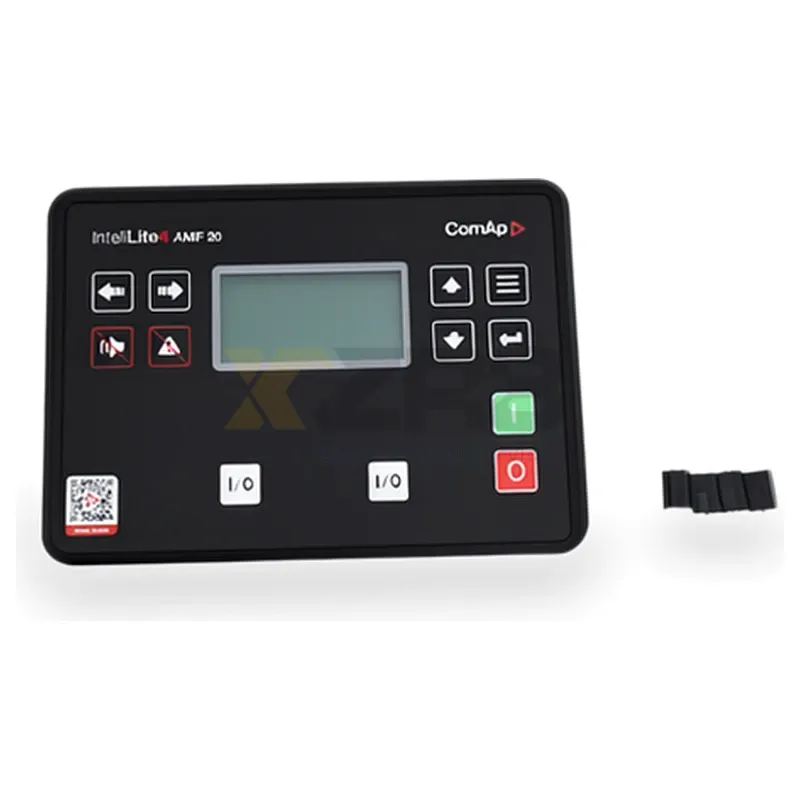

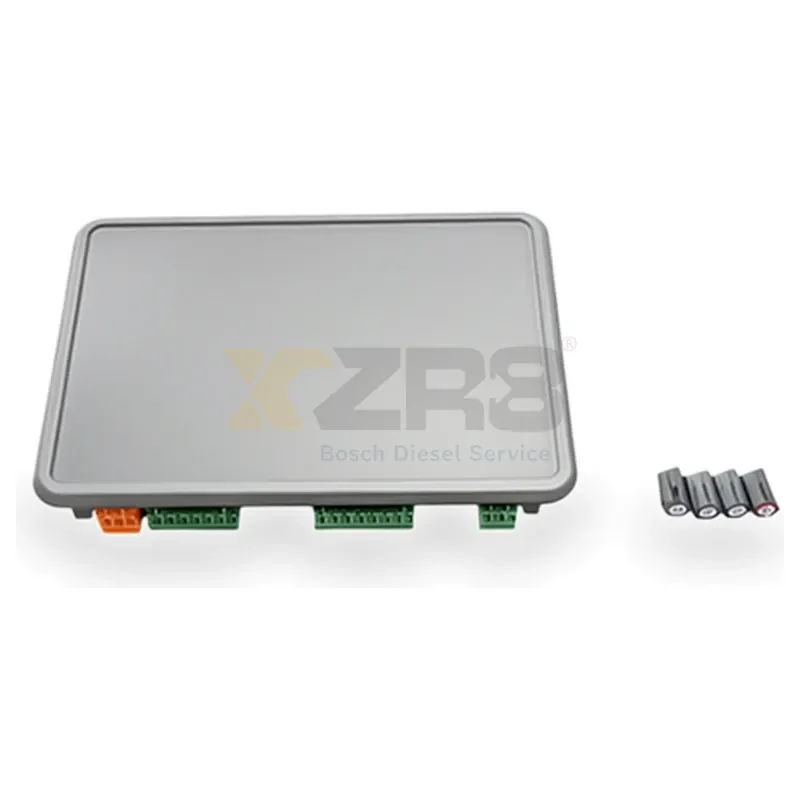

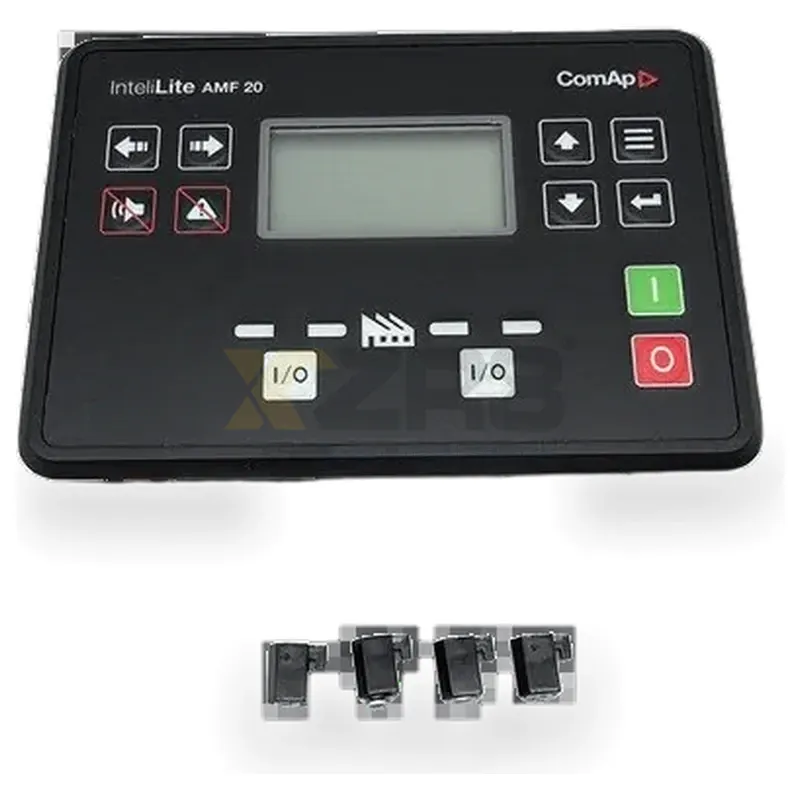

ComAp IL4AMF20BAA Genset Controller
| Power Range | 8-36 V DC |
| Power Consumption | 3.5 W (without modules) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Outer Protection | IP65 |
| Voltage Range (EU) | 10-277 V AC / 10-480 V AC |
| Voltage Range (US/CA) | 10-346 V AC / 10-600 V AC |
| Frequency Range | 30-70 Hz |
| Measurement Accuracy | 0.1 Hz |
| Installation Depth | 41-56 mm (module dependent) |
| App Compatibility | AMF, MRS, Hybrid, Engine |
| Communication Protocol | Modbus, SNMP, J1939 (MultiECU) |
Manufacturer No.
IL4AMF20BAA
Electrical And Electronic Systems - Industrial Encyclopedia
ComAp InteliLite 4 AMF 20 single gen-set controller for standby and prime power applications. 8-36V DC supply, IP65 front protection, J1939 and Modbus communication.
