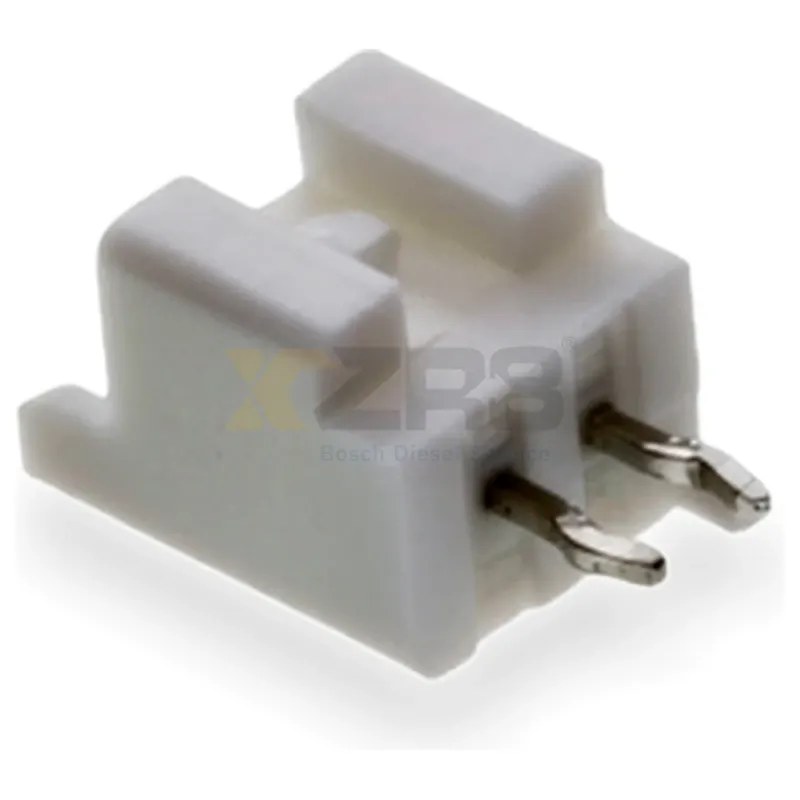

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 1

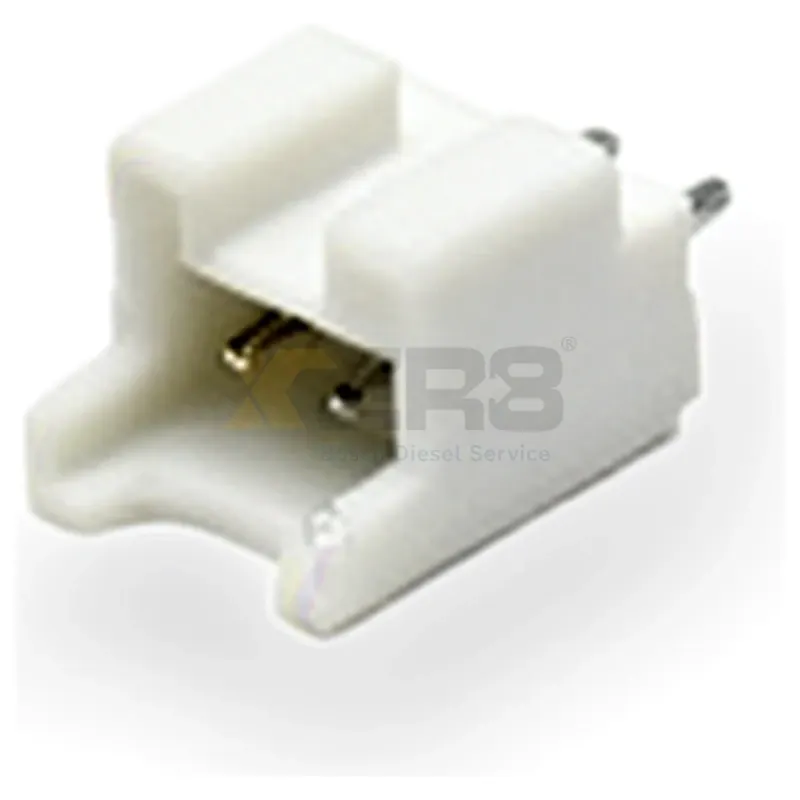

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 2

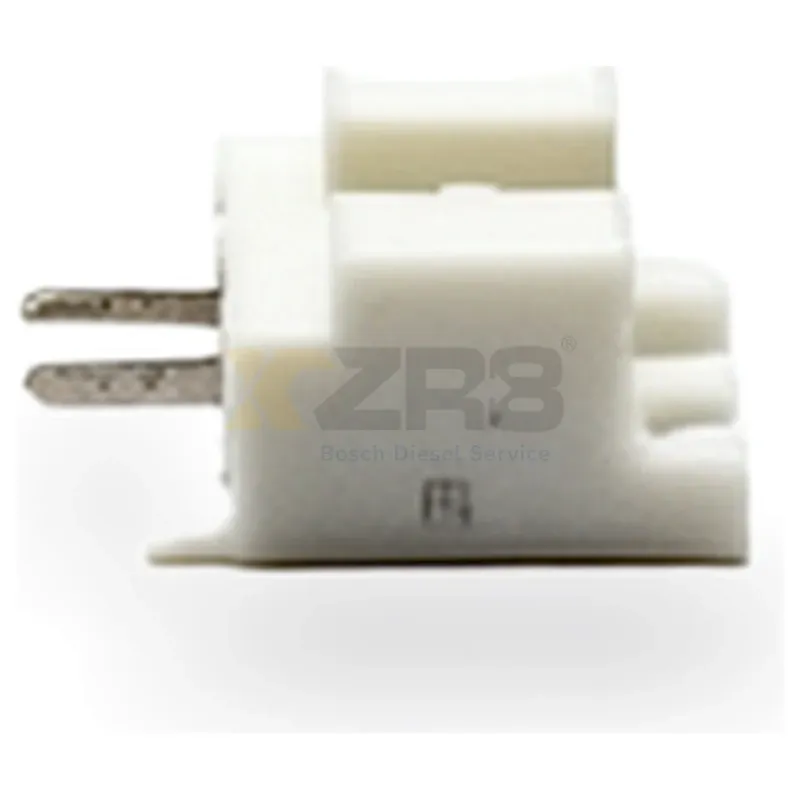

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 3

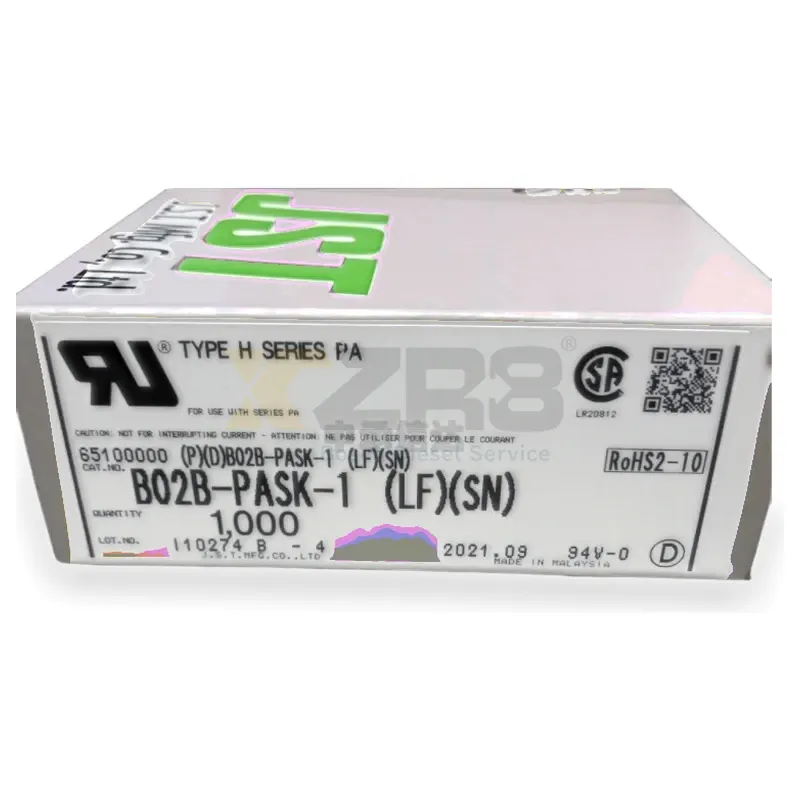

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 4

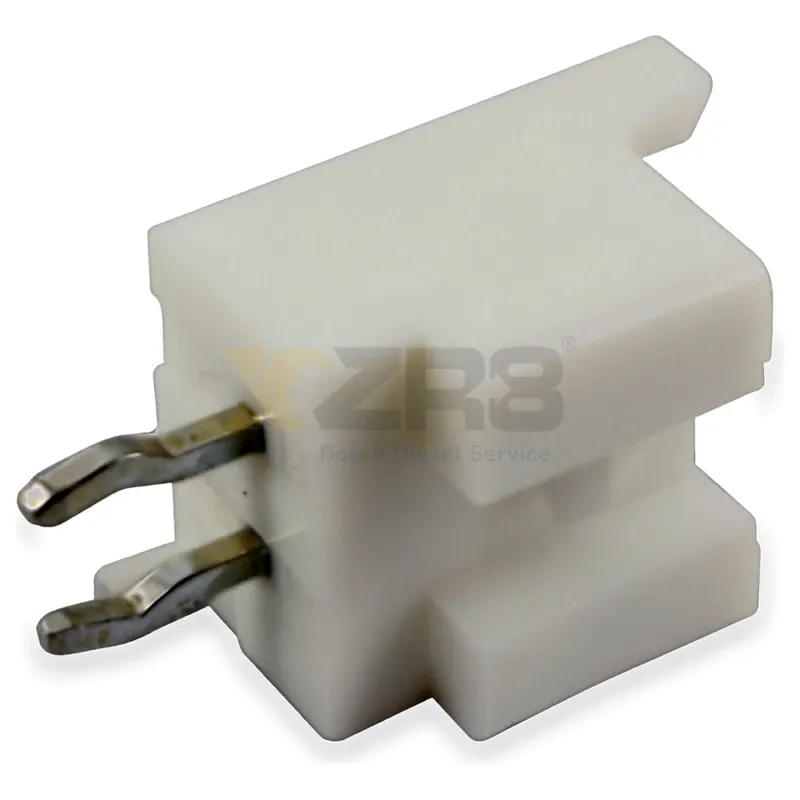

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 5

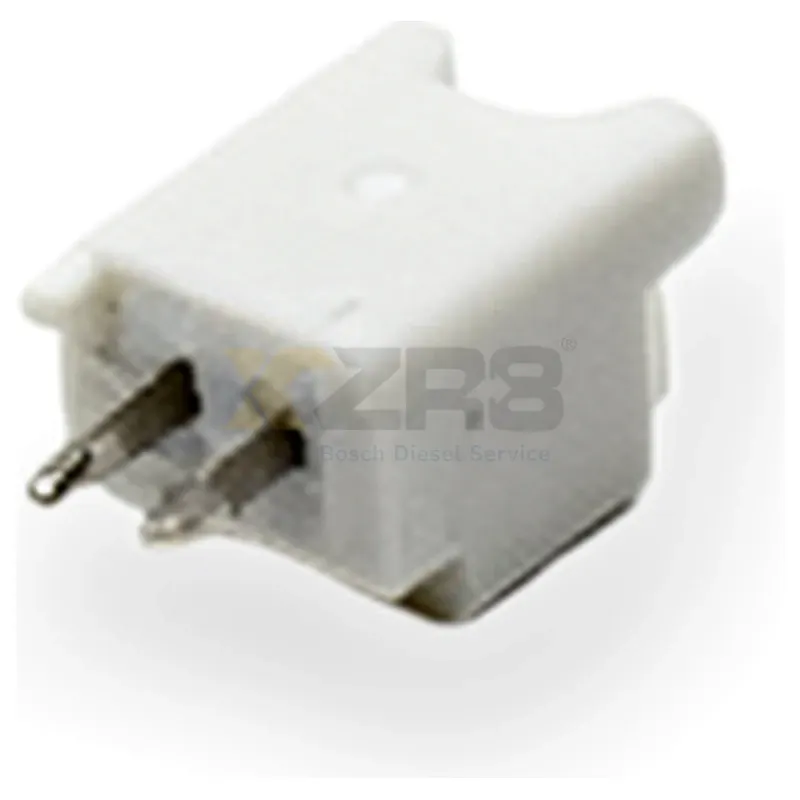

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 6

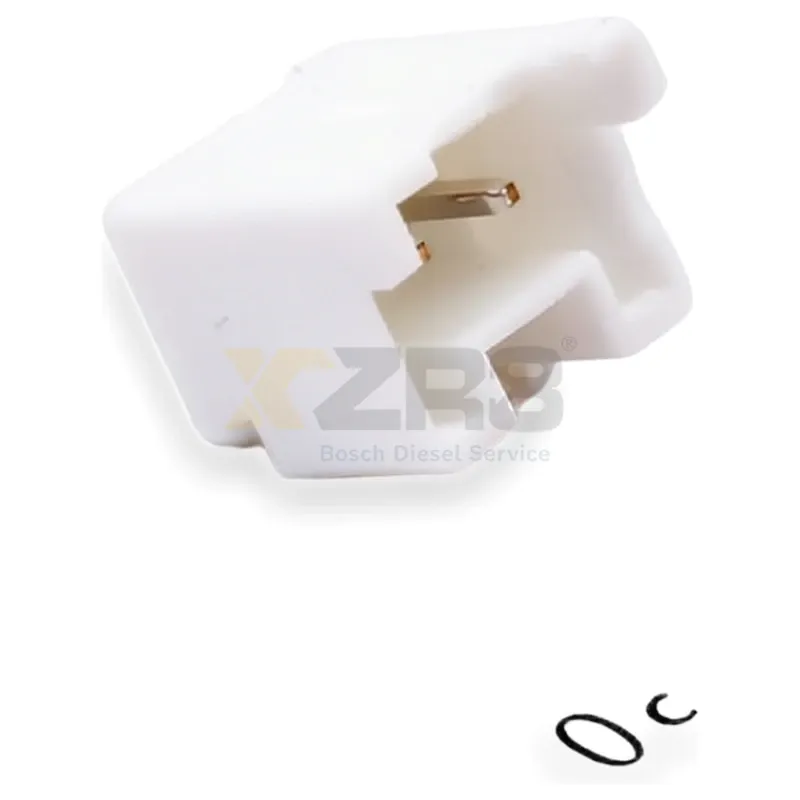

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing - Image 7
1 / 7

JST B02B-PASK-1(LF)(SN) 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing

SeriesPA
Pin Count2
Spacing2.0mm
Installation TypeThrough Hole
Connector TypeShielded Wire to Board/Wire to Wire Crimping
Rated Current3A
Operating Temperature-25°C to +85°C
Contact MethodCopper Alloy
CoatingTin
Insulation ColorPA (Polyamide)
Rohs ComplianceCompliant
Manufacturer No.
B02B-PASK-1B02B-PASK-1(LF)(SN)
Interchange No.
B02B-XASK-1(LF)(SN)B02B-PASK-1-GU(PP)

Electrical And Electronic Systems - Industrial Encyclopedia

JST B02B-PASK-1 is a 2-position 2.0mm pitch PA series line-to-board/line-to-line crimp connector with shielded housing. Through-hole mounting. Rated current 3A, operating temperature -25℃ to +85℃, contact material is tin-plated copper alloy. Suitable for internal connections of electronic devices, widely used in consumer electronics, industrial control and other fields. Original genuine, minimum order quantity 1000 pieces per box.
