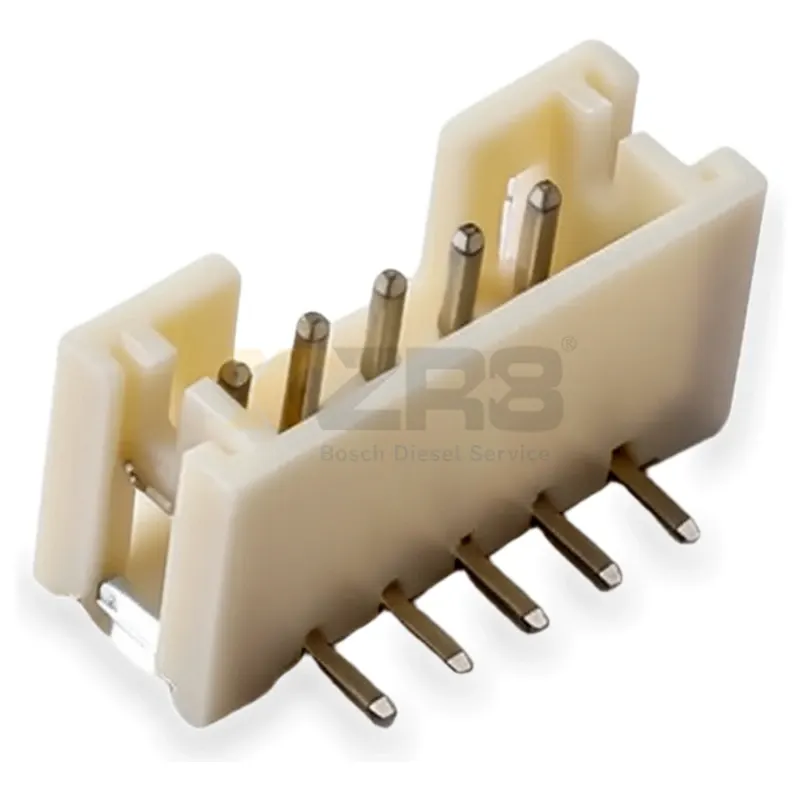

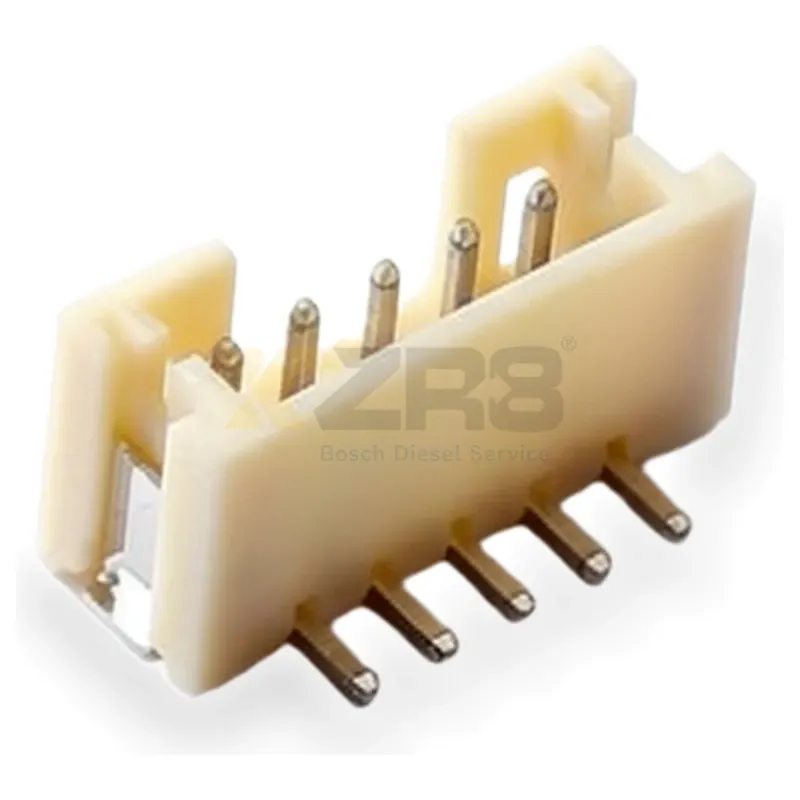

JST B5B-PH-SM4-TB(LF)(SN) PH Series 5-Pin 2mm Pitch Surface Mount Header Connector
| Series | PH Series |
| Connector Type | Line-to-board connector |
| Contact Type | Male plug pin |
| Needle Count | 5 |
| Cylinder Number | 1 |
| Spacing | 2.00mm |
| Installation Type | Surface Mount Device (SMD) |
| Termination Method | Welding |
| Rated Current | 2A |
| Voltage | 100V |
| Operating Temperature | -25℃~+85℃ |
| Material | Copper Alloy |
| Surface Treatment | Tin |
| Insulation Color | Polyamide |
| Locking Device | Yes |
| Installation Height | 8.0mm |
| Width | 4.5mm |
Manufacturer No.
B5B-PH-SM4-TBB5B-PH-SM4-TB(LF)(SN)
Interchange No.
B5B-PH-SM4-TBT(LF)(SN)
Electrical And Electronic Systems - Industrial Encyclopedia
JST B5B-PH-SM4-TB is a PH series line-to-board connector with surface mount (SMD) packaging, 5-pin single row design, 2.00mm pitch. Rated current 2A, rated voltage 100V, operating temperature range -25℃ to +85℃. Suitable for high-density internal wiring and PCB connection, widely used in consumer electronics, industrial control and automotive electronics fields. Original stock supply, providing data sheets and 3D models.
