What are the technical specifications of jst-phdr-10vs-connector-housing?

Key technical specifications of JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector: series: PHD; product_type: Socket housing; pin_count: 10; cylinder_number: 2; spacing: 2.0mm; rated_current: 3A.

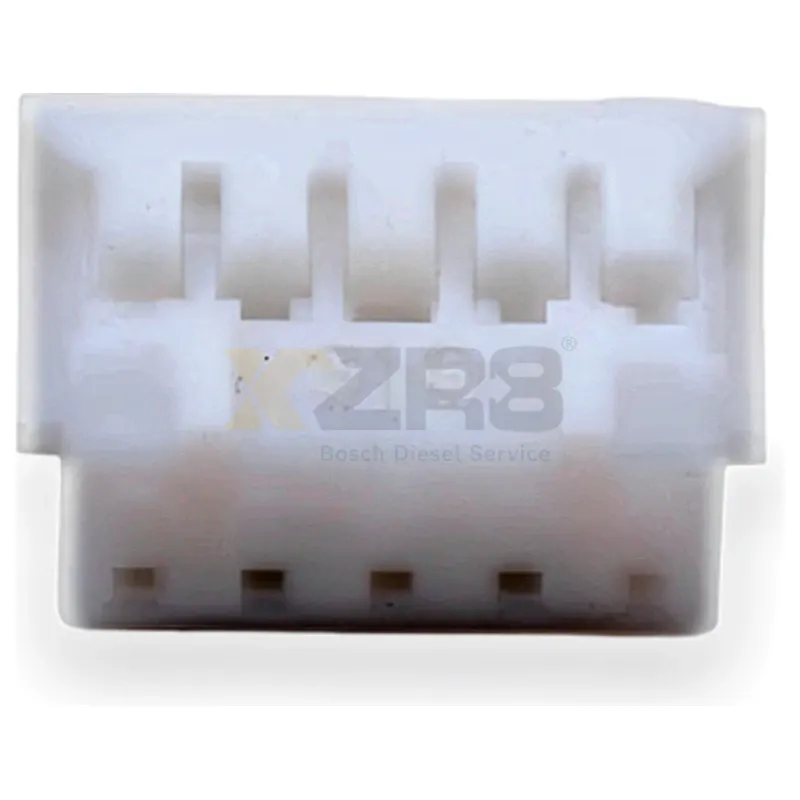

JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector - Image 1

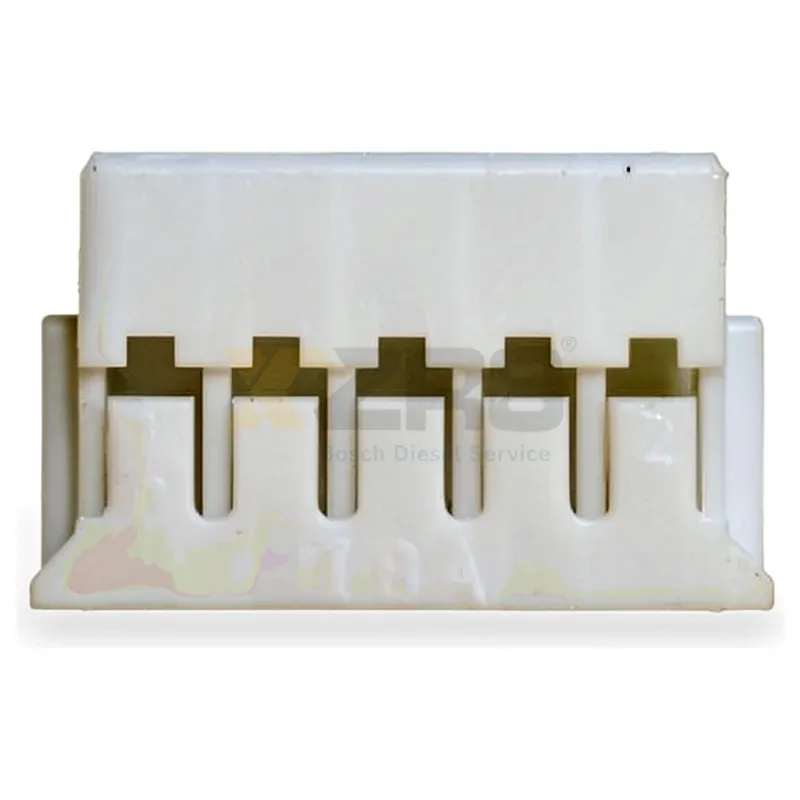

JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector - Image 2

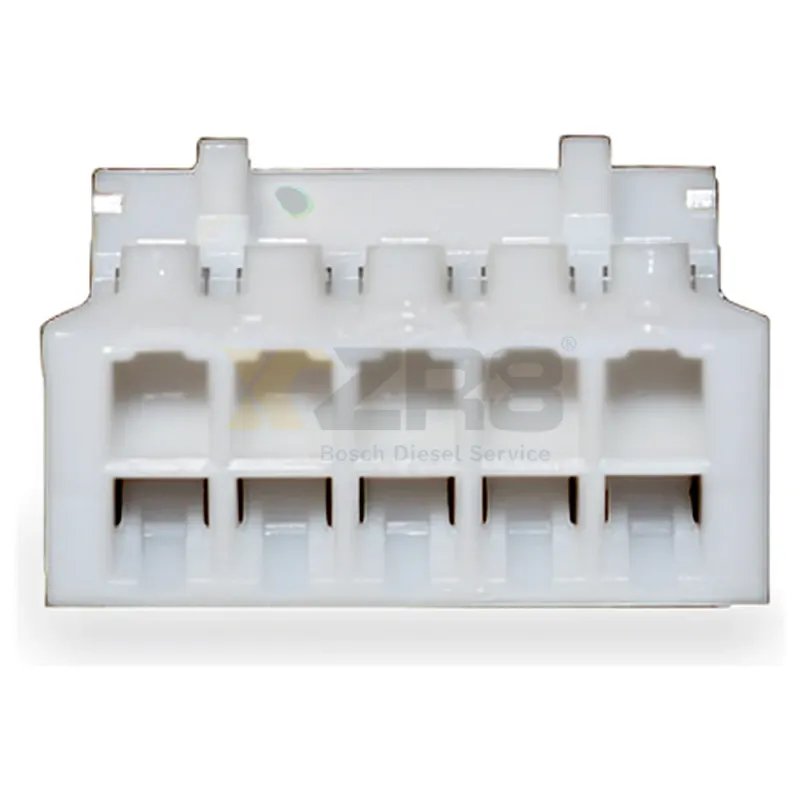

JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector - Image 3

1 / 4

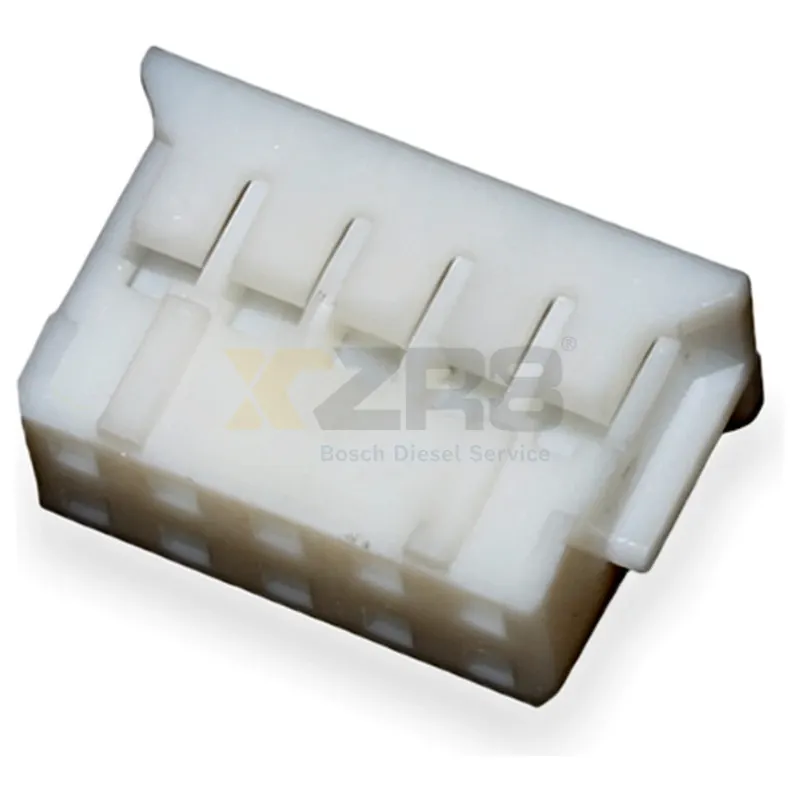

JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector

Q: What are the OEM and cross-reference part numbers for PHDR-10VS?

The OEM and interchange cross-reference numbers for JST PHDR-10VS PHD Series 10-Pin 2.0mm Pitch Double Row Socket Shell Connector include: A2004H-210-N0NA-A, SCT2004H-2x05BWT112.

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Series	PHD
Product Type	Socket housing
Pin Count	10
Cylinder Number	2
Spacing	2.0mm
Rated Current	3A
Voltage	250V
Resistance	800VAC
Temperature Resistance	1000MΩ
Material	PA66
Fire Resistance Grade	UL94V-0
Color	Natural white
Operating Temperature	-25°C ~ +85°C
Applicable Terminal	SPHD Series
Wire Gauge	28-22 AWG
Installation	Free suspension, press fit

Manufacturer No.

PHDR-10VS

Interchange No.

A2004H-210-N0NA-ASCT2004H-2x05BWT112

Electrical And Electronic Systems - Industrial Encyclopedia

JST PHDR-10VS is a 10-pin socket shell of the PHD series, made of PA66 material, with UL94V-0 flame retardant grade, natural white. The pitch is 2.0mm, with a double row design, suitable for wire-to-board connections. Rated current is 3A, withstanding 800VAC voltage. Widely used in electronic, automation and transportation industries. In stock supply, custom wiring harness supported.
