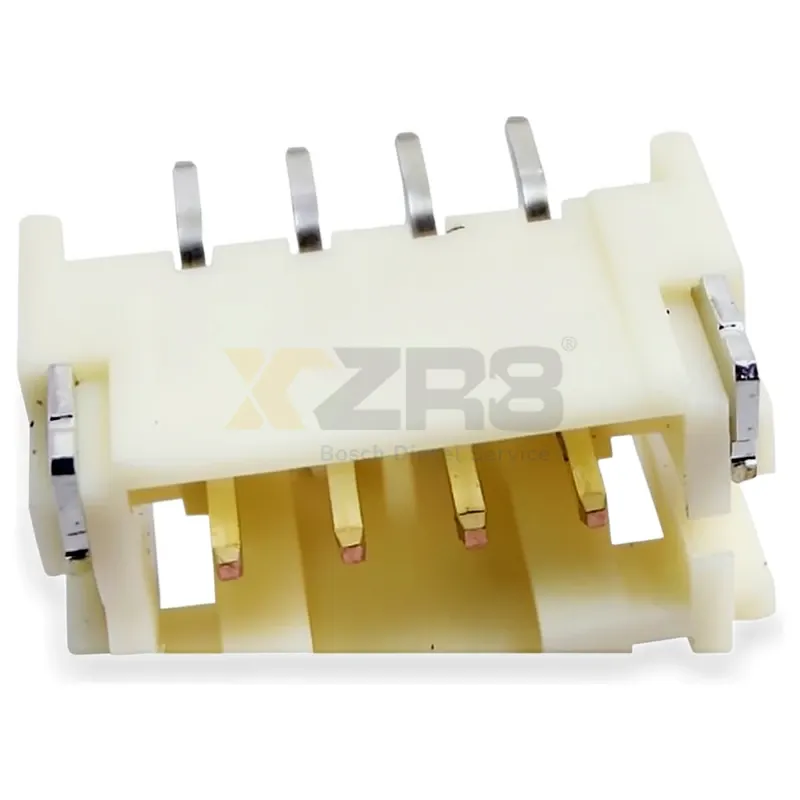

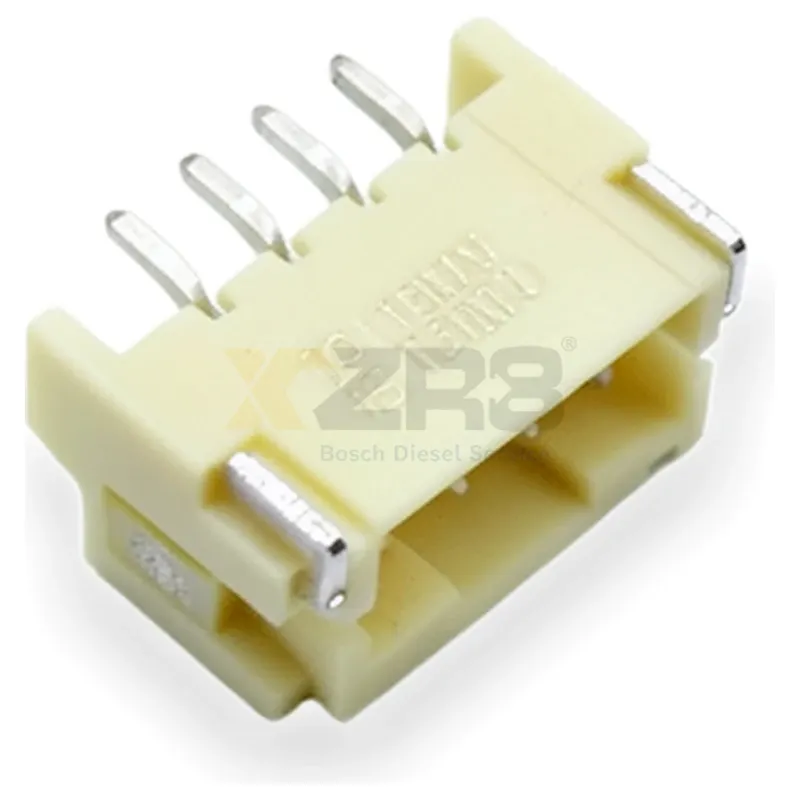

JST S4B-PH-SM4-TB(LF)(SN) Line to Board Connector, Pin Header, 4 Pins, 2mm Pitch, SMT Right Angle
VIEW PRICELog in to view your customer price
| Connector Type | Pin Header with Shield |
| Pin Count | 4 |
| Cylinder Number | 1 |
| Spacing | 2.00mm |
| Installation Type | Surface Mount, Right Angle |
| Contact Type | Square Pin |
| Contact Coating | Tin |
| Rated Current | 2A |
| Voltage | 100V |
| Operating Temperature | -25°C ~ +85°C |
| Series | PH |
| Applications | Wire-to-Board |
Manufacturer No.
S4B-PH-SM4-TBS4B-PH-SM4-TB(LF)(SN)
Interchange No.
SCT2001WRS-04E1BE102
Electrical and Electronic System - Industrial Encyclopedia
JST S4B-PH-SM4-TB is a PH series line to board connector with 4-position single row, 2.0mm pitch, surface mount right angle installation. Rated current 2A, rated voltage 100V, operating temperature -25°C to +85°C, tin-plated contacts. Suitable for compact line to board interconnect applications in consumer electronics, industrial control, etc. In stock, providing data sheets and CAD models.
