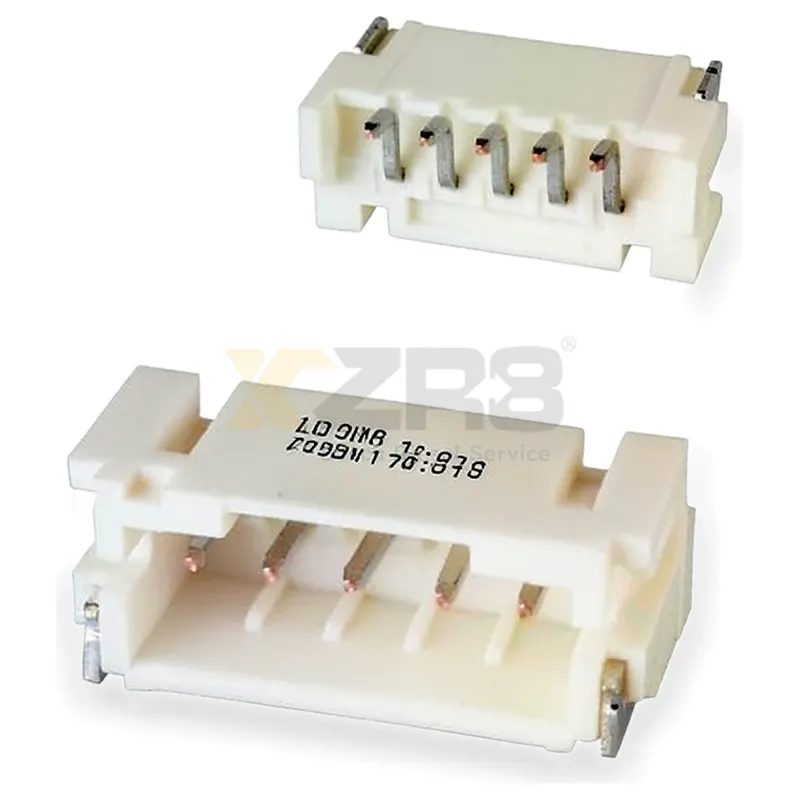

JST S5B-PH-SM4-TB(LF)(SN) PH Series 5-Pin Side Entry SMT Header Connector
| Series | PH |
| Product Type | Header Pin |
| Pin Count | 5 |
| Spacing | 2.0mm |
| Installation | Surface Mount Technology (SMT), Right Angle Side Insert |
| Voltage | 100V |
| Rated Current | 2A |
| Operating Temperature | -25°C to +85°C |
| Material | Copper Alloy |
| Contact Plating | Tin (SN) |
| Shell | Natural Color (Ivory White) |
| Lead-Free | Yes (LF) |
| Rohs Compliance | Compliant with RoHS2 |
Manufacturer No.
S5B-PH-SM4-TB(LF)(SN)S5B-PH-SM4-TB
Electrical And Electronic Systems - Industrial Encyclopedia
JST S5B-PH-SM4-TB(LF)(SN) is a PH series line board connector produced by Japan Solderless Terminal Manufacturing Co., Ltd. (JST), featuring a 5-pin side entry SMT header with a pitch of 2.0mm, rated voltage of 100V, and rated current of 2A. It operates at temperatures from -25 to +85℃. The product is made with lead-free (LF) and tin-plated (SN) processes, complies with RoHS2 standards, and is suitable for high-density and reliable connections in industrial automation, automotive electronics, and consumer electronics fields.
