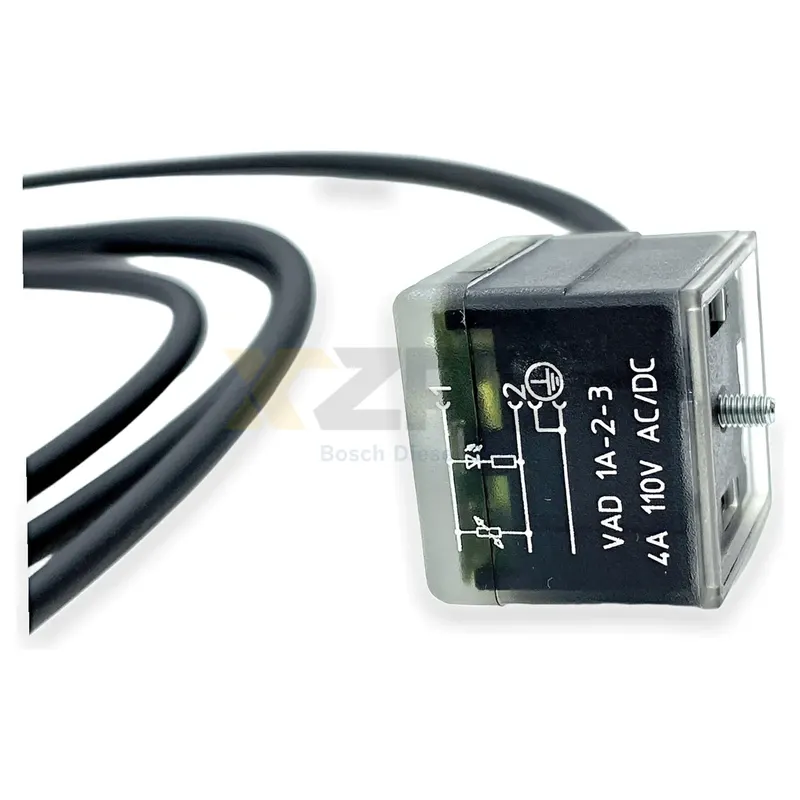

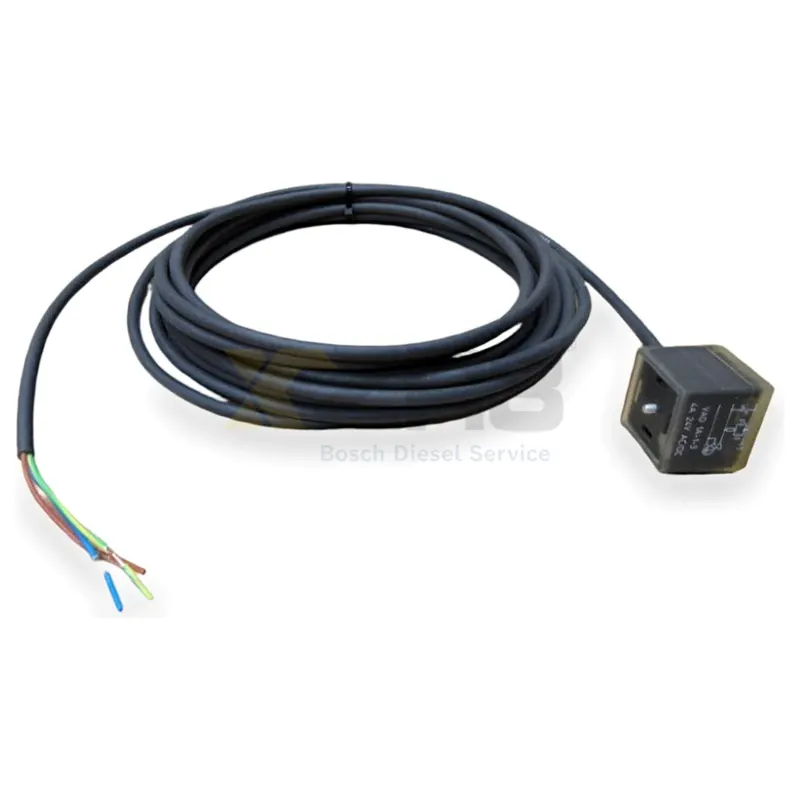

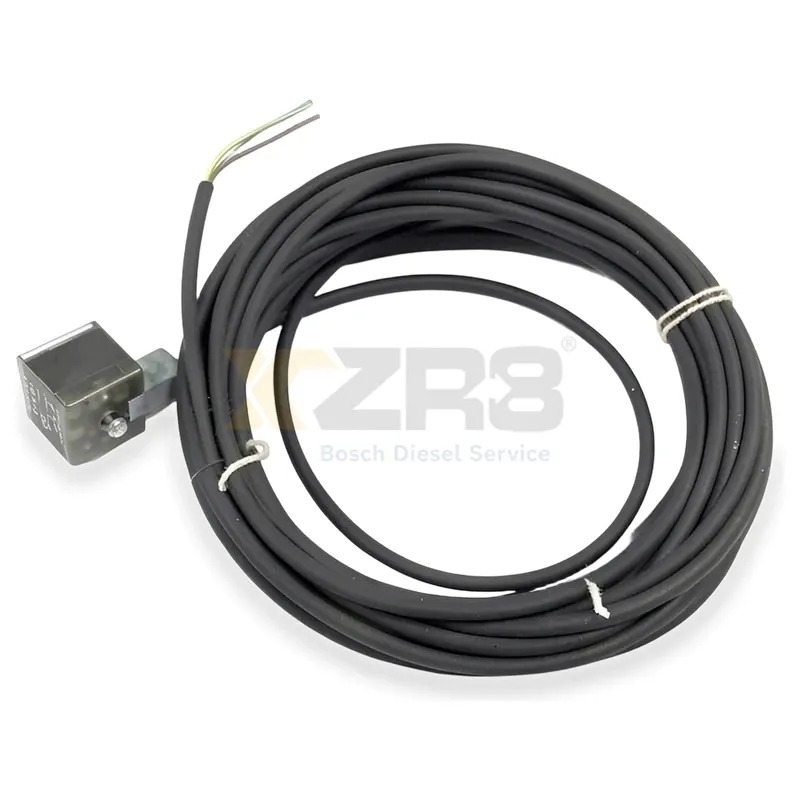

Lumberg Automation VAD 1A-1-3-226/5M Sensor Cable with LED and Pressure-Sensitive Resistor, 5M
VIEW PRICELog in to view your customer price
| Product Type | Single-ended actuator/sensor cable |
| Connector Type | DIN Valve Connector, Compliant with DIN EN 175301-803, Form A |
| Connector Direction | Bend angle 90° |
| Pin Count | 3（2+PE） |
| Voltage | 24V AC/DC |
| Rated Current | 4A |
| Protection Rating | IP67 |
| Cable Length | 5 meters |
| Cable Sheath Material | Halogen-free PUR, black |
| Contact Material | CuZn (Copper-Zinc Alloy) |
| Shell Material | TPU, self-extinguishing |
| LED Indicator | Yellow LED |
| Protection Component | Pressure-sensitive resistor |
| Wire Diameter | 0.50 mm² |
| Operating Temperature | -10°C to +60°C |
Manufacturer No.
VAD 1A-1-3-226/5MVAD1A-1-3-226/5M12138
Interchange No.
RST 5-3-VAD 1A-1-3-226/5M237712
Electrical and Electronic System - Industrial Encyclopedia
Original Lumberg Automation VAD 1A-1-3-226/5M sensor/actuator cable, single-ended connection, with DIN valve connector (compliant with DIN EN 175301-803, Form A), built-in yellow LED indicator and pressure-sensitive resistor protection. Made with halogen-free PUR black sheath, CuZn contact, TPU molded shell, self-extinguishing material. Rated voltage 24V AC/DC, current 4A, protection class IP67. Cable length 5 meters, 3 cores (2+PE), wire diameter 0.50 mm². Suitable for industrial automation, sensor/actuator connection.
