What are the OEM and cross-reference part numbers for M47400?

The OEM and interchange cross-reference numbers for John Deere M47400 Extension Spring include: M47400, AM136645.

What are the technical specifications of m47400-john-deere-extension-spring?

Key technical specifications of John Deere M47400 Extension Spring: fitting_end_type: 05/05; wire_diameter: 3.06 mm; external_diameter: 28.47 mm; length: 172.21 mm; return_rate: 1.483 N/mm; opening_pressure: 17.0 LBF.

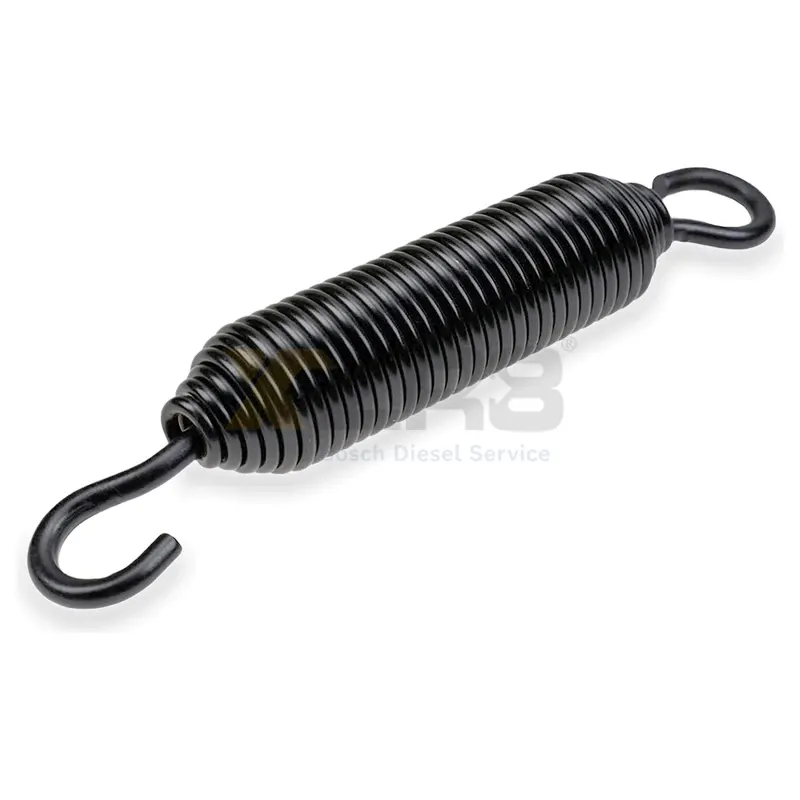

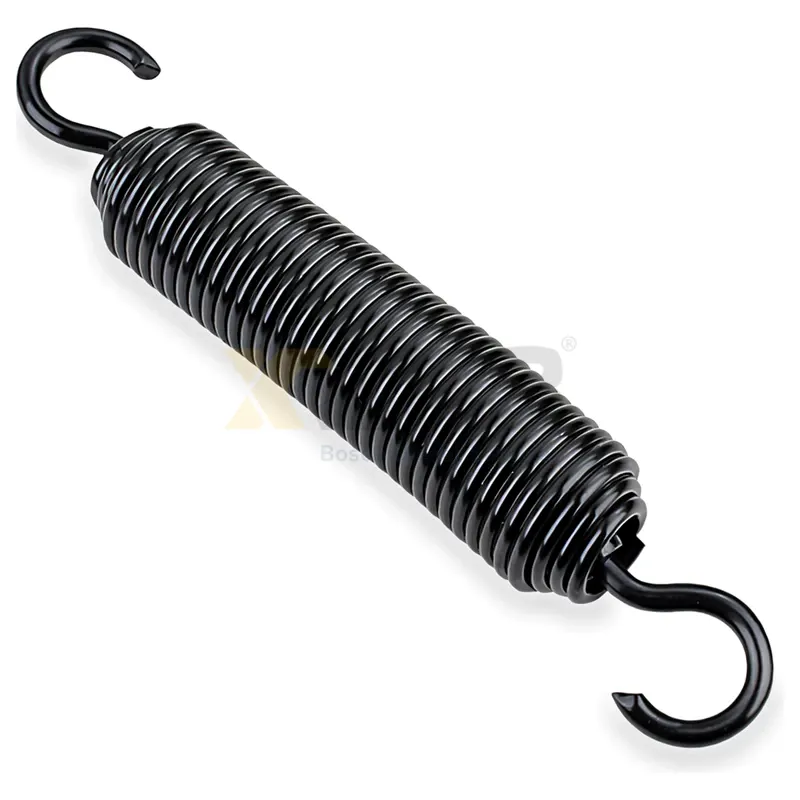

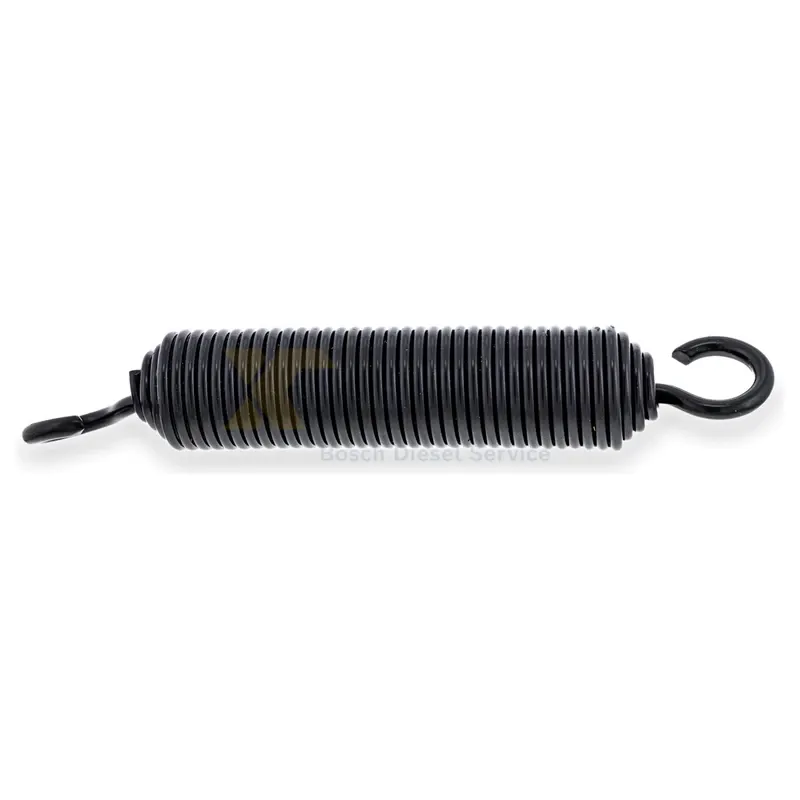

John Deere M47400 Extension Spring - Image 1

John Deere M47400 Extension Spring - Image 2

1 / 3

John Deere M47400 Extension Spring

Q: Which equipment and machinery is m47400-john-deere-extension-spring compatible with?

John Deere M47400 Extension Spring (m47400-john-deere-extension-spring) is compatible with: John Deere 325, John Deere 335, John Deere 345, John Deere 355D, John Deere GT225, John Deere GT235, John Deere GT242, John Deere GT262, John Deere GT275, John Deere GX325.

Express Free Shipping

3-Year Factory Warranty

90-Day Hassle-Free Returns

24/7 Dedicated Support

Fitting End Type	05/05
Wire Diameter	3.06 mm
External Diameter	28.47 mm
Length	172.21 mm
Return Rate	1.483 N/mm
Opening Pressure	17.0 LBF
Coil Included	41
Material	Steel Alloy (A15-2)
Finish	B
Spring Type	Extension Spring
Applications	Belt Tightener Tension Spring

Manufacturer No.

M47400

OEM Part No.

M47400AM136645

Interchange No.

AM136645

Fitment Vehicles

John Deere 325John Deere 335John Deere 345John Deere 355DJohn Deere GT225John Deere GT235John Deere GT242John Deere GT262John Deere GT275John Deere GX325John Deere GX335John Deere GX345John Deere GX355John Deere LX172John Deere LX173John Deere LX176John Deere LX178John Deere LX186John Deere LX188John Deere LX280John Deere X300RJohn Deere X324

Power Transmission And Drive Systems - Industrial Encyclopedia

OEM extension spring M47400 for John Deere lawn and garden tractors, 3.06 mm wire diameter, 172.21 mm free length, 1.483 N/mm spring rate, steel alloy construction.
