Which equipment and machinery is molex-33472-2001-mx150-connector compatible with?

Molex 33472-2001 MX150 20-pin Double Row Sealed Connector - Automotive Waterproof Connector (molex-33472-2001-mx150-connector) is compatible with: Engine Compartment, Chassis, Exterior Lighting.

What are the technical specifications of molex-33472-2001-mx150-connector?

Key technical specifications of Molex 33472-2001 MX150 20-pin Double Row Sealed Connector - Automotive Waterproof Connector: series: MX150 33472; connector_type: Female connector; pin_count: 20; cylinder_number: Double Row; circuit_application: 2x10; polarization: Type A.

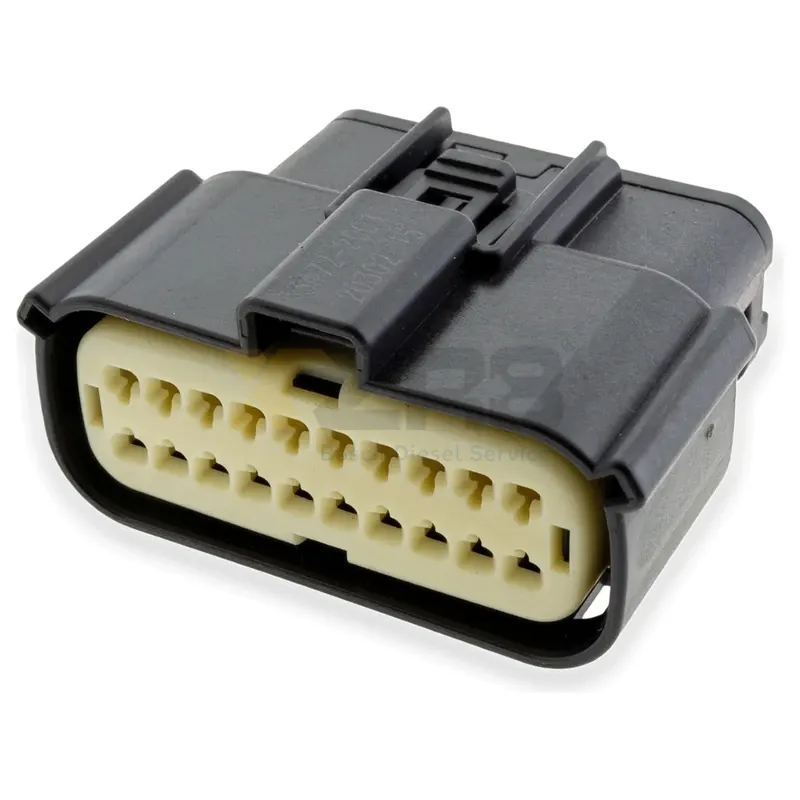

Molex 33472-2001 MX150 20-pin Double Row Sealed Connector - Automotive Waterproof Connector - Image 1

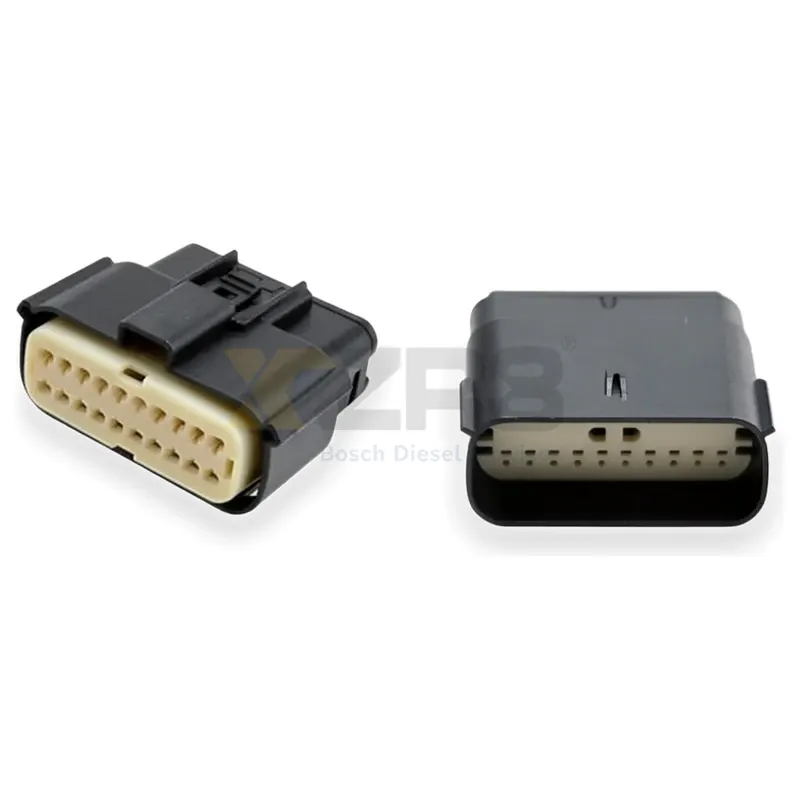

Molex 33472-2001 MX150 20-pin Double Row Sealed Connector - Automotive Waterproof Connector - Image 2

1 / 3

Molex 33472-2001 MX150 20-pin Double Row Sealed Connector - Automotive Waterproof Connector

Express Free Shipping 3-Year Factory Warranty 90-Day Hassle-Free Returns 24/7 Dedicated Support

Series	MX150 33472
Connector Type	Female connector
Pin Count	20
Cylinder Number	Double Row
Circuit Application	2x10
Polarization	Type A
Has Cpa	No
Color	Black
Installation	Free Hanging (In-Line)
Wire Gauge	22-14 AWG
Rated Current	22A
Protection Rating	Sealed (IP67)
Operating Temperature	-40°C to +125°C
Material	Thermoplastic
Spacing	3.5mm

Manufacturer No.

33472-20010334722001

Fitment Vehicles

Engine CompartmentChassisExterior Lighting

Fasteners Seals And Consumables - Industrial Encyclopedia

Molex 33472-2001 MX150 series automotive connectors, 20-position double row socket, polarized type A, no CPA, black housing, suitable for 22-14 AWG wire diameter, rated current 22A, protection level IP67, designed for engine compartment and harsh external environments. Original genuine, in stock supply.
