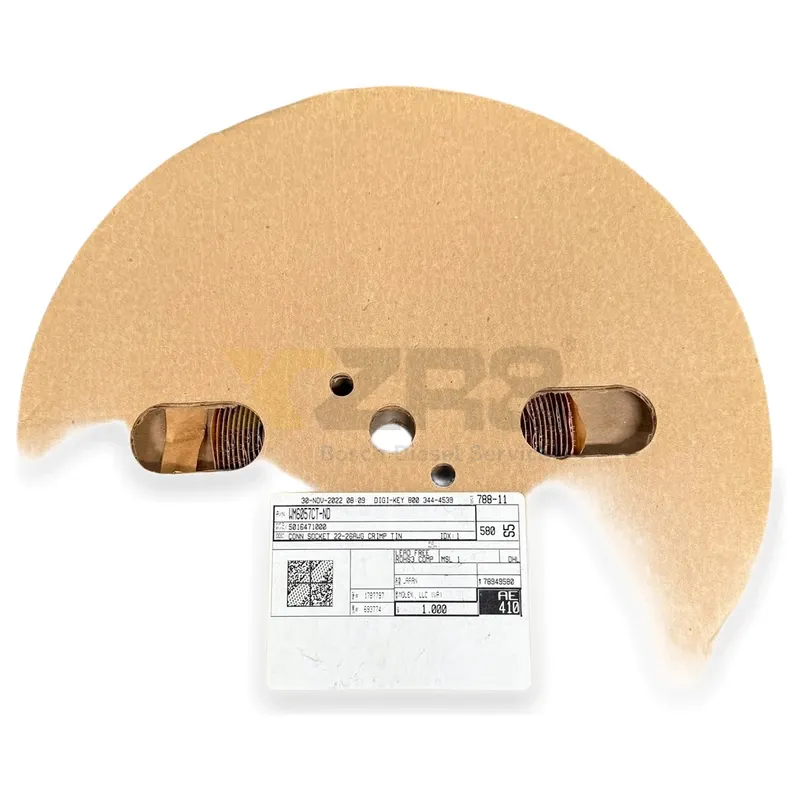

Molex 501647-1000 iGrid 2.00mm Female Crimp Terminal 22-26AWG Tin Wired Spool
VIEW PRICELog in to view your customer price
| Series | iGrid |
| Connector Type | Female Terminal Soldering Terminal |
| Spacing | 2.00mm |
| Applicable Line Diameter | 22-26 AWG |
| Coating | Tin Plated |
| Contact Material | Copper Alloy |
| Rated Current | 2A |
| Voltage | 250V AC/DC |
| Maximum Working Temperature | +105°C |
| Packaging Method | Coiled |
| Compliance | RoHS, REACH, Low halogen |
| Fitting Nozzle Seat | 501645 (vertical), 501676 (right angle) |
| Maximum Insertion and Extraction Times | 30 times |
Manufacturer No.
501647-1000
Electrical and Electronic System - Industrial Encyclopedia
Molex 501647-1000 is an iGrid series female crimp terminal with a pitch of 2.00mm, suitable for 22-26AWG wire diameter, tin-plated copper alloy material, compliant with RoHS and REACH standards. This terminal is compatible with 501645 vertical socket and 501676 right-angled socket, providing reliable wire-to-board connections, widely used in industrial equipment, household appliances, game consoles, and other fields. Maximum operating temperature +105°C, rated current 2A, rated voltage 250V AC/DC. Original genuine product, available for loose spool supply.
