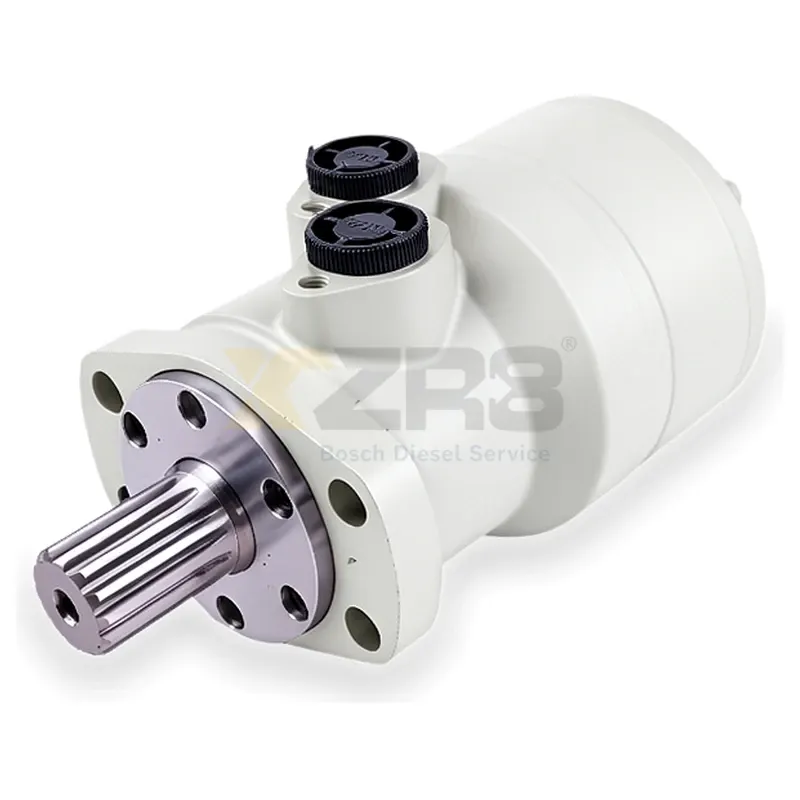

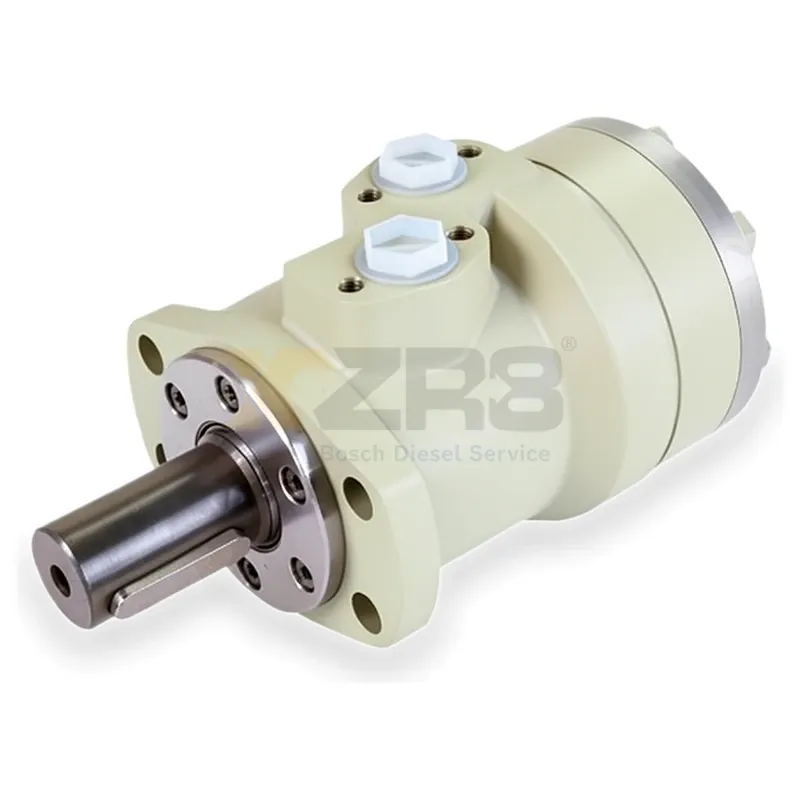

Danfoss 151H1084 OMH400 Hydraulic Orbital Motor
Express Free Shipping
3-Year Factory Warranty
90-Day Hassle-Free Returns
24/7 Dedicated Support
| Displacement | 396.8 cm³/rev |
| Recommended Displacement | 400 cc/rev |
| Max Continuous Speed | 185 rpm |
| Max RPM Limit | 225 rpm |
| Max Torque | 840 Nm |
| Peak Torque | 980 Nm |
| Maximum Continuous Pressure | 275 bar |
| Maximum Peak Pressure | 295 bar |
| Maximum Flow Rate | 75 L/min |
| Mounting Flange | A4 (4-hole magneto, 82.5 mm centering) |
| Output Shaft Type | 1-inch SAE 6B splined (14T, 31.75 mm) |
| Tap Drill Size | 1/4-20 UNC |
| Port Configuration | G1/2 BSPP side ports |
| oil_drain_port | G1/4 BSPP |
| Valve Type | Integrated spool valve |
| Gear Configuration | Gerotor with rollers |
| Rotation Direction | Bi-directional |
| weight_kg | 12.3 kg |
Manufacturer No.
151H1084151H-1084OMH400-151H-1084OMH400151H1084OMH-400-151H-1084
OEM Part No.
151H1084
Interchange No.
104-3699-006S.137222DAN-151H108461258-000
Hydraulic Systems - Industrial Encyclopedia
OEM specification 400cc low-speed high-torque orbital hydraulic motor with 1-inch SAE 6B splined shaft, A4 flange, 275 bar continuous pressure rating for industrial and mobile systems.
