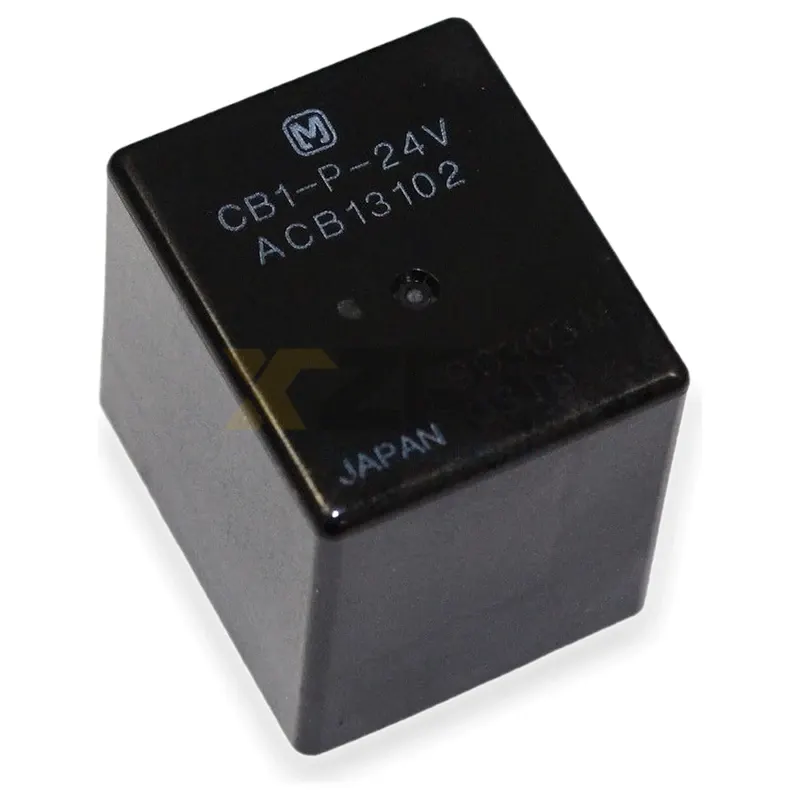

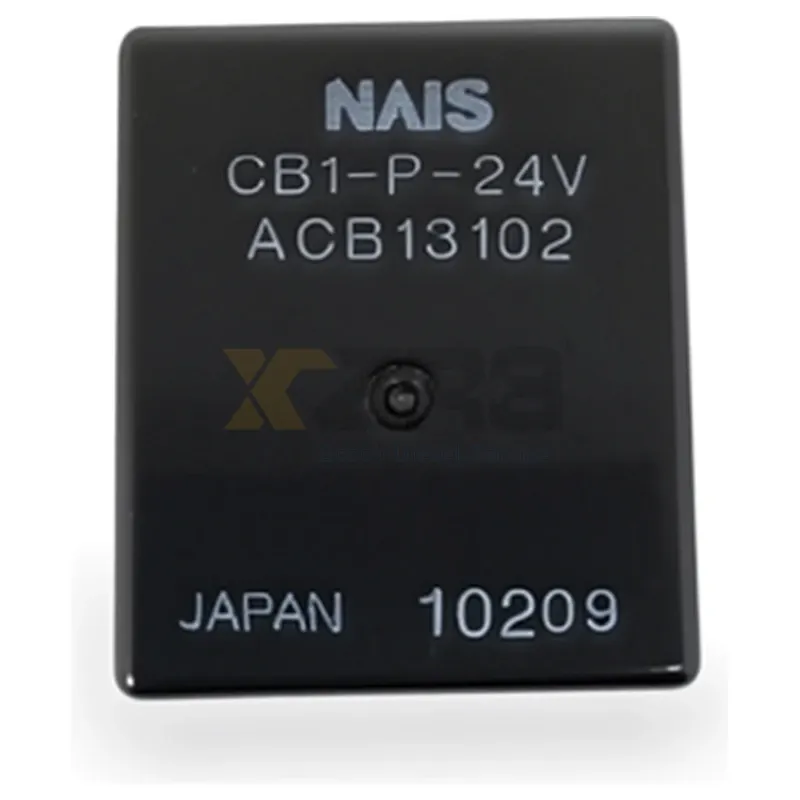

Panasonic CB1-P-24V Car Relay 24V 20A SPDT Mini ISO
| Voltage | 24VDC |
| Contact Number | SPDT（1 Form C） |
| Rated Current | 20A |
| Maximum Supply Voltage | 28VDC |
| Material | Silver Cadmium |
| Installation | PCB installation |
| Terminal Size | Mini ISO |
| Dimensions | 22 x 26 mm |
| Connector Type | 5 |
| Coil Resistance | 320 Ω |
| Action Time | 15 ms |
| Electrical Life | 50,000 cycles |
Manufacturer No.
CB1-P-24V
Fitment Vehicles
HeadlightMotorAir ConditioningABSEPSConstruction EquipmentAgricultural Equipment
Electrical And Electronic Systems - Industrial Encyclopedia
Original Panasonic CB1-P-24V car relay with mini ISO terminal layout, SPDT (1 Form C) contact form, coil voltage 24VDC, rated current 20A, maximum switching voltage 28VDC. Suitable for automotive headlights, motors, air conditioning, ABS, EPS and other systems, as well as construction machinery, agricultural equipment, etc. Compact size 22x26mm, PCB mounted, high reliability.
